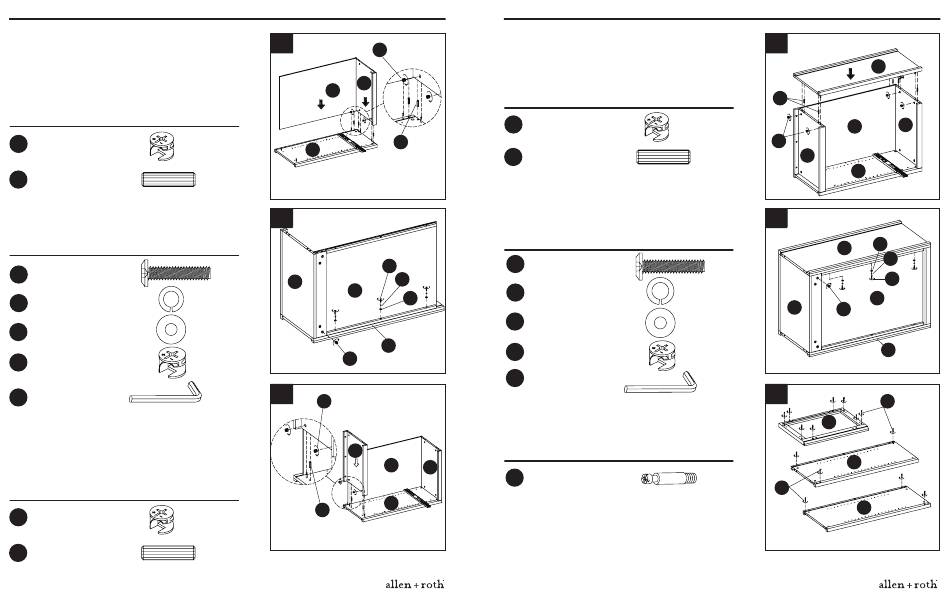

ASSEMBLY INSTRUCTIONS
4. Attach base panel right (I) to assembly using large
wood dowels (HH) and large cam locks (DD).
Note: Make sure previously inserted medium cam bolts
(EE) are completely seated.
Hardware Used
DD
Large Cam Lock
HH
Large Wood Dowel
5. From the back of the assembly, attach base panel
right (I) to base panel back (K) using flat washers (CC),
lock washers (BB), bolts (AA) and large cam locks (DD).
Tighten with Allen wrench (WW).
Hardware Used
AA
Bolt
BB Lock Washer
CC Flat Washer
DD Large Cam Lock
Allen Wrench
WW
6. Fit base panel back (K) into slot of base panel bottom
(L), then attach base panel bottom (L) to assembly using
large wood dowels (HH) and large cam locks (DD).
Note: Make sure previously inserted medium cam bolts
(EE) are completely seated.
Hardware Used
DD Large Cam Lock
HH
Large Wood Dowel
4
DD
J
K
x 2
I
x 3
5
AA
Back Side
x 3
J
K
x 3
x 3
I
DD
x 1
6
x 1
DD
L
K
I
HH
x 2
x 2
Lowes.com/allenandroth
8
ASSEMBLY INSTRUCTIONS
7. Attach base panel left (H) to assembly using large
wood dowels (HH) and large cam locks (DD).
Note: Make sure previously inserted medium cam bolts
(EE) are completely seated.
Hardware Used
DD Large Cam Lock
HH
HH
Large Wood Dowel
8. From the back of the assembly, attach base panel left
(H) to base panel back (K) using flat washers (CC), lock
washers (BB), bolts (AA) and large cam locks (DD).
Tighten with Allen wrench (WW).
Hardware Used
AA
Bolt
BB
BB
Lock Washer
CC
CC
Flat Washer
DD
Large Cam Lock
WW
Allen Wrench
Hutch Assembly
9. Insert medium cam bolts (EE) into hutch panel left (A),
hutch panel right (B) and hutch panel top (C).
Hardware Used
J
EE
Medium Cam Bolt
7
H
HH
x 4
K
DD
x 5 L
I
8
AA
H
BB
x 3
CC
x 3
K
J
DD
Back Side
x 3
I
x 1
x 1
9
EE
C
A
x 14
EE
B
Lowes.com/allenandroth
9
