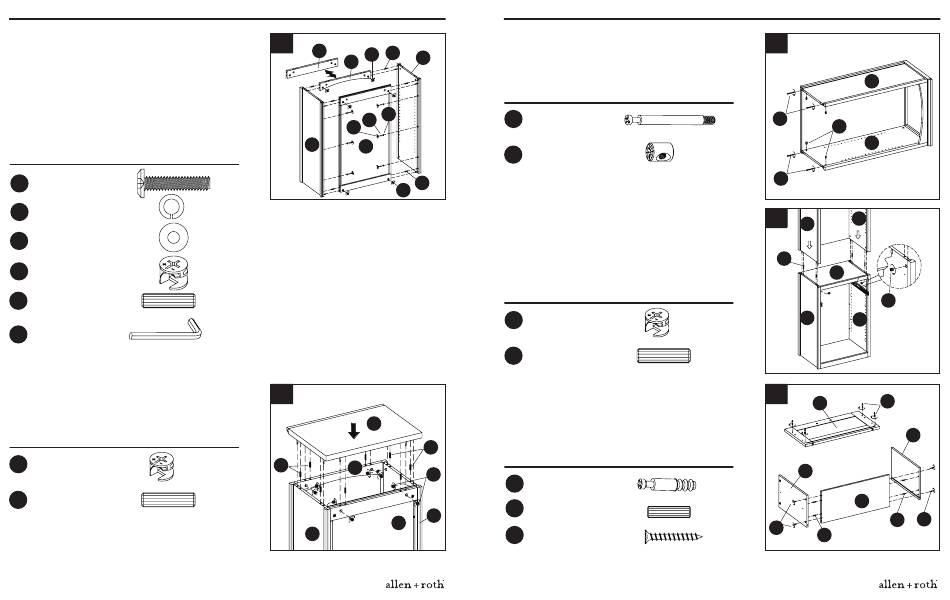

ASSEMBLY INSTRUCTIONS
10. Attach hutch panel left (A) and hutch panel right (B) to
hutch panel back (D) and either front curved stretcher (E)
or front straight stretcher (F) -- depending on which fits
your closet look -- using large wood dowels (HH) and large
cam locks (DD). From the back of the assembly, use flat
washers (CC), lock washers (BB) and bolts (AA) to secure
unit. Tighten with Allen wrench (WW).
Then, secure assembly with large cam locks (DD).
Note: Make sure previously inserted medium cam bolts
(EE) are completely seated.
Hardware Used
AA
Bolt
BB
Lock Washer
CC
Flat Washer
DD
Large Cam Lock
HH
Large Wood Dowel
Allen Wrench
WW
11. Insert large wood dowels (HH) and large cam locks
(DD) into hutch assembly. Attach hutch panel top (C),
tightening large cam locks (DD) to secure assembly.
Hardware Used
DD
Large Cam Lock
HH
Large Wood Dowel
10
F
HH
DD
E
CC
BB
AA
B
D
Back Side
x 6
x 6
x 6
x 6
x 6
x 1
11
C
x 8
HH
E
x 8
B
Back Side
Lowes.com/allenandroth
10
ASSEMBLY INSTRUCTIONS
12. Carefully rest hutch assembly on its side. Insert
barrel nuts (VV) and large cam bolts (UU) into the
A
bottom of the hutch assembly.
Hardware Used
UU
Large Cam Bolt
VV
Barrel Nut
HH
DD
13. Insert large wood dowels (HH) and large cam locks
(DD) into the base panel top (J). Then, with the help of
another person, attach the hutch assembly to the base
assembly, tightening the large cam locks (DD) to secure
the unit.
Note: Make sure previously inserted large cam bolts (UU)
are completely seated.
Hardware Used
DD
Large Cam Lock
HH
Large Wood Dowel
Drawer Assembly
14. Install small cam bolts (GG) into drawer front (P).
Set aside. Install small wood dowels (II) into drawer
back panel (S), then attach drawer left panel (R) and
drawer right panel (Q) to drawer back panel (S) with
M4 x 25 mm wood screws (LL).
HH
Hardware Used
DD
GG
Small Cam Bolt
II
Small Wood Dowel
A
D
LL
M4 x 25 mm Wood
Screw
12
A
x 4
UU
VV
B
x 4
UU
13
Hutch
B
A
HH
J
DD
Base
H
x 4
I
x 4
14
GG
P
R
x 4
S
x 4
LL
x 4
II
Lowes.com/allenandroth
11
Q
II
LL
