Scope of supply

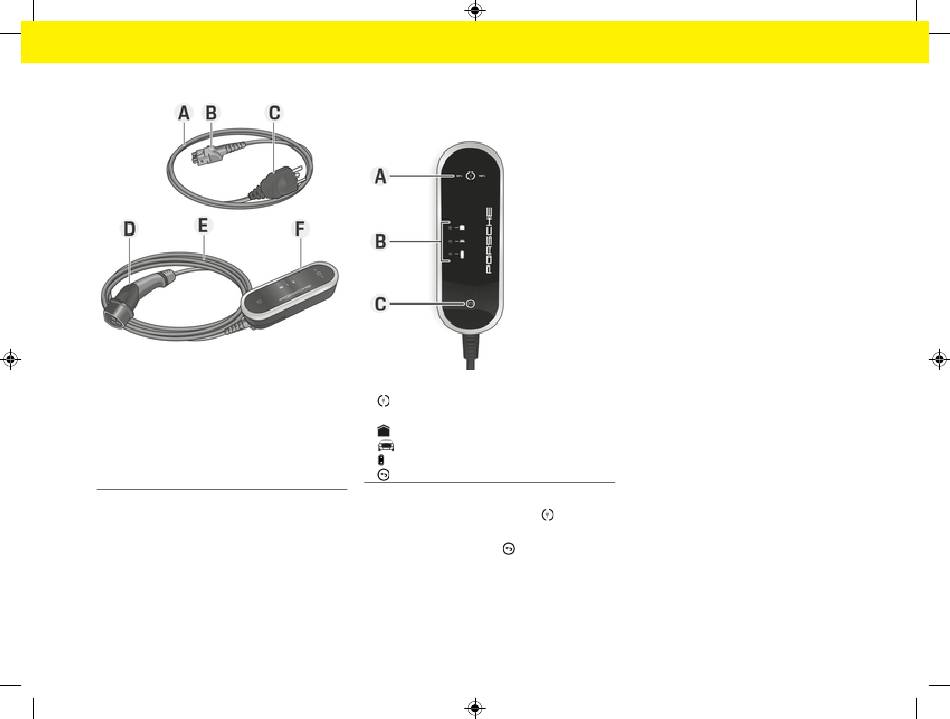

Fig. 1: Charger overview
A
Supply cable (pluggable to control unit)
B
Plug of the supply cable connection on the control
unit
C
Power plug for connecting to the power grid
D
Vehicle plug (connector plug for the vehicle)
E
Vehicle cable (permanently installed on the control
unit)
F
Control unit
Overview
Charger control unit
Fig. 2: Control unit
A
On/Off button with light indicator and additional
charging current limitation function
B
Power grid/house connection light indicator
Vehicle light indicator
Control unit light indicator
C
Reset button with light indicator
The operating state of the control unit and the charge
limit can be set via the On/Off button
The control unit can be reset when a fault current is
detected via the reset button
.
The light indicators A – C (Fig. 2) display the operat-
ing state of the control unit, a set charge limit and
possible faults by means of different colors, lights,
and flashing.
g Refer to chapter "Status displays and error mes-
sages of the control unit" on page 17.
.
Scope of supply
7
