1 Fuel tank bracket
2 Control unit cover
3 Drain hose
4 Grommet
5 Mount base complete
6 Clamp
7 Choke cable
8 Choke knob
9 Cover
å Install the control unit cover only after wiring of the
control unit is complete.
∫ Insert it until its end position.
ç Pass the inner cable through the wiring terminal

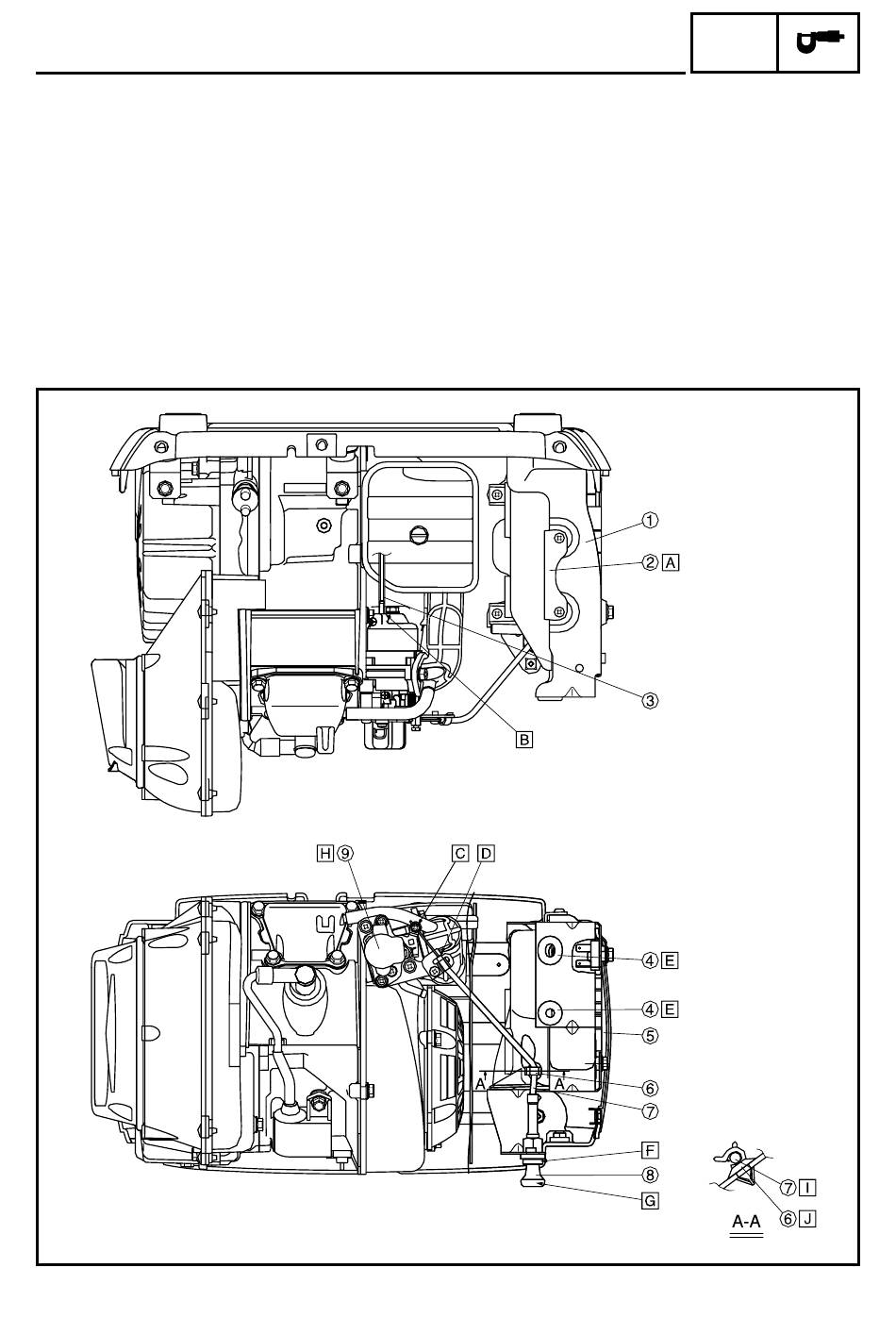

WIRE ROUTING DIAGRAM
hole of the choke shaft with the choke valve of the
carburetor fully opened, and secure it with bolt.
(The choke valve must be fully opened with the
choke knob forced down.)
∂ Push with the choke cable mount base.
´ Install the grommet as shown.
ƒ Make sure the knurled nut of the choke knob does
not move during installation.
© When connecting the choke cable to the carbure-
tor, keep the choke knob fully forced down.
˙ Install the throttle control motor cover only after
wiring of the throttle control motor is complete.
ˆ Insert the choke cable to the bottom of the clamp.
∆ Install the clamp as shown.
7-20
