EC580000

REAR SHOCK ABSORBER

Extent of removal:
Extent of removal
Preparation for removal
1 2
REAR SHOCK ABSORBER

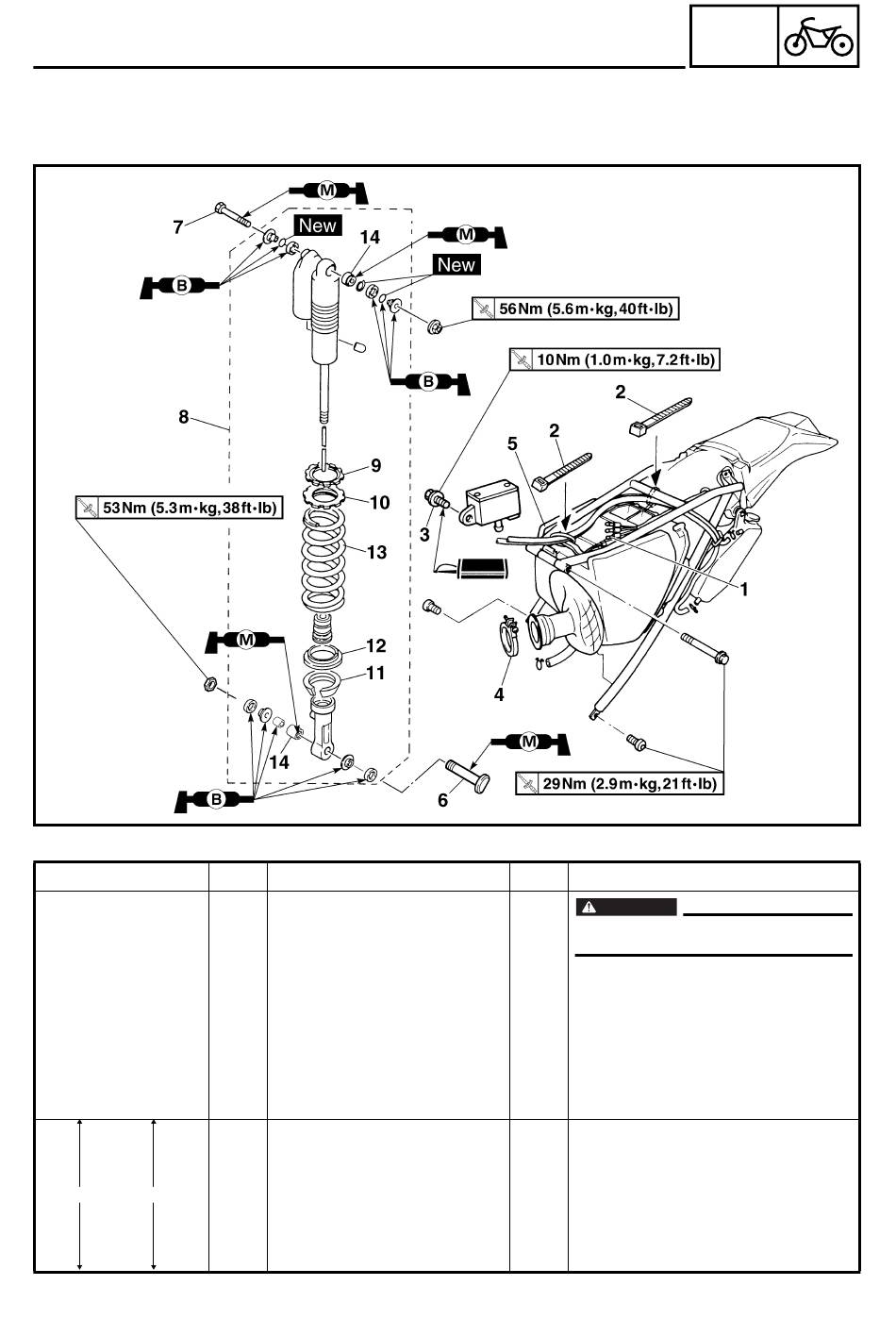

1 Rear shock absorber removal
Order Part name
REAR SHOCK ABSORBER
REMOVAL
Hold the machine by placing the
suitable stand under the engine.
Seat, fitting band and side covers
Silencer
Drain the coolant.
Coolant reservoir tank
1 Tail light connector
2 Band
3 Bolt (reservoir tank)
4 Clamp (air cleaner joint)
5 Rear frame
6 Bolt (rear shock absorber-relay arm)
7 Bolt (rear shock absorber-frame)
8 Rear shock absorber
2 Rear shock absorber disassembly
Q'ty
Support the machine securely so there is no
danger of it falling over.
Refer to "SEAT, FUEL TANK AND SIDE
COVERS" section in the CHAPTER 4.
Refer to "EXHAUST PIPE AND
SILENCER" section in the CHAPTER 4.
Refer to "COOLANT REPLACEMENT"
section in the CHAPTER 3.
Refer to "RADIATOR" section in the
CHAPTER 4.
2
2
1
1 Only loosening.
1
1 Hold the swingarm.
1
1
5 - 60
CHAS
Remarks
WARNING
