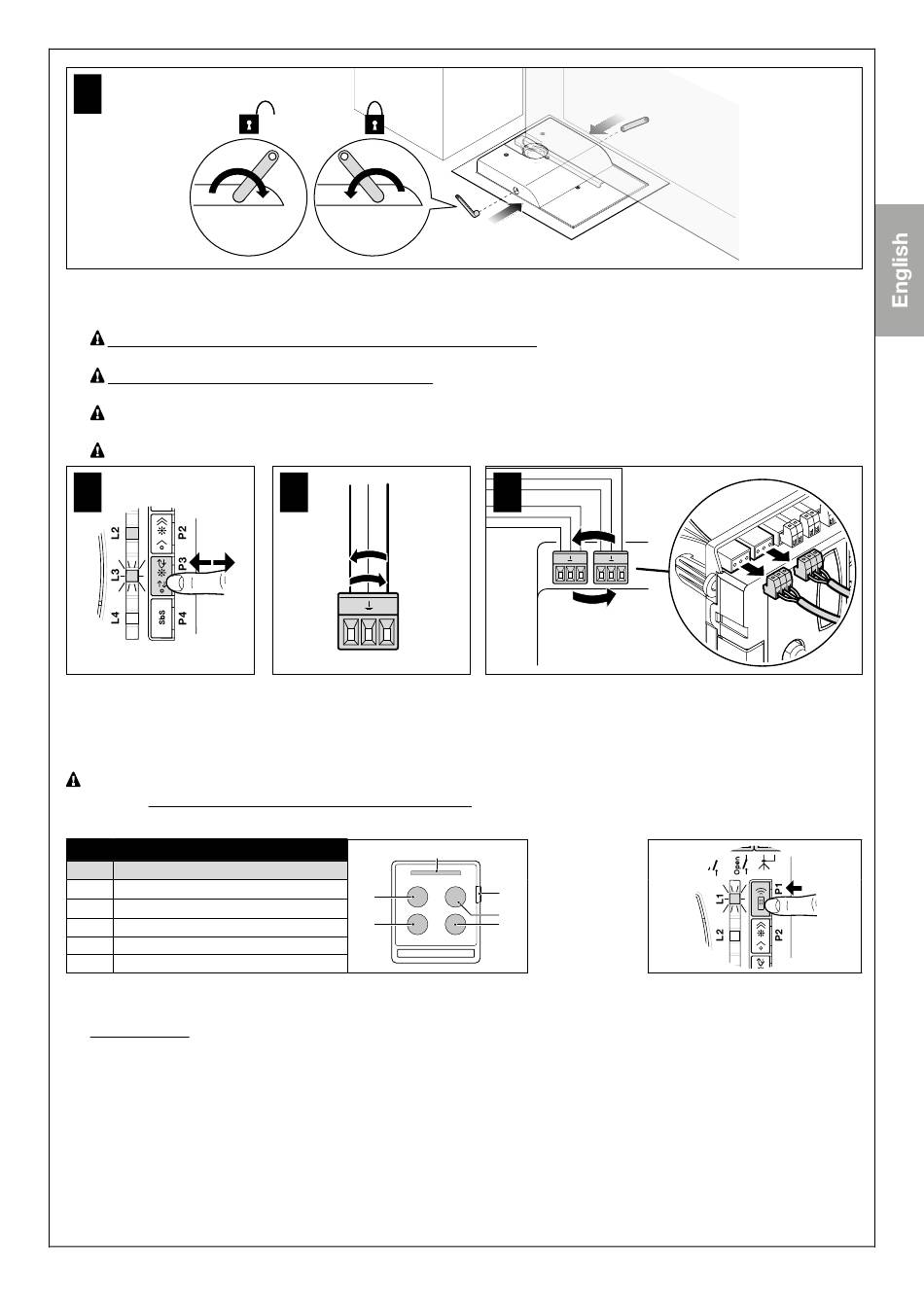

02. On the control unit (Fig. 15) press without releasing key P3 for at least 3 seconds. Release the key when the leaf starts moving: wait for the
control unit to perform the memorisation phase: closure of motor M1 up to the mechanical stop, closure of motor M2 up to the mechanical stop,
opening of motor M2 and of motor M1 up to the mechanical opening stop; full closure of M1 and M2.
If the first manoeuvre of one or both of the gate leaves is not a closing movement, press and release key P3 on the control unit (Fig. 15) to stop
the memorisation phase and reverse the polarity of the motor/s that performed the opening, by inverting the brown and blue wires (Fig. 16).
If the first motor to perform the closing manoeuvre is not M1, press and release key P3 on the control unit (Fig. 15) to stop the memorisation
phase and invert the motor terminals on the control unit (Fig. 17).
If any device (photocells, manual pressing of key P3, etc.) intervenes during the memorisation phase, this phase will be immediately stopped: it
will have to be repeated entirely.
If led L3 flashes at the end of memorising the opening angles, it means that there is an error: see Par. 9.10.3.
15
5.6 - MEMORISATION OF THE 1
The control unit incorporates a radio receiver for ECCO5 transmitters (various models): before proceeding with the remaining steps, it is necessary to
memorise the 1 st transmitter in Mode 1 – see procedure below.
To memorise additional transmitters, see Par. 9.3.
Before running the memorisation procedure, it is advisable to read it and observe the indicated times.
This procedure allows for simultaneously memorising all the transmitter keys, by automatically pairing them to the commands shown in Table 3 below.
A transmitter memorised in Mode 1 can control only a single automation.
TABLE 3
Keys Paired command
T1 Step-by-Step (SbS)
T2 Pedestrian opening
T3 Open only
T4 Close only
T5 Courtesy light ON-OFF
Memorisation procedure
01. On the control unit (Fig. 18) press and hold key P1 for 3 seconds; when led L1 switches on, release the key.
02. Within 10 seconds from releasing it, press and hold for 3 seconds any button of the transmitter to be memorised.
If the memorisation procedure was successful, led L1 (on the control unit) will flash 3 times.
03. To memorise other transmitters, repeat step 02 within the next 10 seconds otherwise the memorisation phase will terminate automatically.

5.7 - BASIC ADJUSTMENTS

5.7.1 - Choosing the gate leaf manoeuvre speed

The opening and closing manoeuvre speed of the gate leaves can be either "slow" or "fast" (the type of selection chosen is visualised by the switching
on or off of led L2 on the control unit – Fig. 19):
led L2 off = the "slow" manoeuvre speed was selected.
led L2 on = the "fast" manoeuvre speed was selected.
Procedure for selecting the desired speed
01. Press and release key P2 several times until led L2 remains lit or switched off (Fig. 19).
180°
16
blu
marrone
M M
st
TRANSMITTER
LED
T1
T3
17
M M M M
T5
T2
T4
