5.3 - MEMORISATION OF CONNECTED DEVICES

On completion of the preliminary checks (Par. 5.2), the control unit must be made to recognise the devices connected on the ECSbus and Stop
terminals.

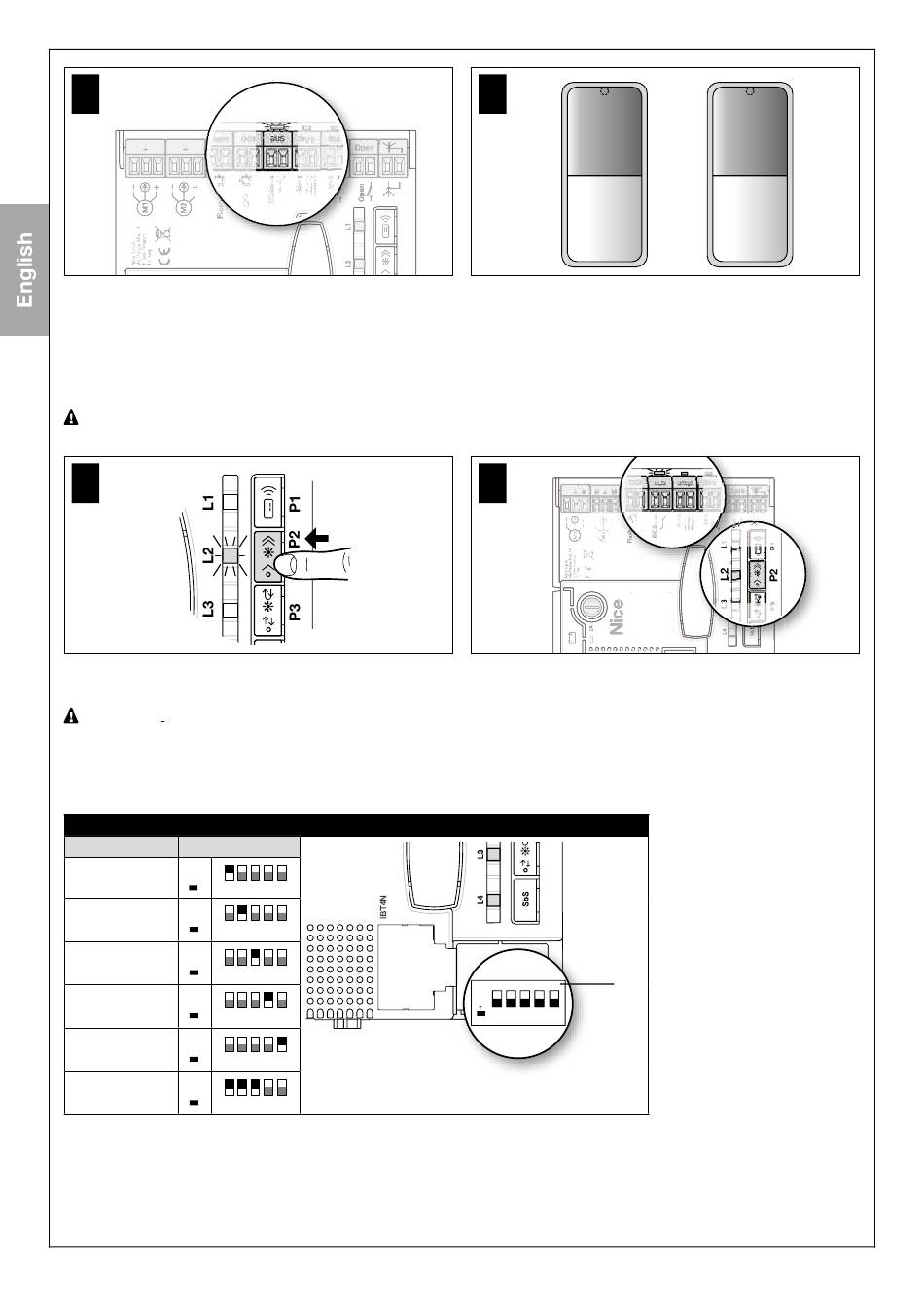

01. On the control unit (Fig. 12) press and hold button P2 for at least 3 seconds then release it.
02. Wait a few seconds for the control unit to complete the device learning phase.
03. On the control unit (fig. 13), at the end of the learning phase, the Stop led must remain on and led L2 must light up. The ECSbus led must
flash once a second. If led L2 flashes = error (see chapter 10).
Whenever a photocell is added to or removed from the system, the recognition procedure for the connected devices must be
repeated.
12
M

5.4 - MOTOR TYPE SELECTION

The control unit is equipped with a selector "A" (figure in Table 2) which allows you to specify the type of motor connected to the control unit:
ATTENZIONE!
• Be very careful when setting the selector "A" according to the type of motor: see Table 2.
• The setting of the motor type must be carried out before activating the learning of the positions of the mechanical stops.
• Any configuration other than that shown in Table 2 is not permitted.
• If it is necessary to change the configuration of selector "A", for a change of the motor type, it is necessary to store the opening and closing angles
of the gate leaves again (paragraph 5.5).
Motor type Selector
RIVA 200
O
N

ARIA 200
O
N

ARIA 400
O
N

MAESTRO 200
O
N

MAESTRO 300
O
N

IN100
O
N

5.5 -

MEMORISATION OF GATE LEAF OPENING AND CLOSING ANGLES

After lselecting the motor type, the control unit must recognise the opening angles of the leaves. In this phase the leaf opening angle must be detected
from the mechanical closing stop to the mechanical opening stop. The presence of fixed and sufficiently strong mechanical stops is essential.
01. Manually release the gearmotors (Fig. 14) and bring the gate leaves to midway of their path so that they are free to open and close, then lock the
motors (Fig. 14).
20 – English
BUS
Flash OGI BUS
M M M
TABLE 2
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
1 1 2 2 3 3 4 4 5 5
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
1 1 2 2 3 3 4 4 5 5
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
1 1 2 2 3 3 4 4 5 5
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
1 1 2 2 3 3 4 4 5 5
1 2 3 4 5
1 2 3 4 5
1 2 3 4 5
11
13
M M
Stop Sbs Open
O
N
1 2 3 4 5
TX RX
BUS Stop
A
