Electric wire rope winch >BETA< SILVERLINE
English

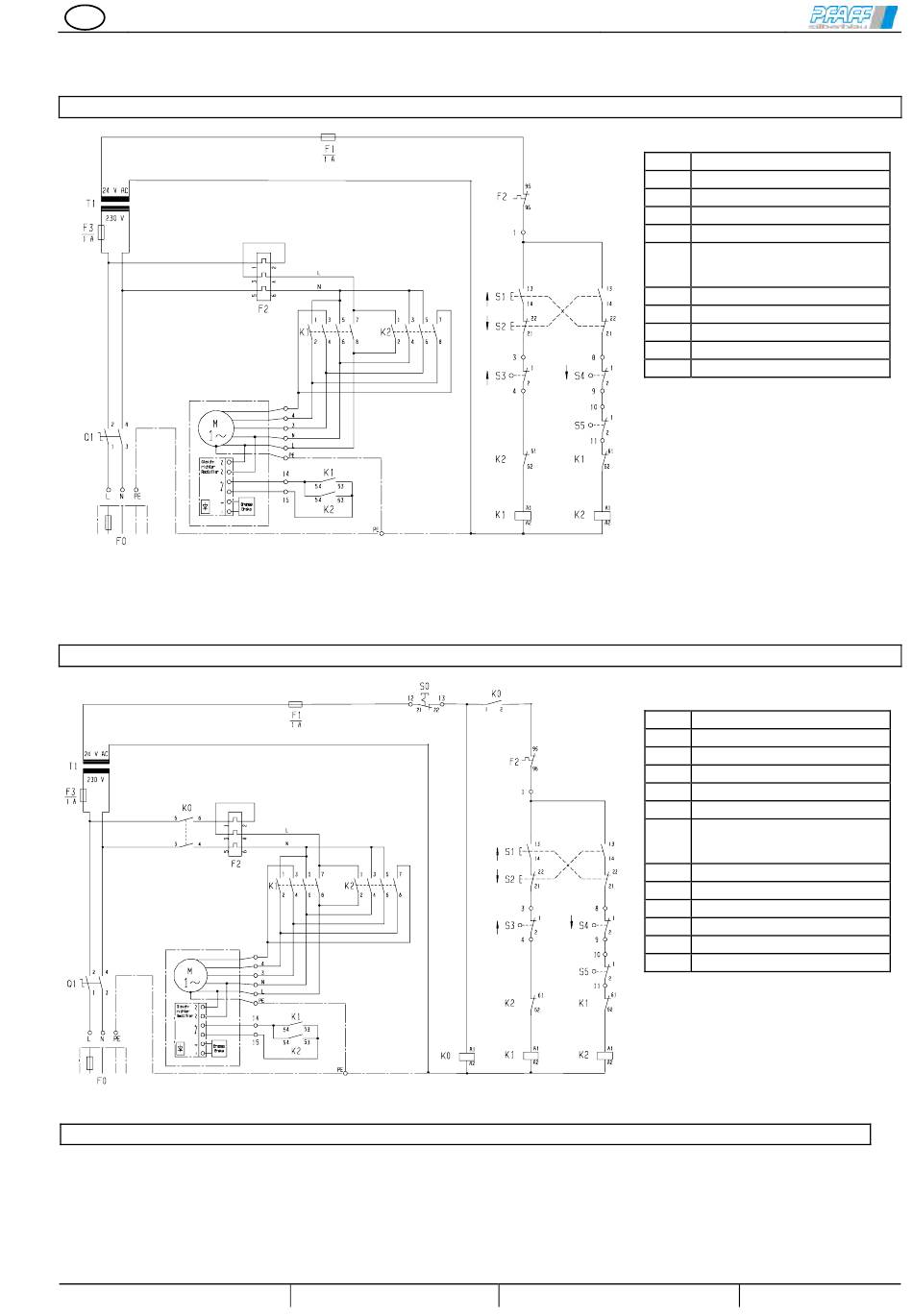

Electric control with mounted-in reversing contactor, thermal motor protection, main switch and integrated operating elements
(circuit diagram no. 4.1.431 - 0700(3))
If the connection between 24 V and PE will be disconnected, acc. to DIN EN 60204 an insulation monitoring is necessary.
Attention!
Brake must be con-
nected on DC side!
current fuses on site!
Circuit diagram for el. wire rope winch with 1 wire rope speed for single-phase AC
Electric control with mounted-in reversing contactor, thermal motor protection, main switch, main contactor and external
operating elements (circuit diagram no. 4.1.431 - 0710(3))
If the connection between 24 V and PE will be disconnected, acc. to DIN EN 60204 an insulation monitoring is necessary.
Attention!
Brake must be con-
nected on DC side!
current fuses on site!
Fuse protection and connection have to be made acc. to local, national and international regulations!
technische Änderungen vorbehalten
main contactor
design changes under reserve
04.01.401
S1
S2
S3
S4
S5
F0
F1-F3
F2
Q1
T1
K1-K2
Down
Up
S0
S1
S2
S3
S4
S5
F0
F1-F3
F2
Q1
T1
K0
K1-K2
Down
Up
changements techniques sous réserve
Up
Down
upper limit switch (optional)
lower limit switch (optional)
slack rope switch (optional)
main current fuses have to be
provided on site (dimensions of
fuse, see page 19)
fuse (control voltage)
thermal motor protection
main switch
transformer
reversing contactor lifting - lowering
Emergency-Stop
Up
Down
upper limit switch (optional)
lower limit switch (optional)
slack rope switch (optional)
main current fuses have to be
provided on site (dimensions of
fuse, see page 19)
fuse (control voltage)
thermal motor protection
main switch
transformer
main contactor
reversing contactor lifting - lowering
