C
Balance for filters:
•
Bottom ring (12)
•
Weighing pan for filters (10)
•
Standard weighing pan (11)
Pipette calibration:
Run the balance, replace the weighing pan with a set of a weighing pan and a glass vessel (5).
When the indication is stable press TARE button.
CAUTION:
When connecting the indicator to the weighing instrument make sure that flat side of the PS2
connector is directed upwards (if such connection is required). Make sure the arrows on the
connector are visible as presented in the figure below.
MYB 4Y Microbalances
D
Balance for pipettes calibration:
•
Anti-draft shield (2)
•
Weighing pan (3)
•
Glass vessel (4)
•
Evaporation ring (5)
•
Glass lid with an opening (6)
•
Additional glass lid (7)
•
Glass lid for the weighing chamber (4)

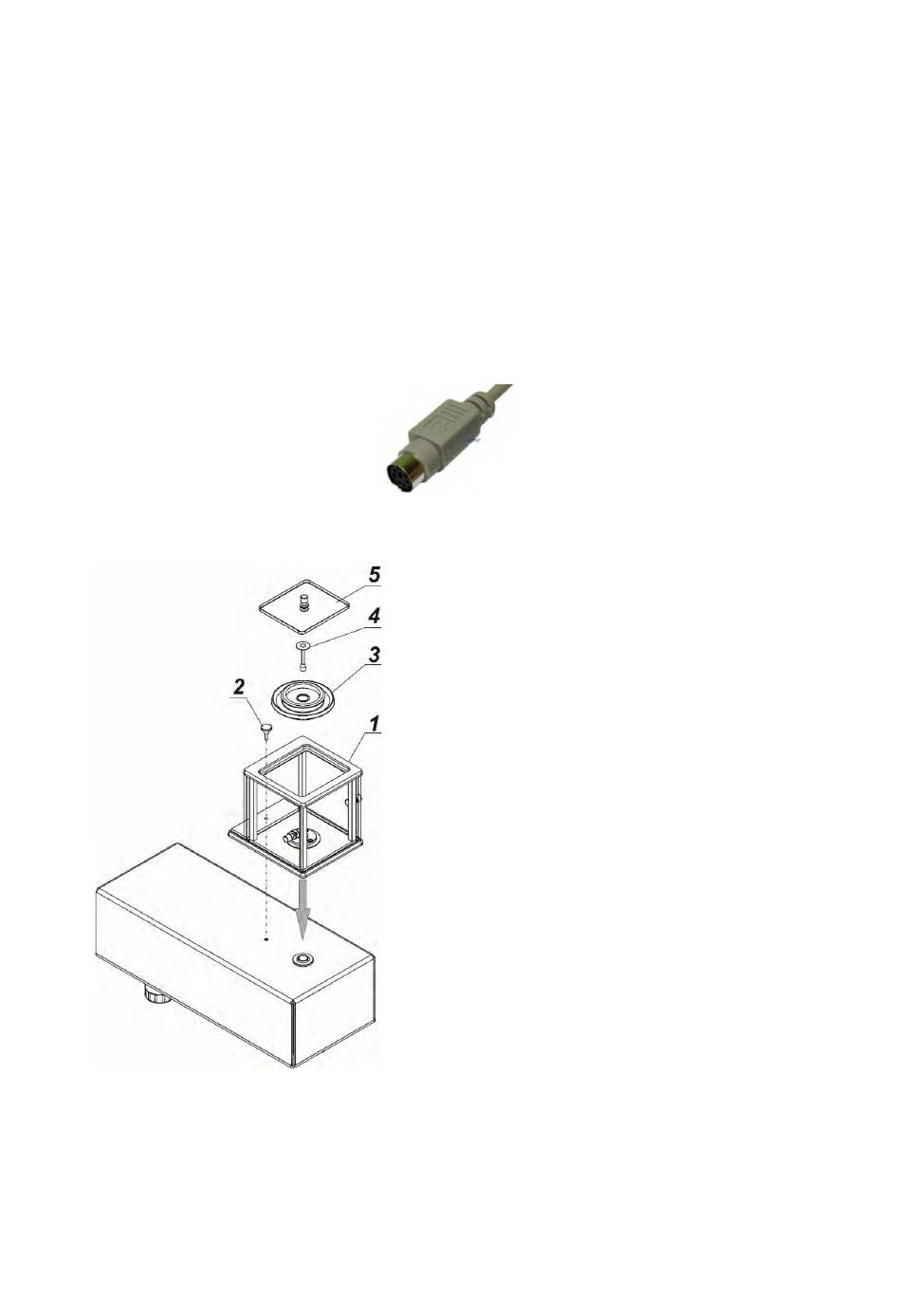

Take all the components from the packaging.
Install the anti-draft chamber (1) and screw it to
the base using bolt (2).
Install:
- draft shield (3),
- weighing pan (4),
- glass lid (5).
- 21 -
