UYA 4Y MYA 4Y Microbalances
Caution! Make sure there is no protective sticker 1 while carrying out the measurement (see the above
diagram). It is obligatory to remove the sticker prior chamber assembly.

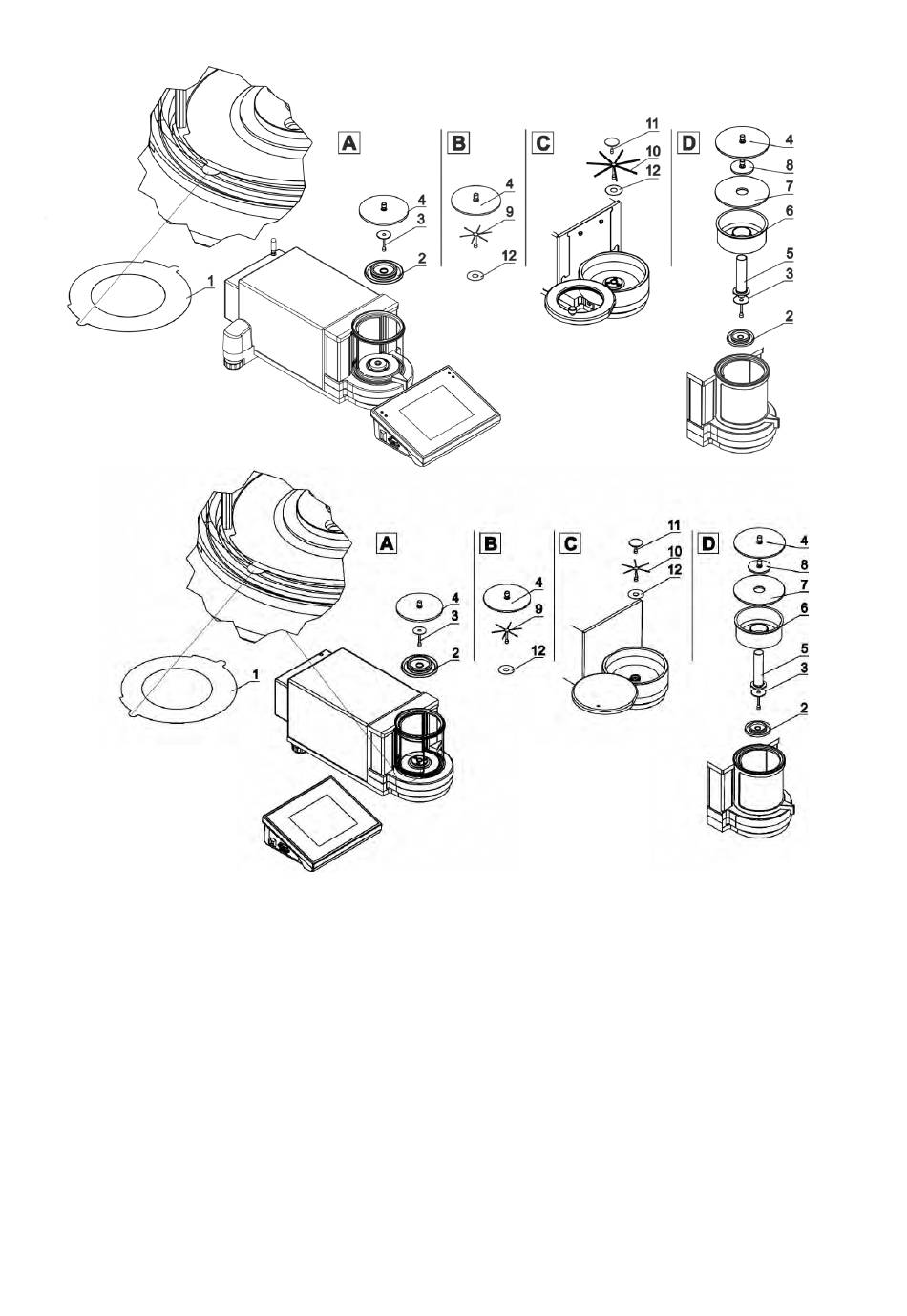

Install components following the above diagram.
A
Standard UYA and MYA balance:
•
Anti-draft shield (2)
•
Weighing pan (3)
•
Glass lid for the weighing chamber (4)
B
MYA 0.8/3.4Y microbalance (equipped with
standard weighing pan and weighing pan for
filters):
•
Bottom ring (12)
•
Weighing pan for filters (9)
•
Glass lid for the weighing chamber (4)
- 20 -
