XA 4Y Balance
- 31 -

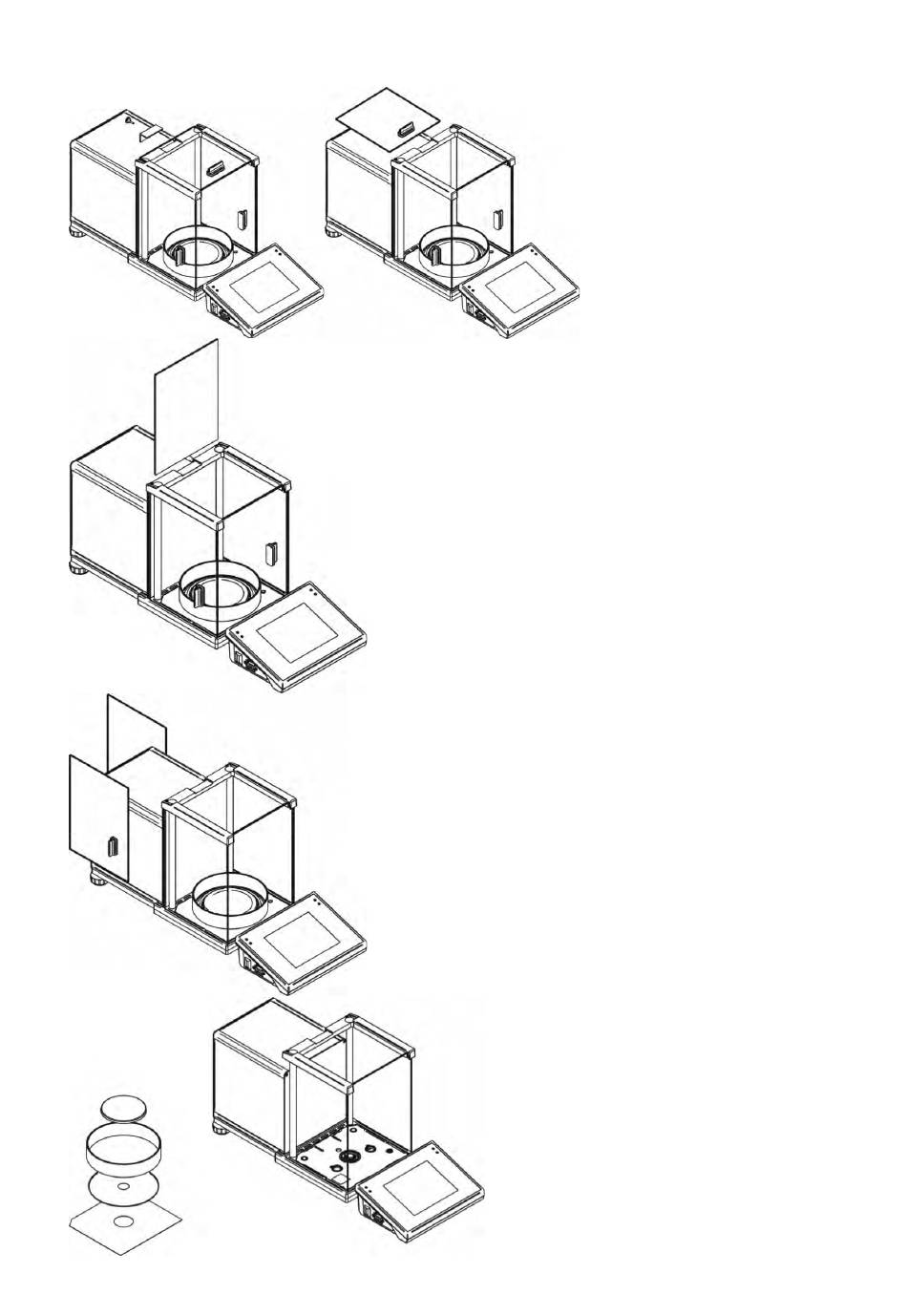

Undo and remove top pane
protection, next slide the pane
out of a guide bar.
Remove the back pane.
Remove the left and the right
side pane. The side panes
are not interchangeable
therefore it must
remembered which is left,
which is right. Upon cleaning
procedure completion,
panes must be installed on
the correct side.
Caution: Do not remove the
front pane!
Remove the weighing pan,
draft shields and
plates. Clean the components
when detached. With this your
balance mechanism
protected against accidental
damage.
be
the
bottom
is
