8. Product overview

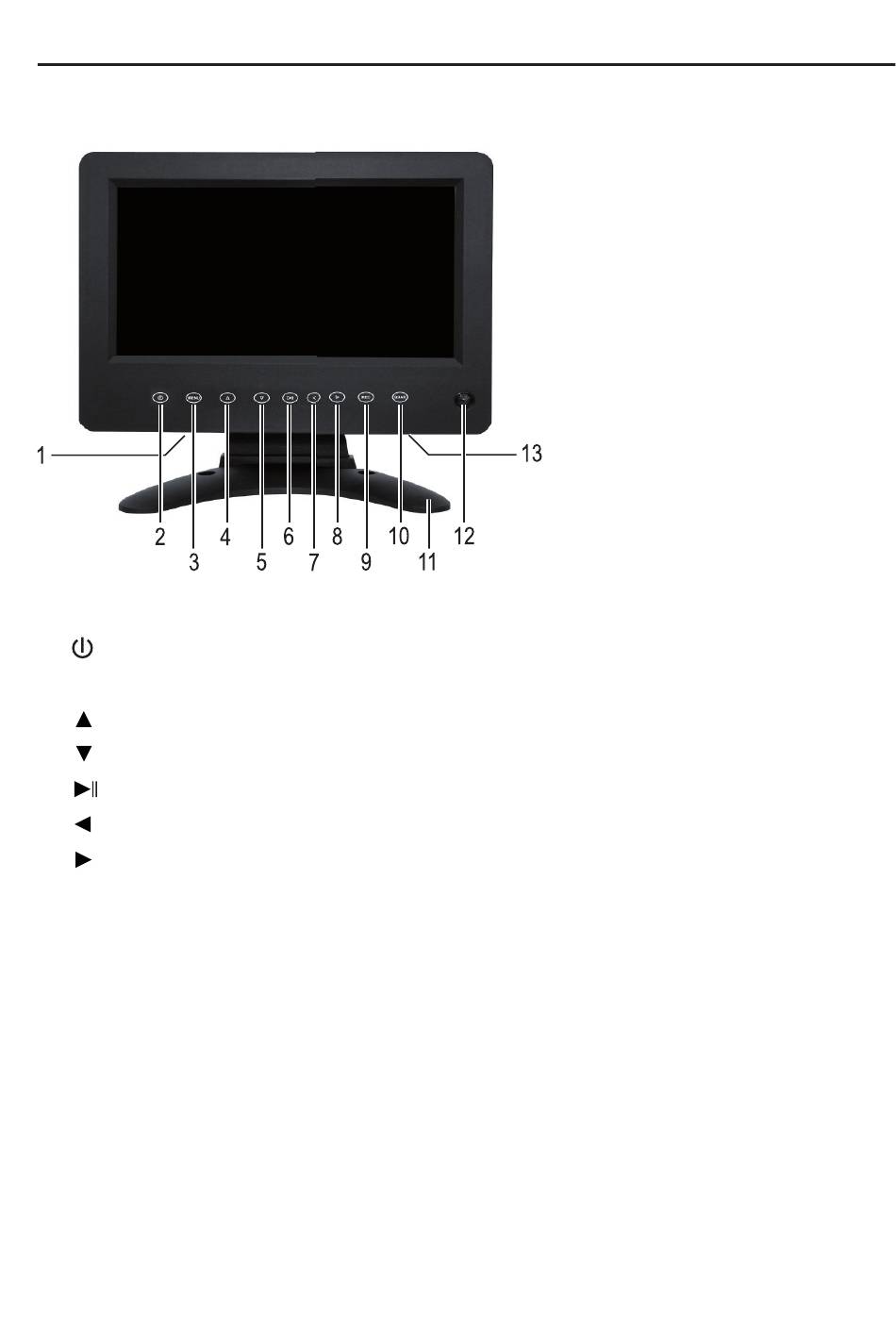

a) Monitor/DVR
1 SD memory card slot (on the housing's lower edge)
2 " " button: Turn the monitor display on/off, all other functions (e.g. automatic recording) continue to work
3 "MENU" button: Call up/exit the menu
4 "
" button: Select menus/functions
5 "
" button: Select menus/functions
6 "
" button: Confirm menu function or start/pause playback
7 "
" button: Select menus/functions, change settings/values
8 "
" button: Select menus/functions, change settings/values
9 "REC" button: Start/stop manual recording
10 "DUAL" button: Toggle view (single camera or dual view)
11 Base (with 2 mounting holes)
12 Power LED & IR receiver
13 RJ45 socket (on the back, video signal input and voltage/power supply for cameras)
