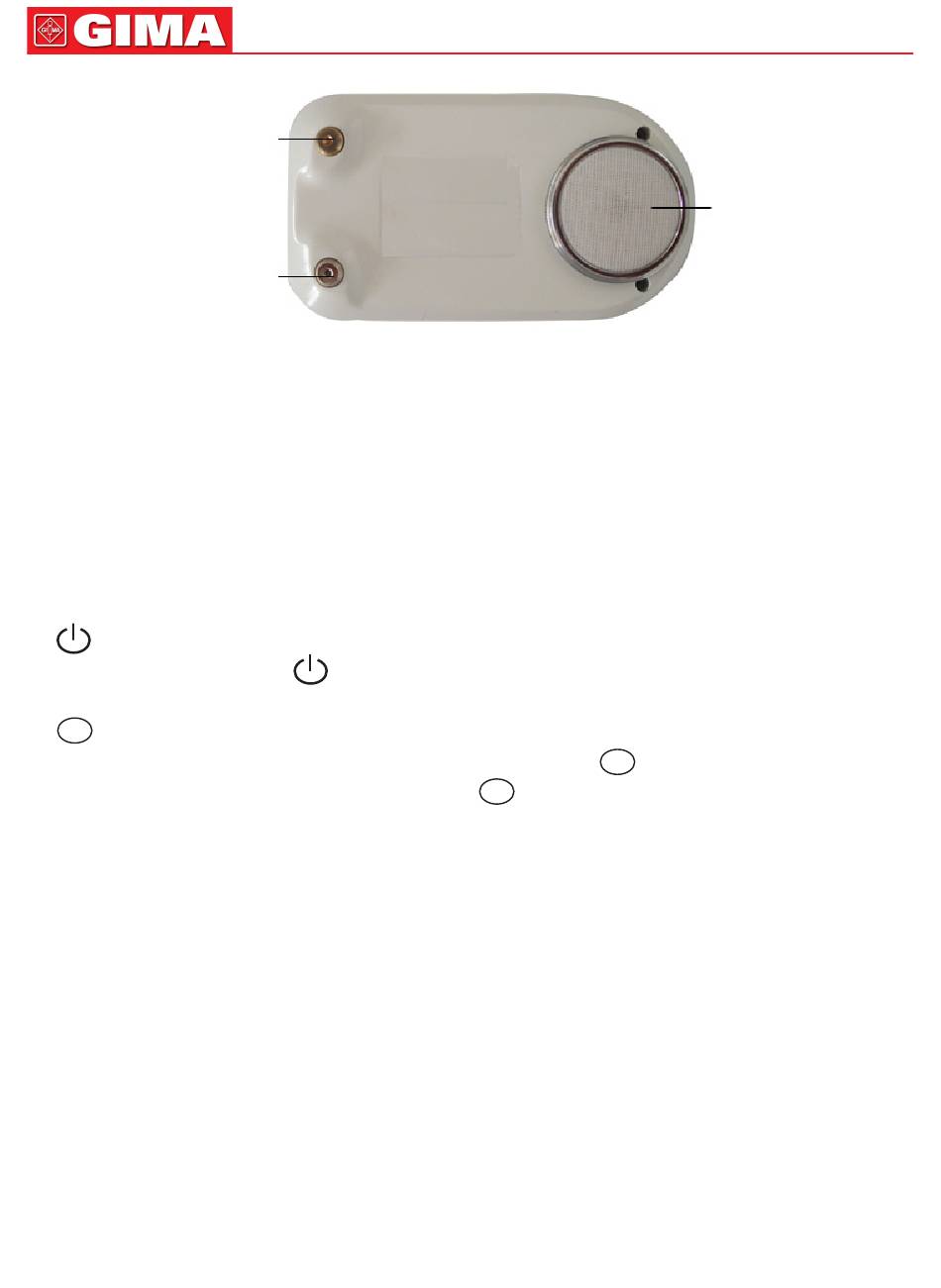

Fig. 4-2 Rear panel view

4.1 Front Panel Instruction

4.1.1 Display Screen

LCD: 2.4" TFT
Pixel: 320x240
4.1.2 Keys
1)
Power key
Function: long press
the wave to observe when measuring ECG.
2)
Confirm/Menu key
OK
Function: 1. In any monitor interface, short press
2. In any monitor interface, long press
3. Press the key to activate the selected operation, enter corresponding
interface.
3) Direction key
 Up key
Function: 1. In ECG interface, change the direction of display.
2. In menu interface, move the selection bar up.
 Down key
Function: 1. In ECG interface, select auscultation mode (Heart, Lung,
Heart&Lung).
2. In menu interface, move the selection bar down.
 Left key
Function: 1. In ECG interface, descend the volume in auscultation function.
2. Move selection bar on "YES" or "NO" when you need to confirm your
operation.
 Right key
Function: 1. In ECG interface, raise the volume in auscultation function.
ENGLISH
to turn on/off the device and short press it to freeze
to enter the main menu.
OK
to record or halt.
OK
54
Stethoscope probe
