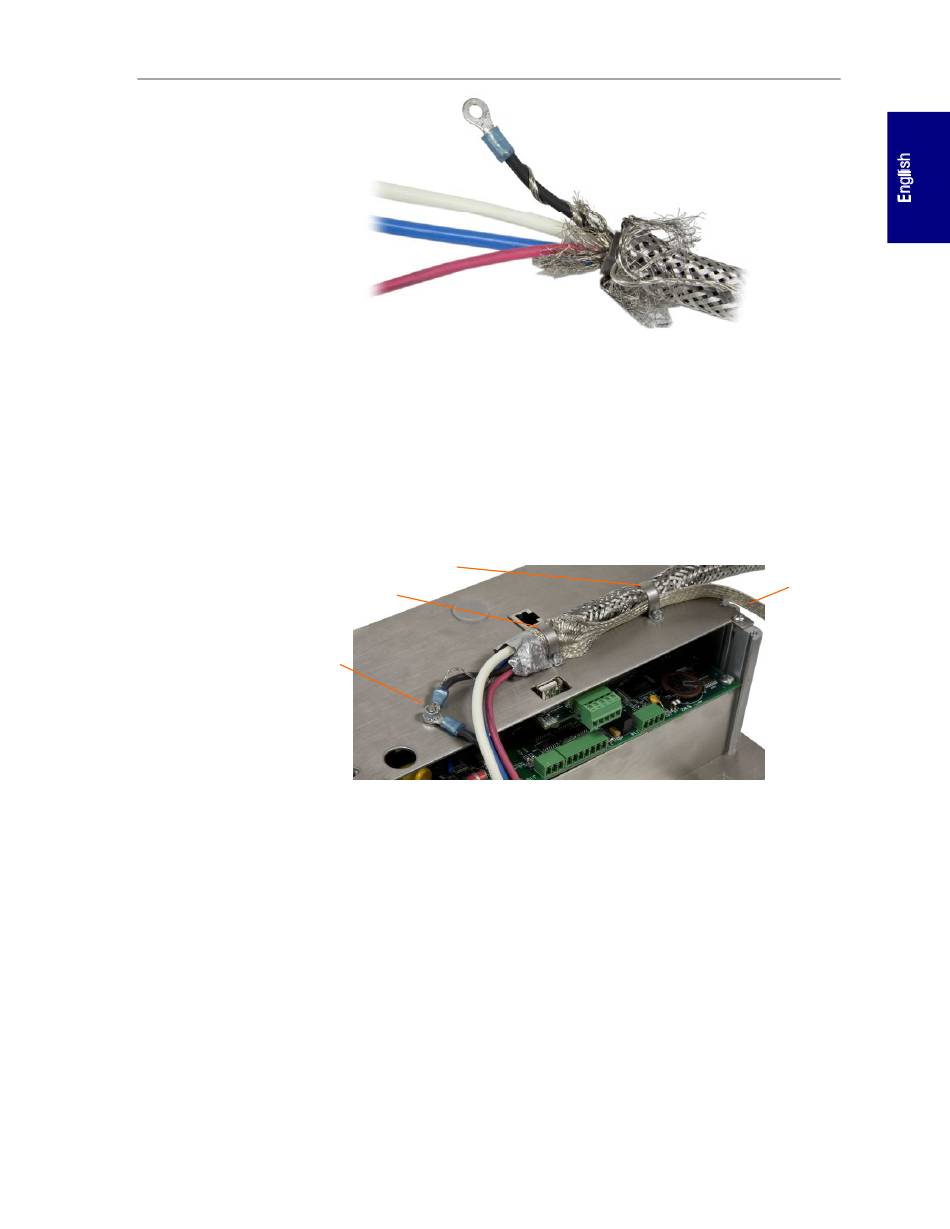

Figure 2-28: Adding Loop Terminal to Black Wire - Panel
4. Carefully, wrap together the following:
•
Inner braided shield and foil
•
Outer braided shield and drain wire
• One end of the flat braided ground cable
5. Place the resulting bundle of cables in position for clamping, as shown in
Figure 2-29. The flat braided ground cable is provided as part of the lightning
protection kit of the platform.
Second clamp
First clamp
External
ground stud
Figure 2-29: Securing the PDX Cable - Panel
6. Secure the cable assembly by inserting and tightening the left clamp.
7. Route the flat braided ground cable along the PDX cable through the right
cable clamp and secure with the second clamp as shown in Figure 2-29.
8. The remaining end of the flat braided cable is terminated at the ground rod as
indicated in the scale platform's installation drawing.
9. On the rear cover of the panel-mount enclosure, connect the short black wire
(from Figure 2-19) and the black wire from the PDX cable to the external
ground stud with a hex nut as shown in Figure 2-29.
10. Installation of the PDX cable is now complete. Proceed to the PDX cable
termination in the next section.
IND560 PDX Installation Manual
Flat braided
cable
2-17
