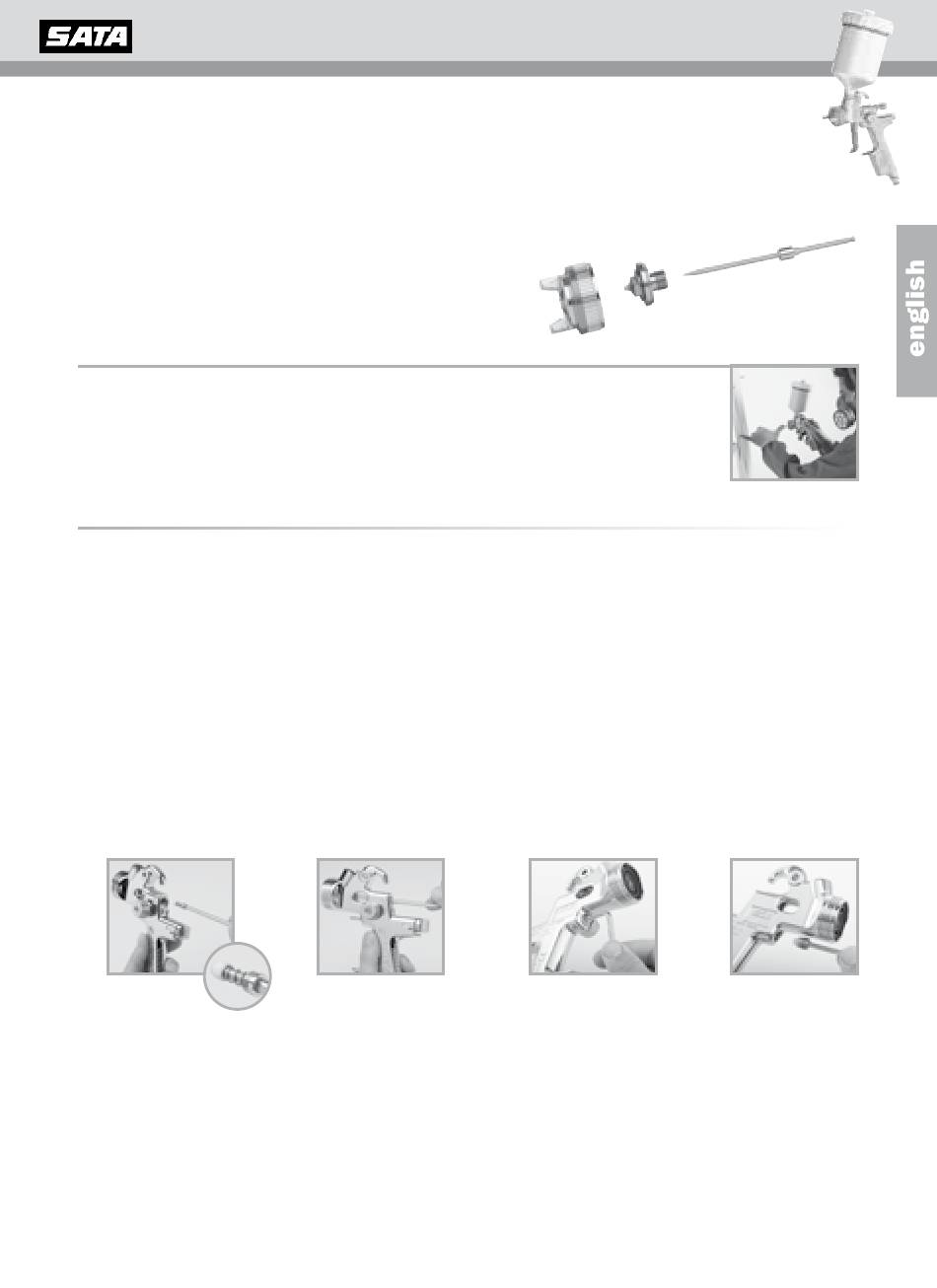

Operating instructions SATAjet RP (DIGITAL 2)
When mounting foreign parts, quality reduction is possible and the SATA
warranty expires.
Nozzle sets
29587
for SATAjet RP 1,0
14902
for SATAjet RP 1,2
14910
for SATAjet RP 1,3
14936
for SATAjet RP 1,4
14977
for SATAjet RP 1,6
4.8. Spray distance
In order to avoid overspray and surface problems, we recommend a
spray distance of 7 - 9 inches on 29 - 36 psi between air cap and object
should be maintained in accordance with the chart below, depending on
spray gun type and material.
5. Changing the Self-adjusting Seals
a) Material Side: For replacement of the self-adjusting paint needle packing the paint
needle must be removed. Insert hollow key SW 4 with its cylindrical connection (part
no. 9647) into the gun instead of the paint needle, and unscrew the packing screw from
the gun, together with compression spring and packing. Push compression screw (part
no. 14605), compression spring (part no. 14993) and new packing (part no. 23275) onto
cylindrical connection of the hollow key, and screw them tight inside the gun body. Check
paint needle for damage and reassemble.
b) Air Side: For replacing the seal retainer (pos. 82636) of the air piston rod, paint needle
and trigger must be removed first; then pull out air piston rod (pos. 86843) and unscrew
the seal retainer unit (pos. 82636) by means of the hollow key size 4.
Screw in new seal retainer unit and tighten thoroughly. Grease air piston rod slightly
with SATA special grease Order No. 48173 and insert it, then assemble trigger and paint
needle.
97998
for SATAjet RP 1,8
69880
for SATAjet RP 2,0
69898
for SATAjet RP 2,5
IX.5
