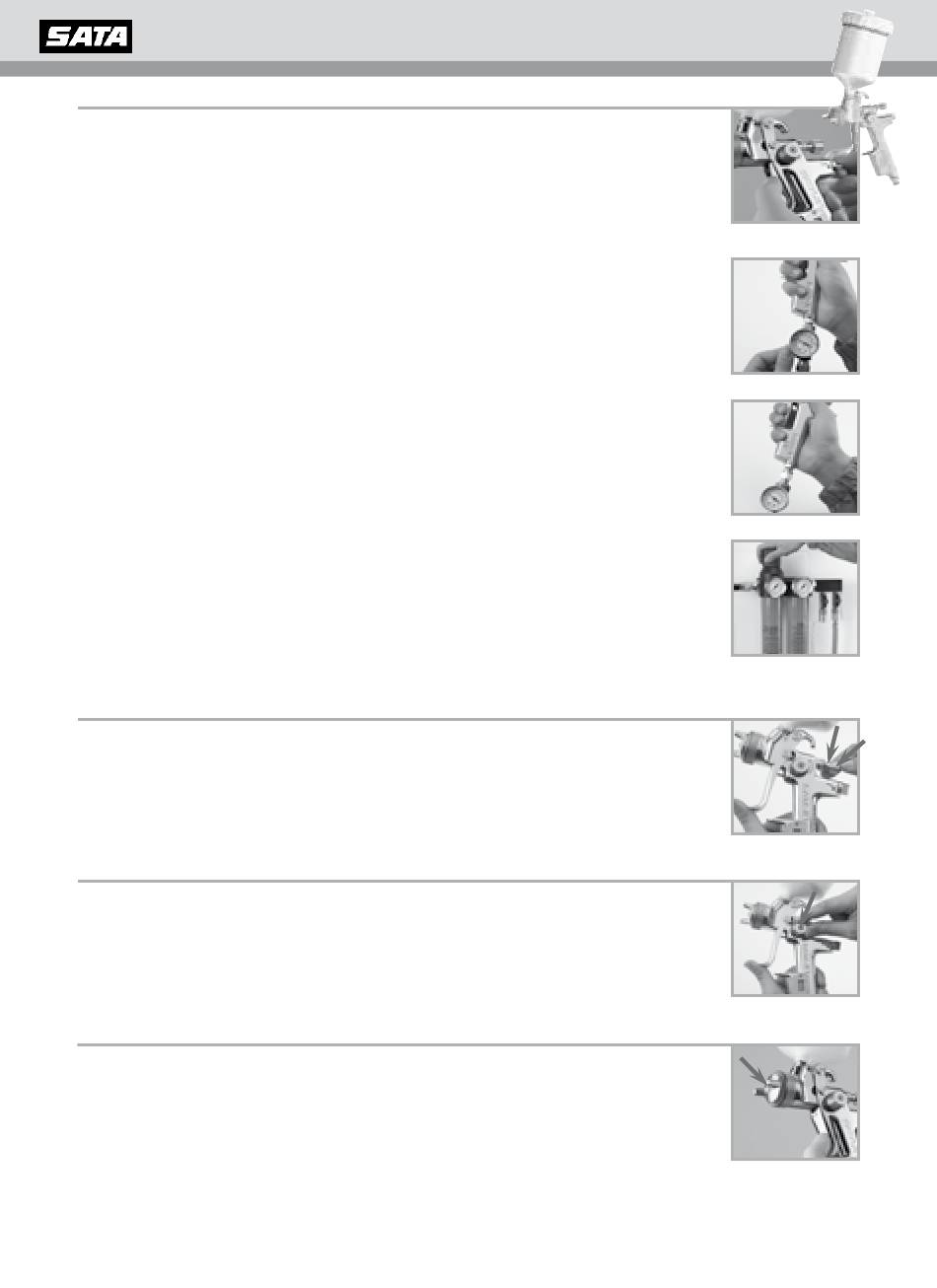

Operating instructions SATAjet RP (DIGITAL 2)
4.4 Correct adjustment of the dynamic inlet pressure
a) SATAjet DIGITAL 2 guns:
Adjust the required pressure of 36 psi at the spray gun micrometer - it
will be indicated directly on the display while the gun trigger is pulled.
b) Spray gun with micrometer / gauge
Ensure sufficient pressure by means of the pressure regulator. Adjust
the recommended inlet pressure of 36 psi at the micrometer.
part. no. 27771
c) Spray gun equipped with compressed air control gauge
Adjust the pressure at the pressure regulator in a way that the spray
gun inlet pressure required for the respective gun model is obtained.
part. no. 4002
d) Spray gun without gauge
In order to make a correct adjustment of the spray gun inlet pressure,
as otherwise measureable in a) and b), without a gauge, adjust a pres-
sure of about 9 psi higher per 10 m to inlet pressure to compensate the
pressure drop in the hose.
4.5 Material flow control
Adjust material flow control
in accordance with material viscosity and required flow rate (arrow) and
fix by means of the counter nut (small arrow). Under normal circum-
stances, the material flow control is fully open.
4.6. Round/flat spray control
Round/flat spray control
for infinitely variable adaptation of the spray fan to the object:
Turn to the left - flat spray
Turn to the right - round spray
4.7. Nozzle set
Complete, hand-checked nozzle-set, consisting of paint needle (V4A),
paint nozzle (V4A) and air cap. Mount the nozzle set tightly (use uni-
versal wrench for the paint nozzle). Insert paint nozzle before putting
in paint needle. The air cap should be placed in a position in which the
marking is on top. Use punched hexagon socket (wrench size 12) of
universal wrench for paint nozzle. Only original SATA parts guarantee
highest quality and lifetime.
