3.
Reinstall the dust cap onto the permanent axle.
4.
If necessary, repeat STEPS 1-3 for opposite rear wheel.

Quick-Release Axles

For this procedure, refer to FIGURE 2 on page 60.
Removing
1.
Hold the center of the rear wheel (A) and push in the tip of the quick-release axle (B).
2.
Pull the quick-release axle and rear wheel out of the axle bracket (C) on the wheelchair frame (D).
3.
Push in the tip of the quick-release axle again and pull the quick-release axle out of the existing rear wheel.
4.
Install new/existing rear wheel onto wheelchair. Refer to Removing/Installing Rear Wheels on page 58.
Part No 1167417
F
E
A

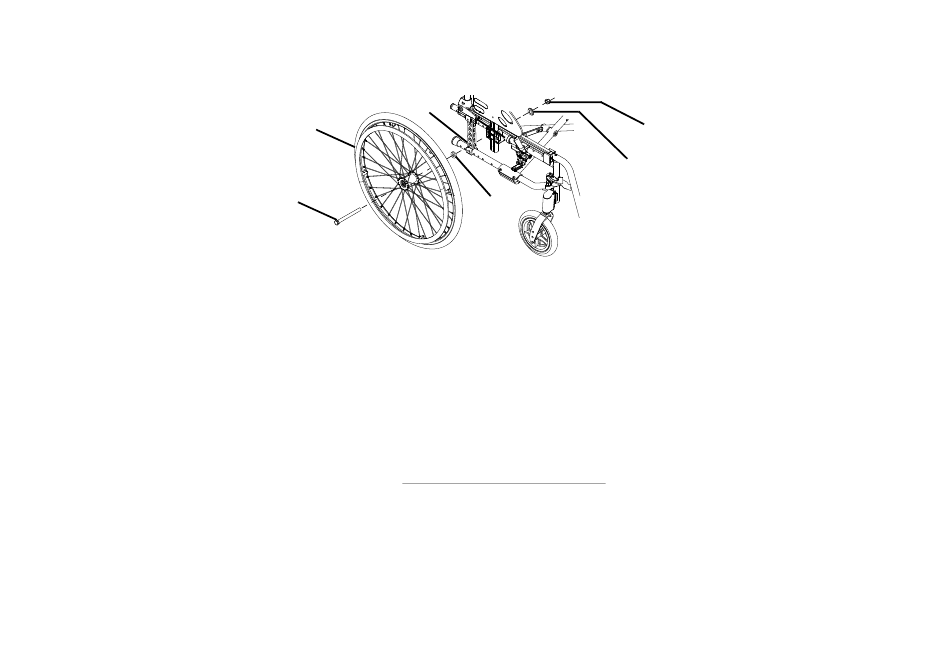

FIGURE 1 Removing/Installing Rear Wheels - Permanent Axles
3 REAR WHEELS/FRONT CASTERS
E
C
B
59
D
Invacare® MyOn™
