Installation Examples

1.
Fig. 6
24
9 Installation Examples
NOTE
Also read the operating instructions for your pump (also refer to the
"General operating instructions for ProMinent motor-driven
metering pumps and hydraulic accessories").

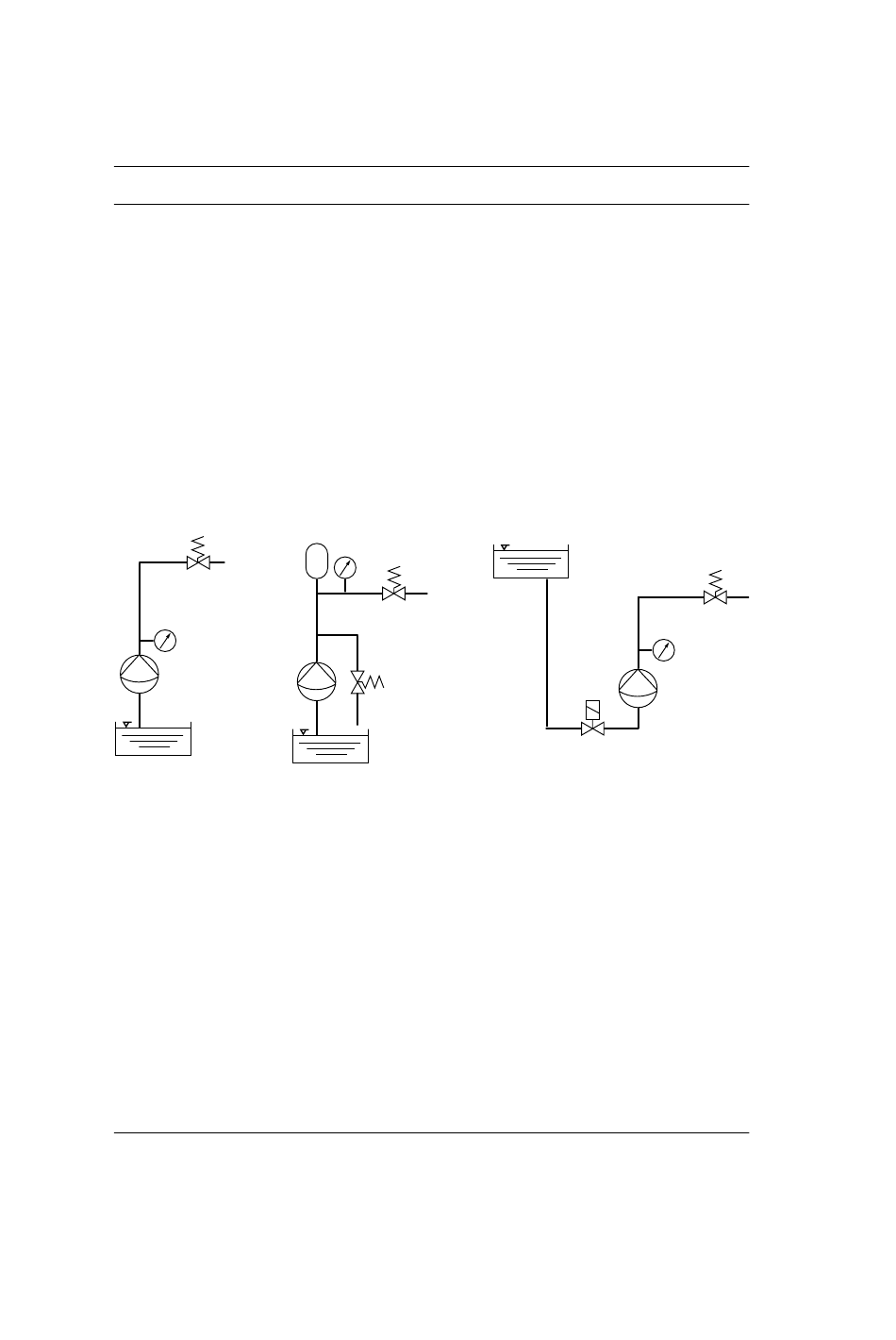

Examples:
1. Use as backpressure valve for generating a constant
backpressure.
2. Use together with a pulse damper for generating low-pulse
metering.
3. Use as an overflow valve to protect the system.
4. Use in conjunction with high admission pressure.
2.
PD
3.
Fig. 7
4.
Fig. 8
