Smoker Grid 1x
Screw M8x12 8x

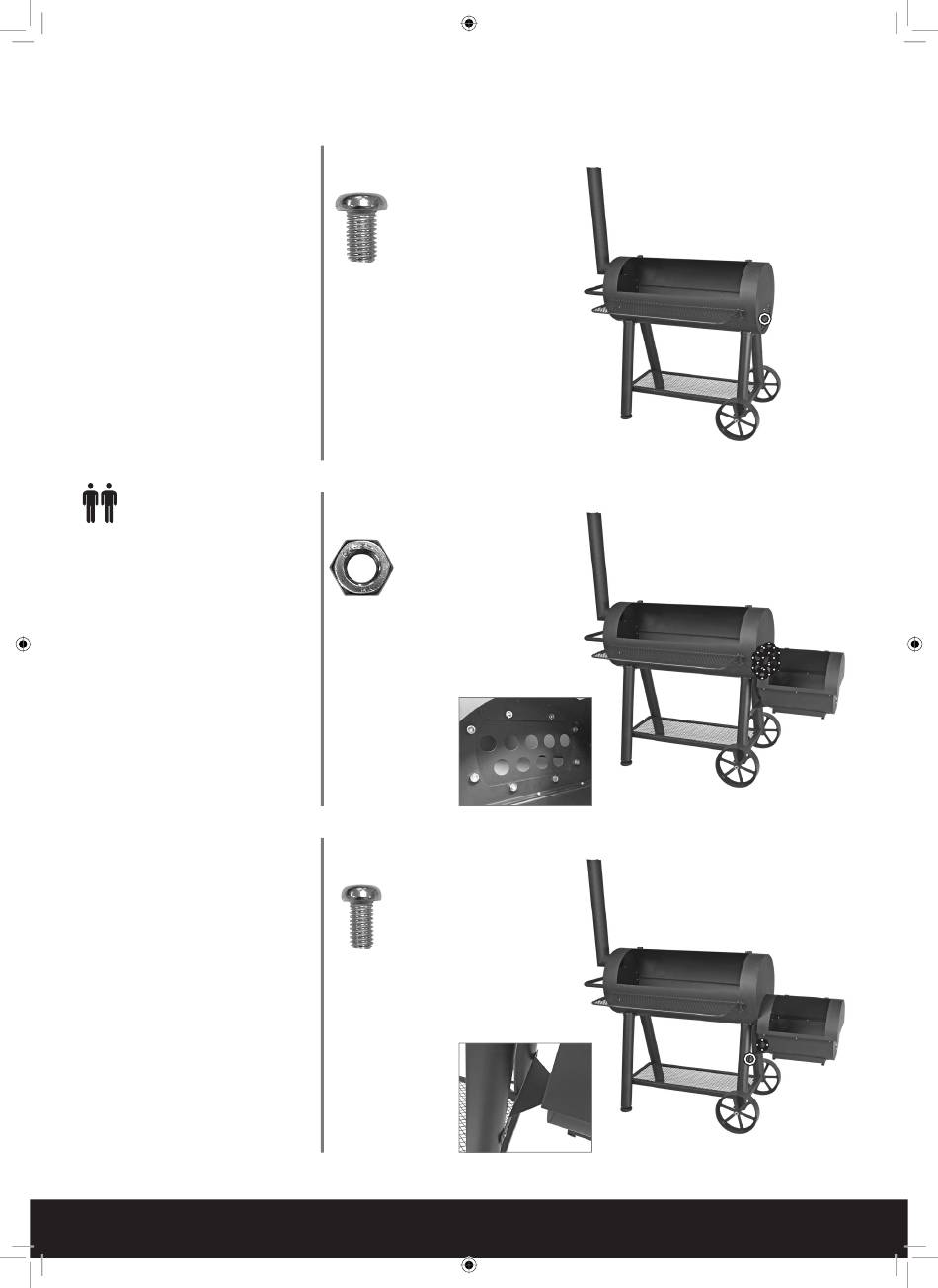

Attach the smoker grid from the
inside to the right side of the firebox
by use of 8 M8x12 screws.
Nut M8 8x
Attach the smoker firebox assembly
to the grill firebox by use of 8 M8
Screw M6x12 6x
Attach the smoker adaptor to the
grill firebox assembly by use of
2 M6x12 screws.
