4.6 Wiring diagram

16 Fan
32 DHW circulating pump
42 DHW temperature sensor
43 Air pressure switch
44 Gas valve
47 Modureg
72 Room thermostat (Optional)
B
Before connecting the room thermostat or the remote timer control, remove the jumper on the terminal block
GB
All manuals and user guides at all-guides.com

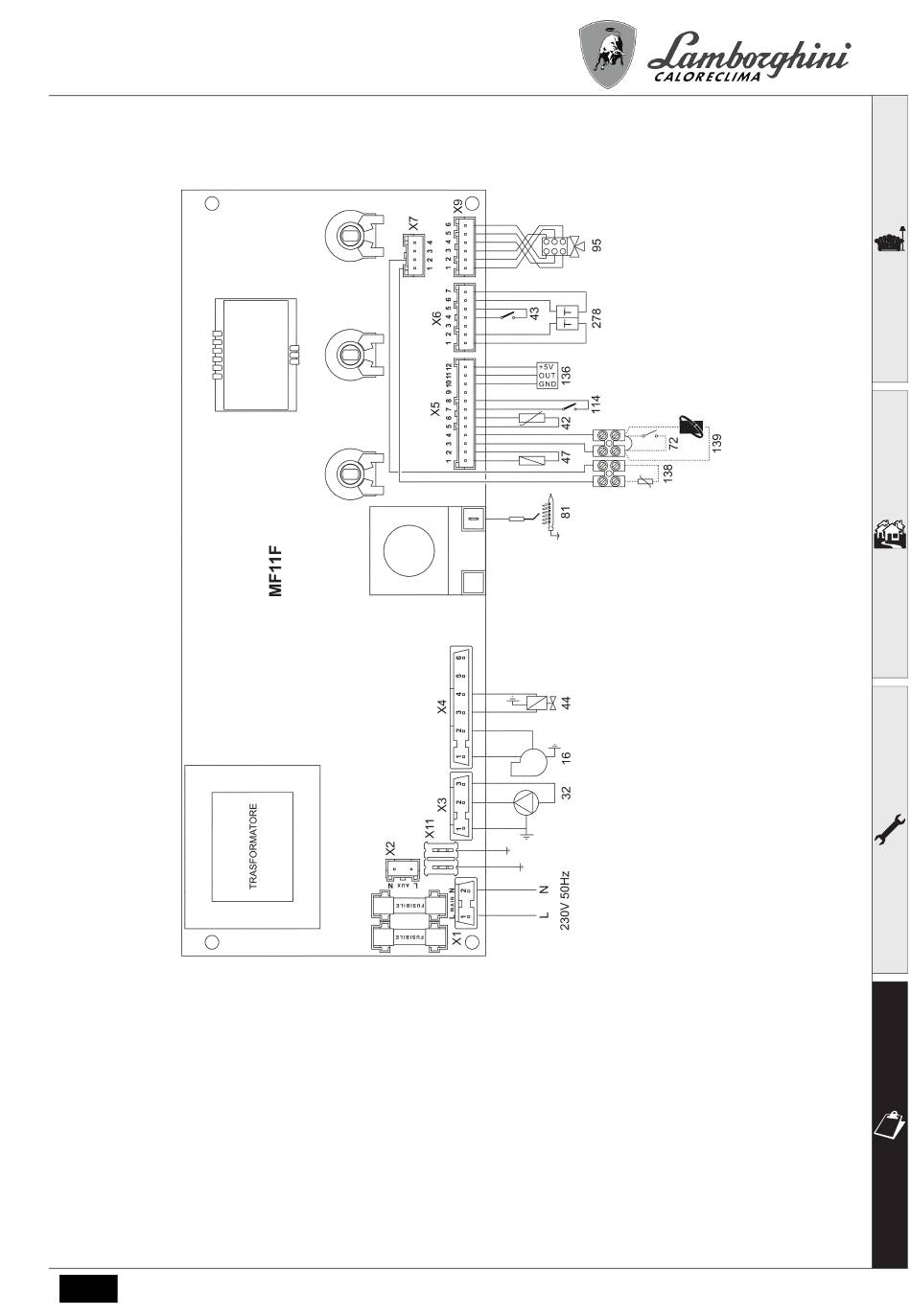

fig. 30 - Wiring diagram
cod. 3540G180 - 02/2008 (Rev. 00)
81 Ignition/detection electrode
95 Diverter valve
114 Water pressure switch
136 Flow meter
138 External probe
139 Remote timer control - Opentherm (Optional)
278 Double sensor (Safety + heating)
