Connection with separate pipes
Remove the air inlet closing plug. Fit the two Ø80 flanged pipe sections, with respective seals. If necessary, install the
diaphragm under the air inlet pipe section.
A Plug
B Air
C Fumes
D Air diaphragm
** Ø80 AIR INLET
B
Only use the Lamborghini Caloreclima inlet/fume exhaust kit.
GB
All manuals and user guides at all-guides.com
B
A
D

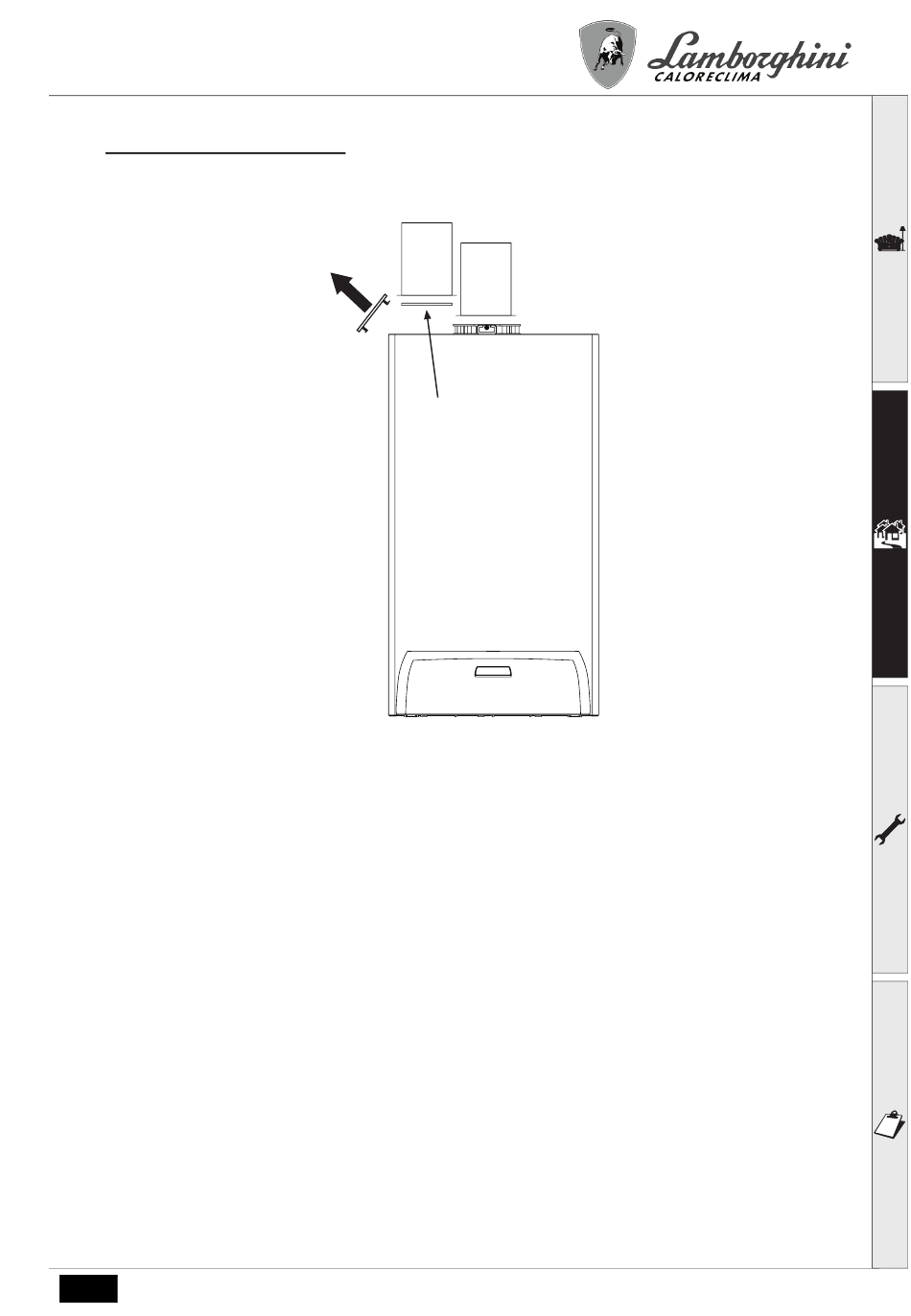

fig. 22 - Connection with separate pipes
cod. 3540G180 - 02/2008 (Rev. 00)
