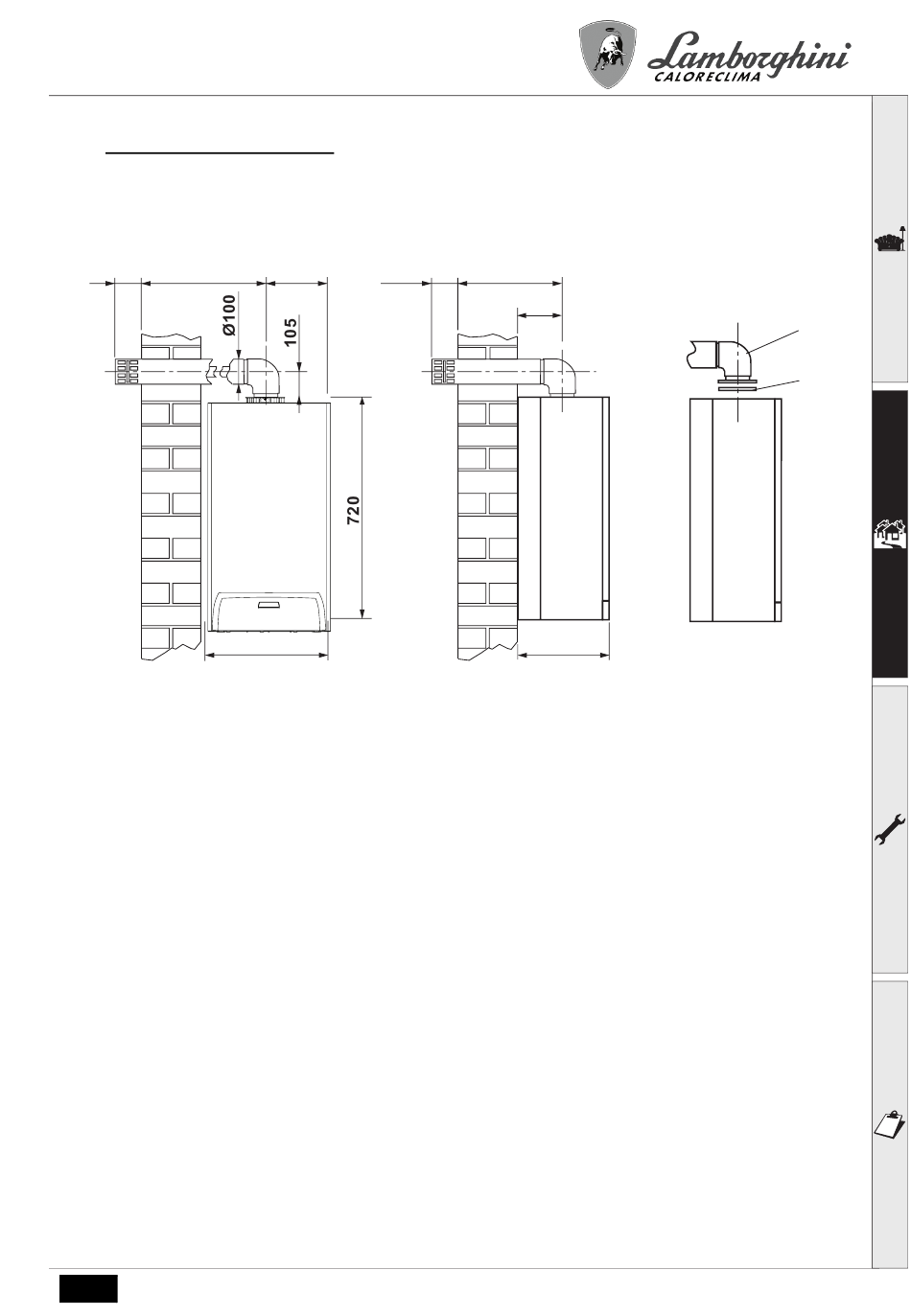

Connection with coaxial pipes
Fit the concentric bend, positioning it in the required direction, insert the seal on it and install the diaphragm (when nec-
essary). Fit the fume exhaust and inlet pipes, respecting the measurements given in the respective installation diagram.
The fume exhaust must be kept sloping slightly towards the outside.
Max. length CONCENTRIC EXHAUST 3 m + bend
100 Max. 3000
A Exhaust
B Fume diaphragm
GB
All manuals and user guides at all-guides.com
100
235
420
cod. 3540G180 - 02/2008 (Rev. 00)
Max. 3000
230
320
fig. 21
A
B
