7. Working life

7.2.5 Motor limiting table

Version
EV 30
EV 40
EV 50
EV 60
EV 80

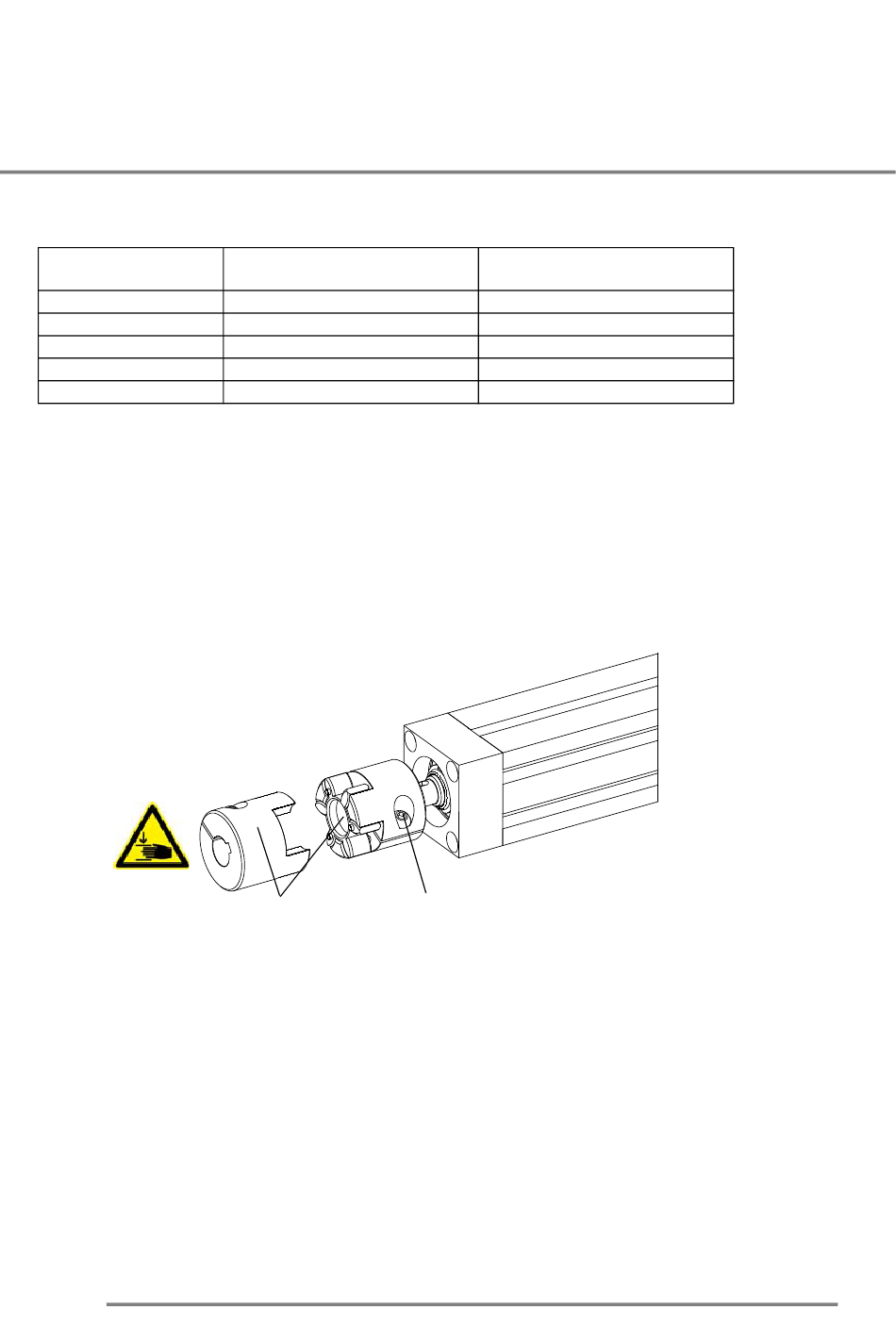

Coupling installation
Coupling installation - pin versions with/without key
•
Push the coupling lug on to the pin
•
Observe the plug-in depth at the lug
•
Tighten the clamping screw (DIN EN ISO 7380)
•
max. operating speed n = 3000 rpm
50
Max. motor weight in kg
8
8
16
16
16
Coupling Locking screw DIN EN ISO 7380
Centre of gravity distance
in mm
250
300
400
400
400
