4 Setup

4.1 General Safety Information

WARNING!
Risk of Injury or Damage
Damaged parts may affect the safety of the
product.
– Check all parts for shipping damage before use.
– In case of damage, do not use the equipment
and contact your Invacare provider for further
instructions.
WARNING!
Risk of Injury or Damage
Improper assembly may cause injury or damage.
– Assembly must be performed only by a qualified
technician.
– Use only Invacare parts in the assembly of this
patient lift.
– After each assembly, check that all fittings
are properly tightened and all parts have the
correct function
– Do not overtighten the mounting hardware.
This may damage the mounting brackets.
If there are any issues or questions during assembly,
contact your Invacare provider.

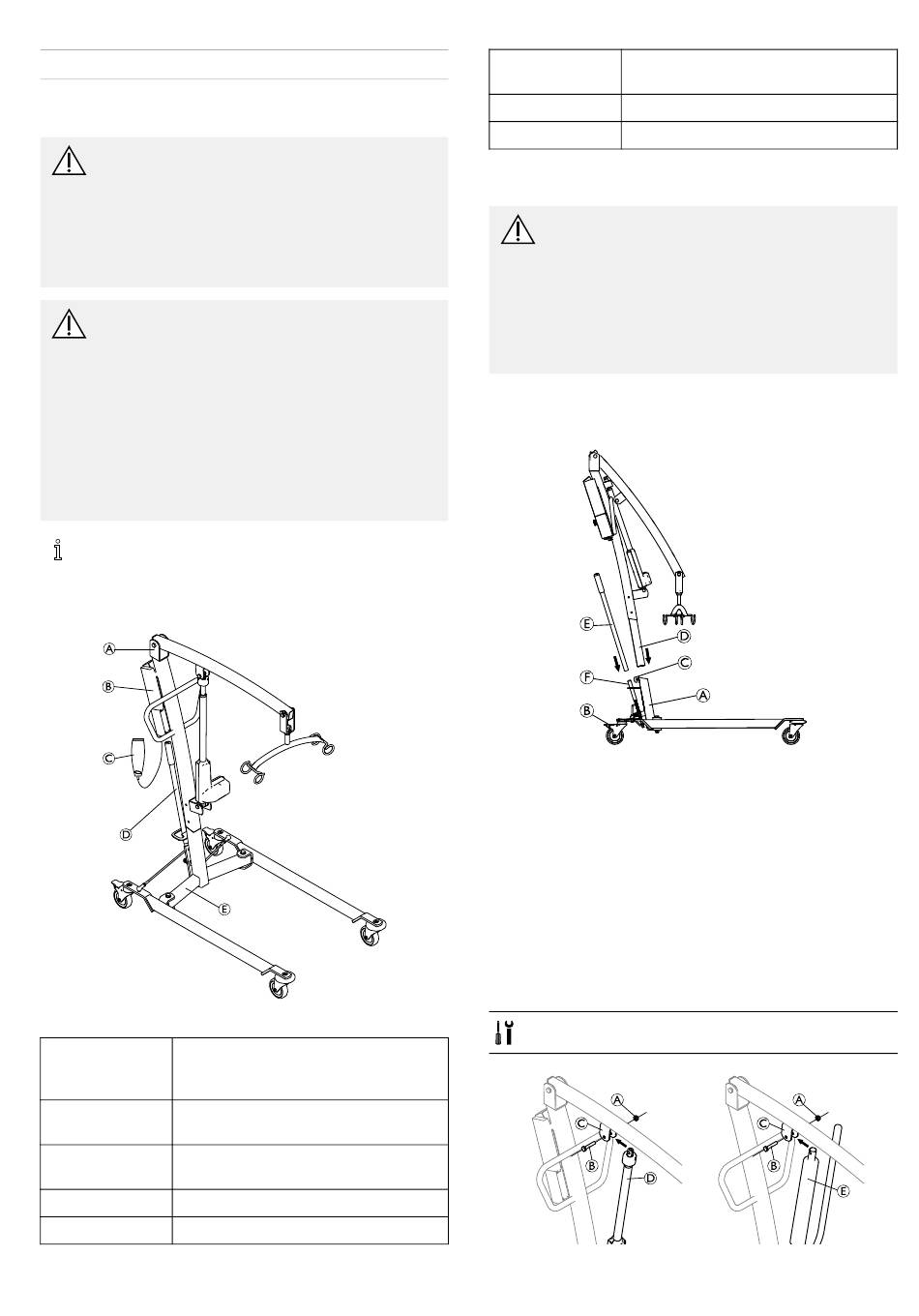

4.2 Scope of delivery

The items listed in the table are included in your package.
Mast assembly including boom,
A
spreader bar and actuator or hydraulic
pump (1 piece)
B Battery (1 piece, Kirilos and Atlante
Electric only)
C Hand control (1 piece, Kirilos and
Atlante Electric only)
Leg spreader handle (1 piece)
D
Base with legs (1 piece)
E
1551341-F
F - not shown Cable for charging (1 piece, Kirilos and
Atlante Electric only)
G - not shown Sling (1 piece)
User Manual (1 piece)
H - not shown

4.3 Assembling the Lift

WARNING!
– Check all parts for visible defects or damage
before assembly. In case of any damage, do not
use the product and contact Invacare.
– Make sure the emergency stop is activated
before assembly or disassembly.
– Take care when lifting components during
assembly. Some parts are heavy. Always
remember to adopt the correct lifting position.
Perform unpacking and assembly operation at floor level.
Assembling the mast to the base
1. Put the base A on a level surface and lock the rear
castors B.
2. Loosen the mast knob C, but leave it screwed into the
base A.
3. Insert the tube of the mast D into the hole of the base
A.
4. While supporting the mast assembly D, tighten the
mast knob C.
5. Place the leg spreader handle E onto its support F
and push the spring pin, to lock the handle E on its
support F.
Installing the actuator or hydraulic pump to the
boom
2 x 17 mm wrench
Setup
9
