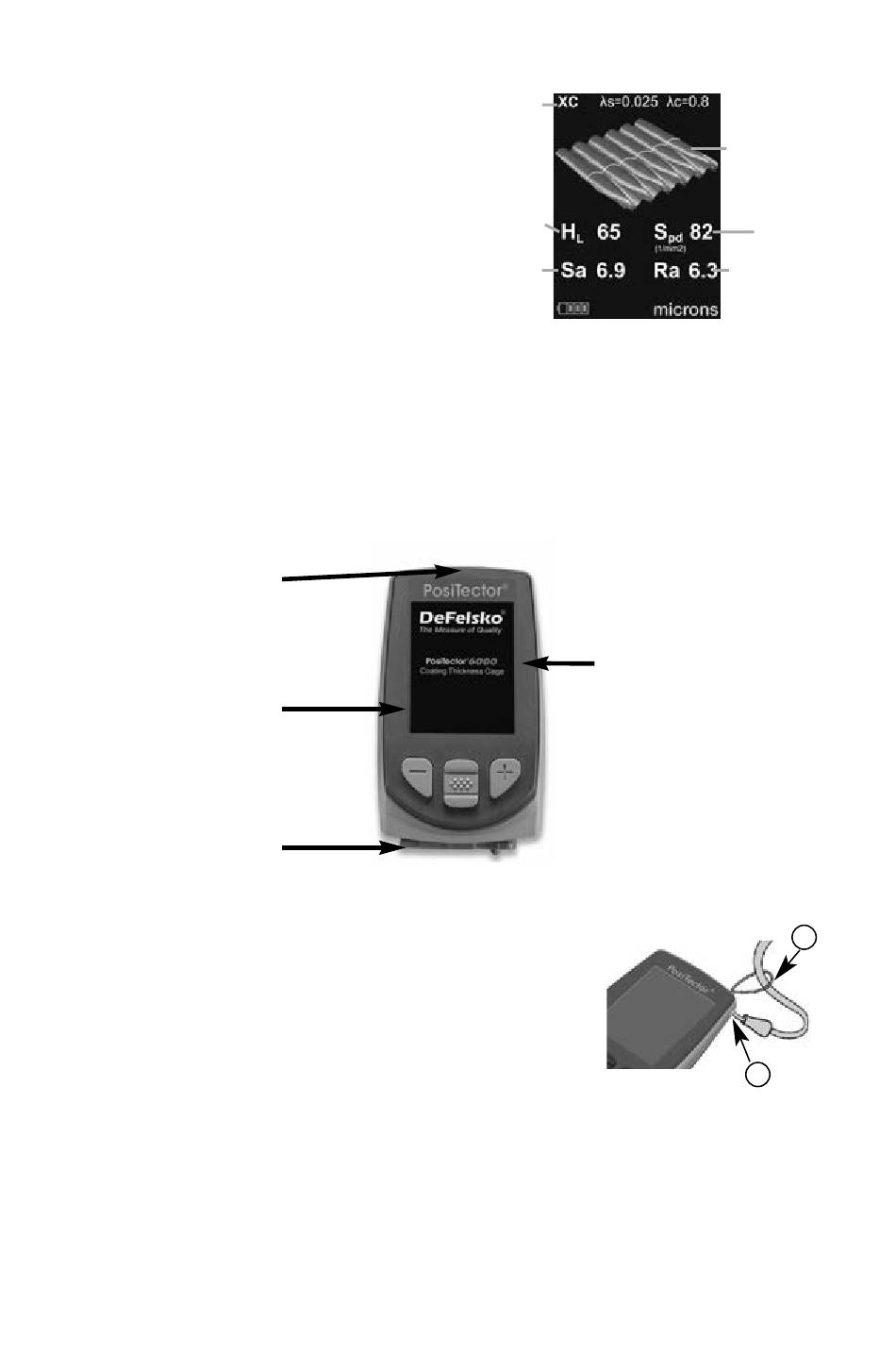

Typical Display
By Default, the PosiTector
RTR-3D displays a three-
dimensional (3D) image of
the replicated surface, H
Spd, Ra and Sa parameters.
Displayed parameters and
images may be modified from
the Analysis Setup (pg. 21)
and Setup (pg. 13) menus.
PosiTector bodies accept all interchangeable probes including
surface profile
environmental (DPM), Shore Hardness (SHD), soluble salt (SST), and
ultrasonic wall thickness (UTG) probes.
USB Port
Display
Probe
connector
Updates: Keep your PosiTector current with software updates
containing the latest features, functionality and
probe compatibility (see Updates pg. 28).
Wrist Strap: We recommend attaching and
wearing the supplied wrist strap.
Protective Lens Shield: The PosiTector display is covered with a
thin plastic film for protection against fingerprints and other marks
during shipment. This film, while usually removed before using the
Gage, can be left in place to protect against paint overspray or debris.
Replacements can be purchased.
Tape Grade
,
Linearized
L
Peak Height
Roughness
Average 3D

PosiTector body

(RTR/SPG), coating
3
Default Display
thickness (6000/200),
Connected probe
type is displayed
during power-up
T
3D Image
Areal Peak
Density
Roughness
Average 2D
2
1
