4. Measure

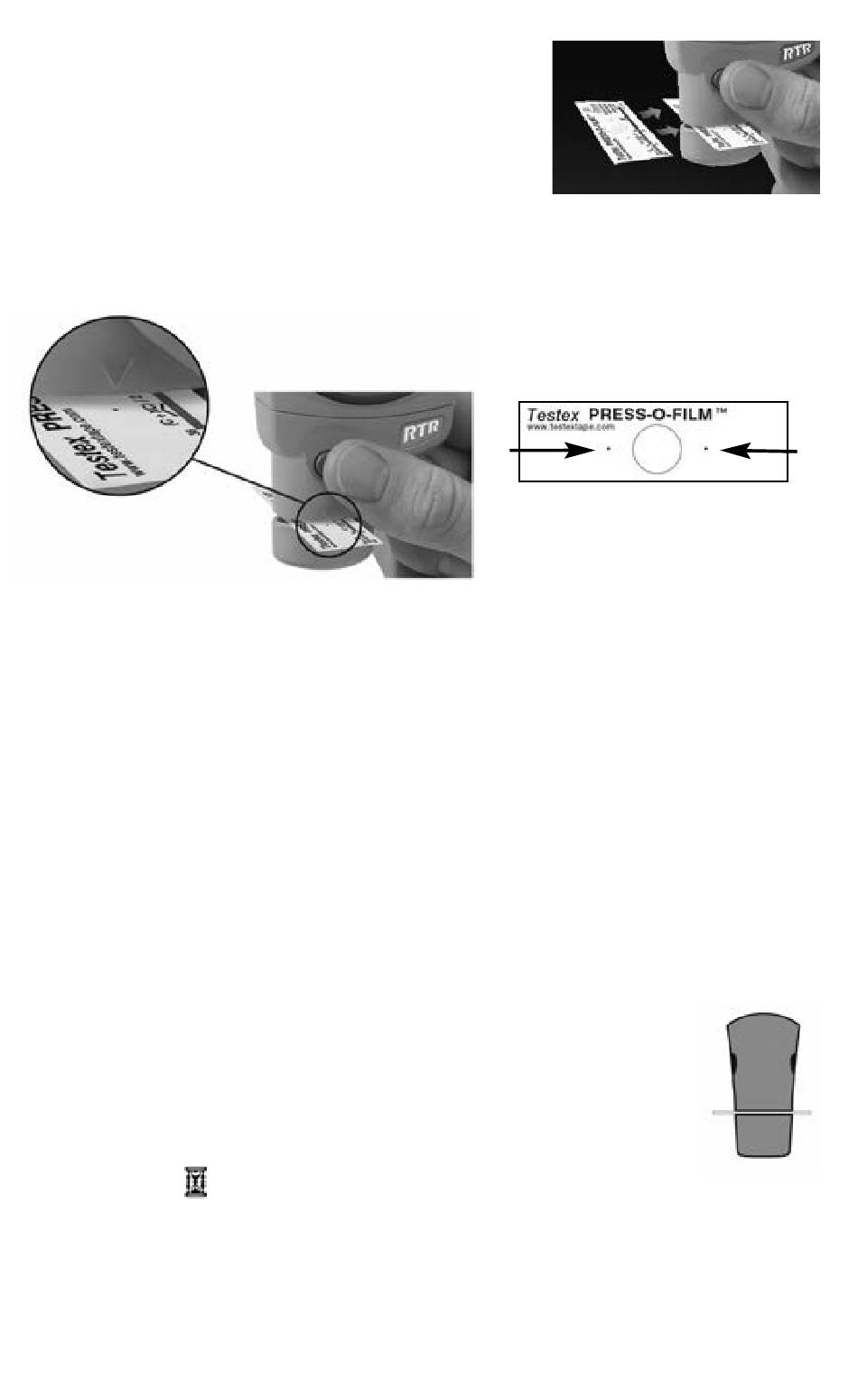

Insert the burnished replica tape into the
measurement opening. Ensure the tape is
properly positioned so that the burnished
region is centered within the opening in the
probe with the adhesive (sticky) side down.
To position the tape, move the tape to the back of the probe and align
the two dots (printed on replica tape) with arrows on both sides of the
measurement opening.
If you are using older tape that does not have the printed dots, simply
align by centering the tape within the measurement opening.
During measurement, a constant anvil pressure is applied to the
replica tape regardless of how hard the two buttons are pressed.
1. a) Firmly press both probe buttons simultaneously and hold
until the Gage beeps and the arrows point outward.
b) Remove your fingers from the tape and release both
probe buttons (do not hold or remove tape from gage).
c) Hold the gage steady while the probe measures the
compressed foam until the following graphic disappears.
Several images of the foam surface are captured during
each measurement. Image blurring will occur if the tape is
touched or removed during this time.
2. The surface profile height (H
immediately displayed. The tape can now be removed.
An hour glass
are calculated.
will display while 2D and 3D parameters
Align dots with arrows on probe
) measurement is
