Motor Connection - Lenze Global Drive 8200 vector Instructions De Montage

Show/Hide Bookmarks
5.2.2
Use low-capacity motor cables! (Core/core ≤ 140 pF/m, core/shield ≤ 230 pF/m)
The shorter the motor cable used, the better the drive behaviour!
PES HF-shield end by PE connection via shield clamp.

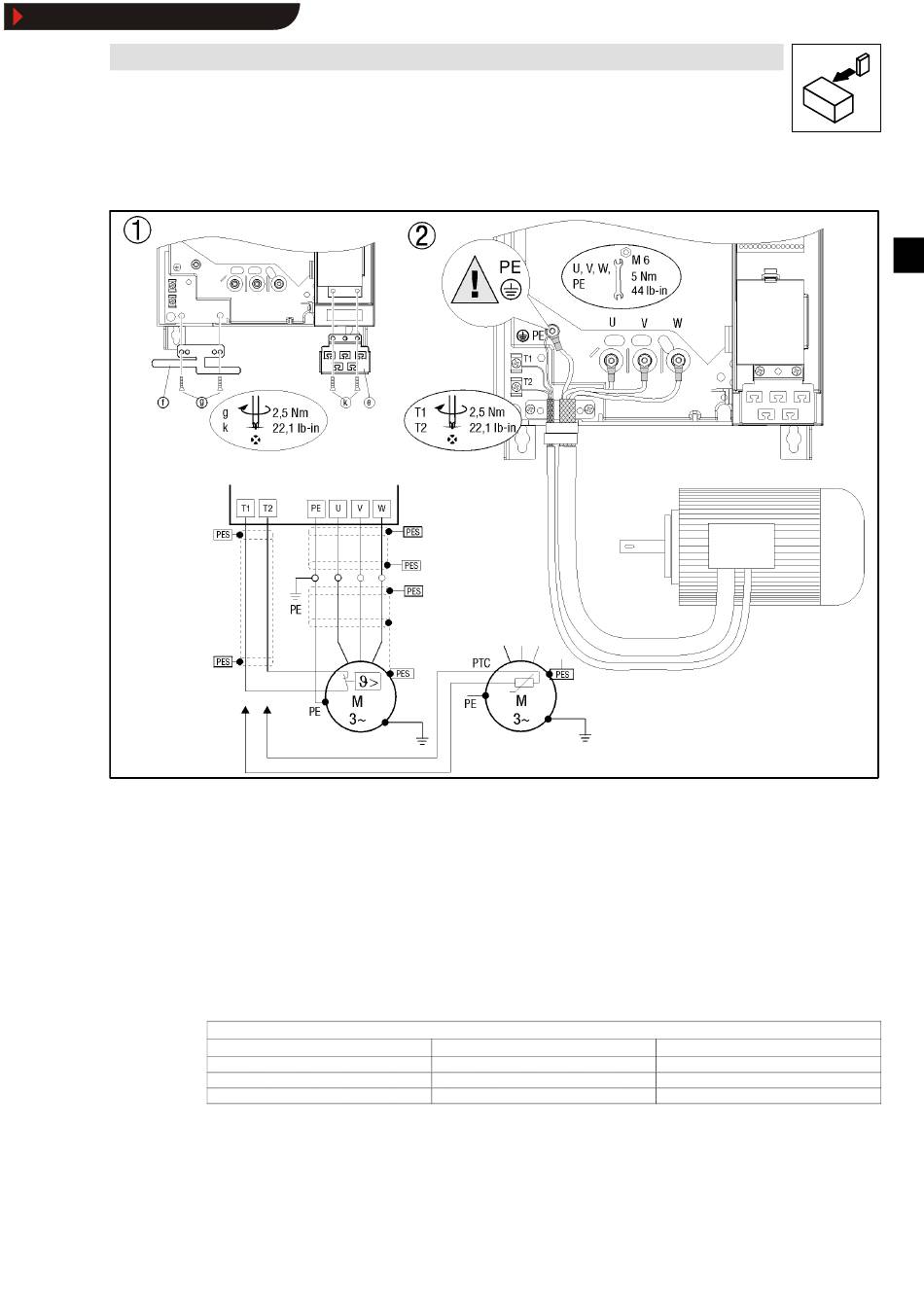

T1, T2 Connection terminals motor temperature monitoring with PTC thermistor or thermal contact (NC contact).
Route a separate cable (shielded) to X2/T1 and X2/T2 for the motor temperature monitoring.
Activate motor temperature monitoring with C0119 (e. g. C0119 = 1)!
Route the control and mains cables separately from the motor cable!
L

Motor connection

Cable cross-sections
Cable cross-sections U, V, W, PE
Type
E82EV153K4B
E82EV223K4B
E82EV303K4B
Electrical installation
Power connections E82EV153K4B ... E82EV303K4B
2
mm
10
16
25
EDK82EV903 DE/EN/FR 1.0
8200vec285
AWG
8
6
3
25
