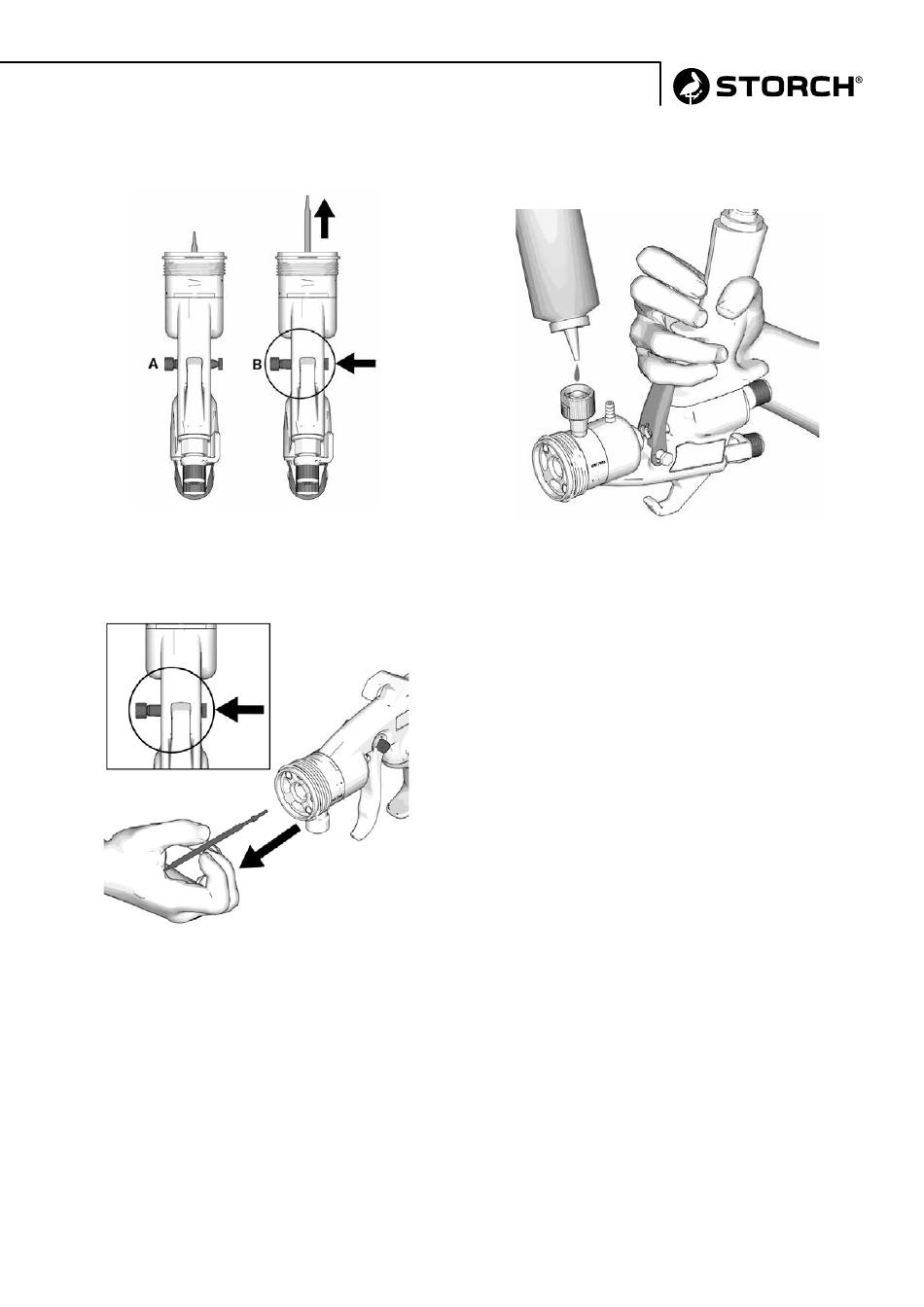

3. Move trigger slide from SPRAY position (A) to NEED-
LE REMOVAL position (B).
SPRAY posi-
tion
4. Remove needle from front of gun.
NOTICE:
Do not use a pliers to remove needle. Damage to the
needle tip will cause leaking at the fluid nozzle.
5. Wipe or flush fluid from nozzle and needle. If
necessary, clean retaining ring, air cap, air cap guide, and
spring.
NOTICE:
Do not use metal tools to clean the fluid nozzle or air cap
holes as this may scratch them, causing fluid leaks and a
distorted spray pattern.
6. Using a squeeze bottle, flush cleaning fluid through the
gun. Hold the gun upside down, pull the trigger, and dis-
pense cleaning fluid into the cup connection.
NEEDLE
REMOVAL
position
7. Re-install needle and move trigger slide from NEEDLE
REMOVAL position (B) to SPRAY position (A).
8. Trigger the gun and install spring, air cap guide, and
fluid nozzle. Install air cap and retaining ring.
