5.3
Using the Signal Clamp

Digisystem, How to Use the Signal Clamp

How to Locate a Service Using the Signal Clamp

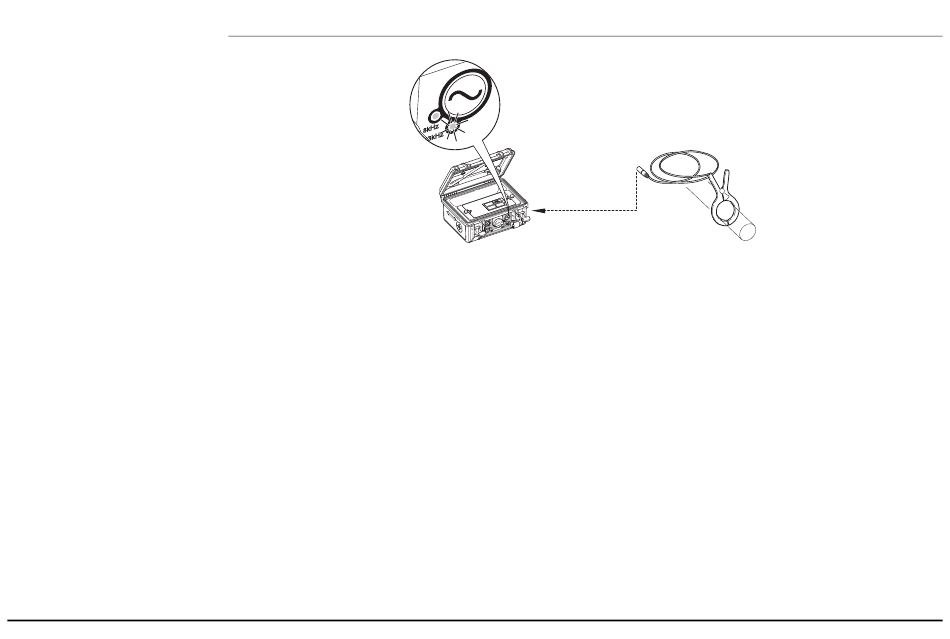

1. Connect the Signal Clamp to the Transmitter.
2. Open the jaws of the Signal Clamp and place around the service to be traced.
3. Switch the Transmitter on and select the required power output level, set the frequency
output to correspond with the clamp. A good level of tracing signal is indicated when
the audible tone and power output LED are continuous.
4. Trace the length of the service using the Locator set to the same frequency.
• Ensure the clamp jaws are fully engaged.
• Ensure the Transmitter's frequency output is comparable to that of the Signal Clamp.
Check the signal clamps type plate for the frequency rating.
3
1
2
