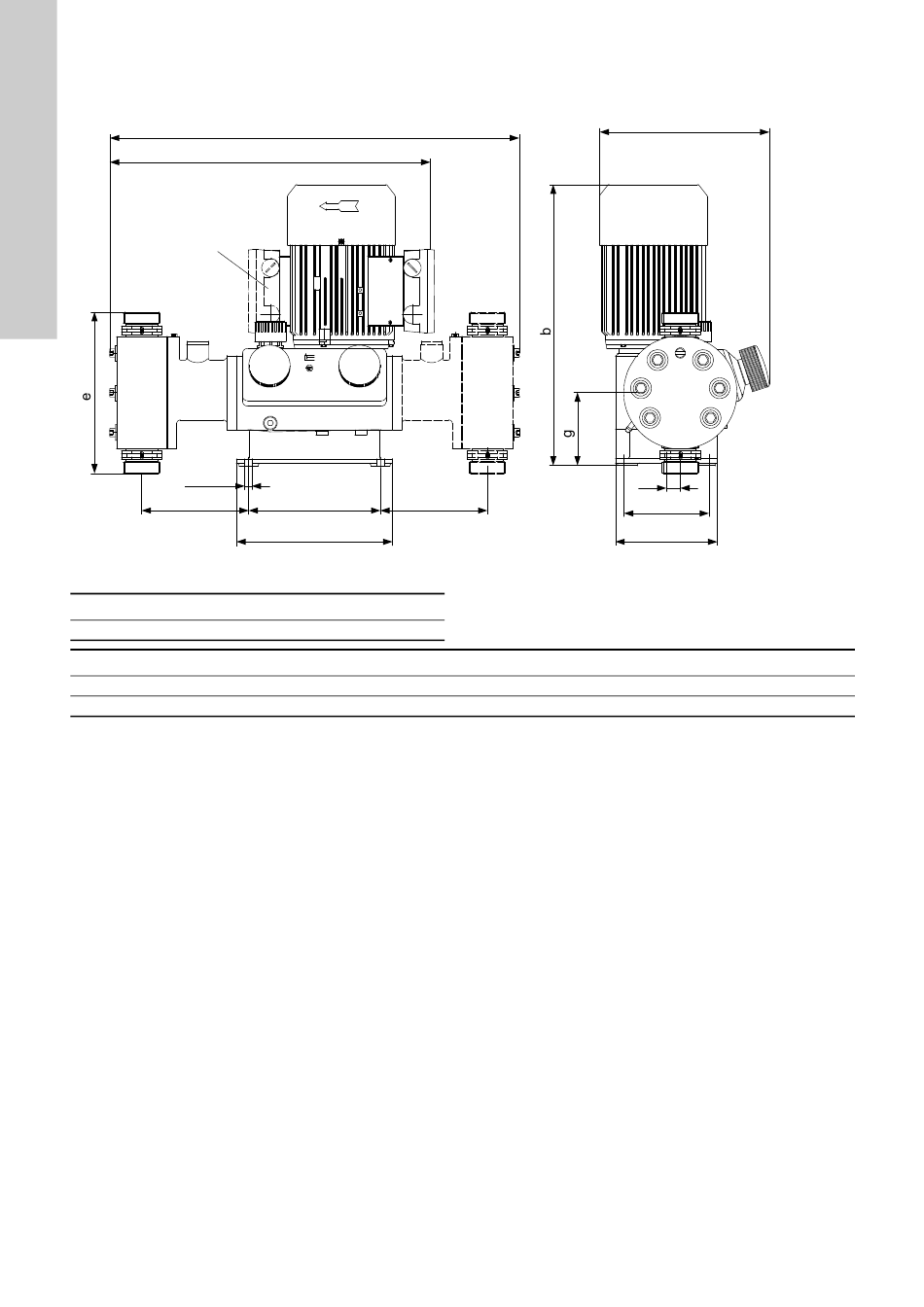

5.2 外部尺寸示意图
5.2.1 DMH 280, 281
Z1
∅ 9mm
k
图 8
DMH 280, 281
位置
说明
Z1
用于双泵,电机方向转动180 °
泵型
a
DMH 280
365
DMH 281
348
测量单位为毫米。
512
h
a
f
k
m
b
c
d
e
336
98
192
142
336
98
192
155
j
f
g
h
152
86
465
16
152
86
432
16
d
c
n
j
k
n
m
114
118
180
114
118
180
