Technical data

12. Technical data
NOTE: The data given on the rating plate
attached to the rear side of the luminaire
apply.

12.1 Electrical values

Designation
Voltage range
Mains version
Voltage range
SELV version
Frequency
Mains version
Power
consumption
Operating unit
Mains version
Tab. 6: Electrical values.

12.2 Classifications

Designation
Protection class
Mains version
Protection class
SELV version
Degree of
protection
Operating mode
Maximum permis-
sible ambient tem-
perature
Tab. 7: Classifications.
Value
100/120/220 –
240 V AC
18 – 30 V DC
50/60 Hz
The power con-
sumption is speci-
fied on the rating
plate of the lumi-
naire.
Integrated
Value
I
III
IP 67
Continuous
operation
The maximum
permissible ambi-
ent temperature
is specified on the
rating plate of the
luminaire.

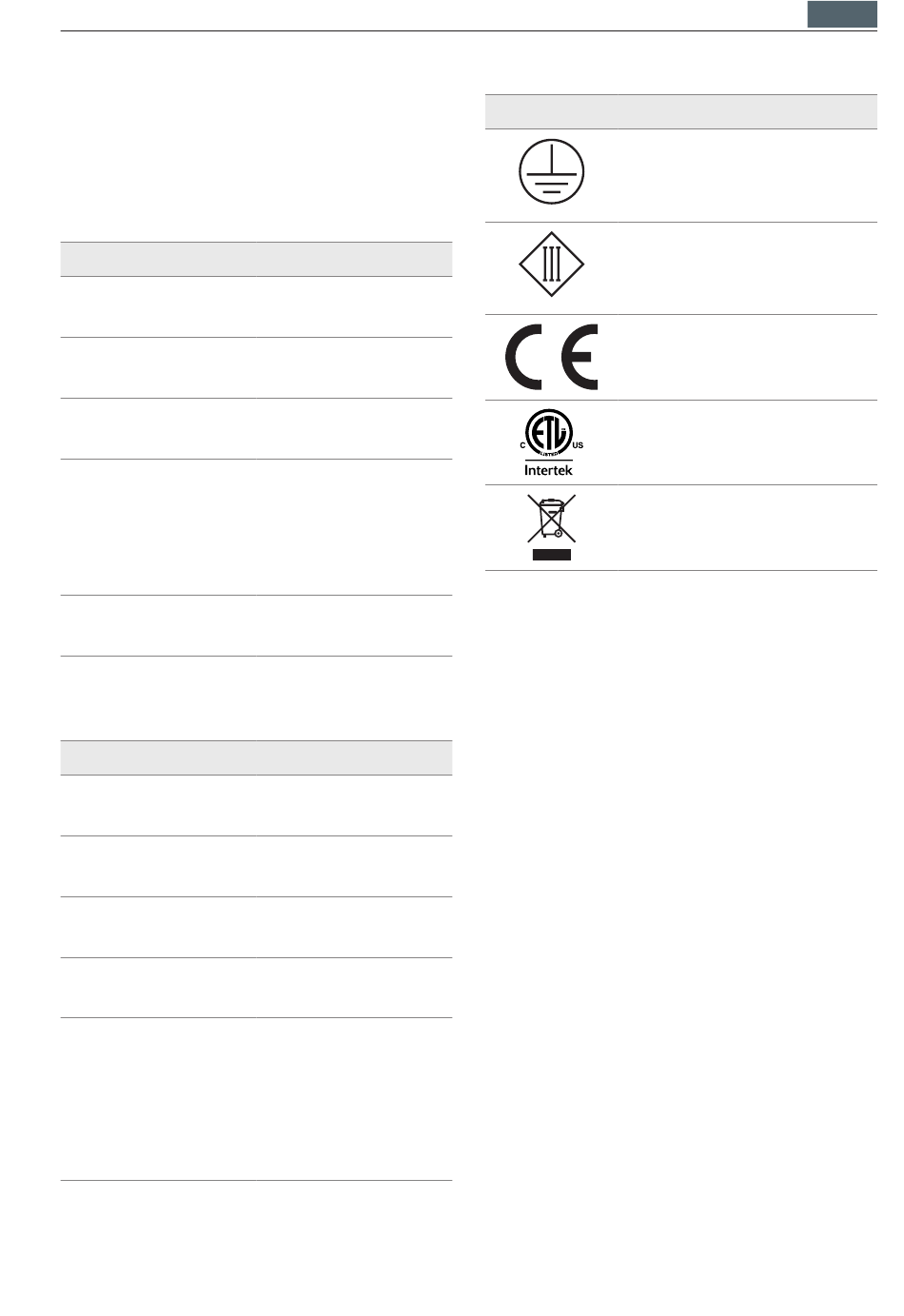

12.3 Symbols

Symbol Designation
Protection class I
Operation with protective
earth conductor
Protection class III
Operation with safety
extra low voltage (SELV)
CE conformity mark
ETL approval
Disposal in accordance
with the European WEEE
Directive
Tab. 8: Symbols.
