Fitting, Removing Spray Lance; Fitting, Removing High-Pressure Hose - Stihl RE 108 PLUS Notice D'emploi

English

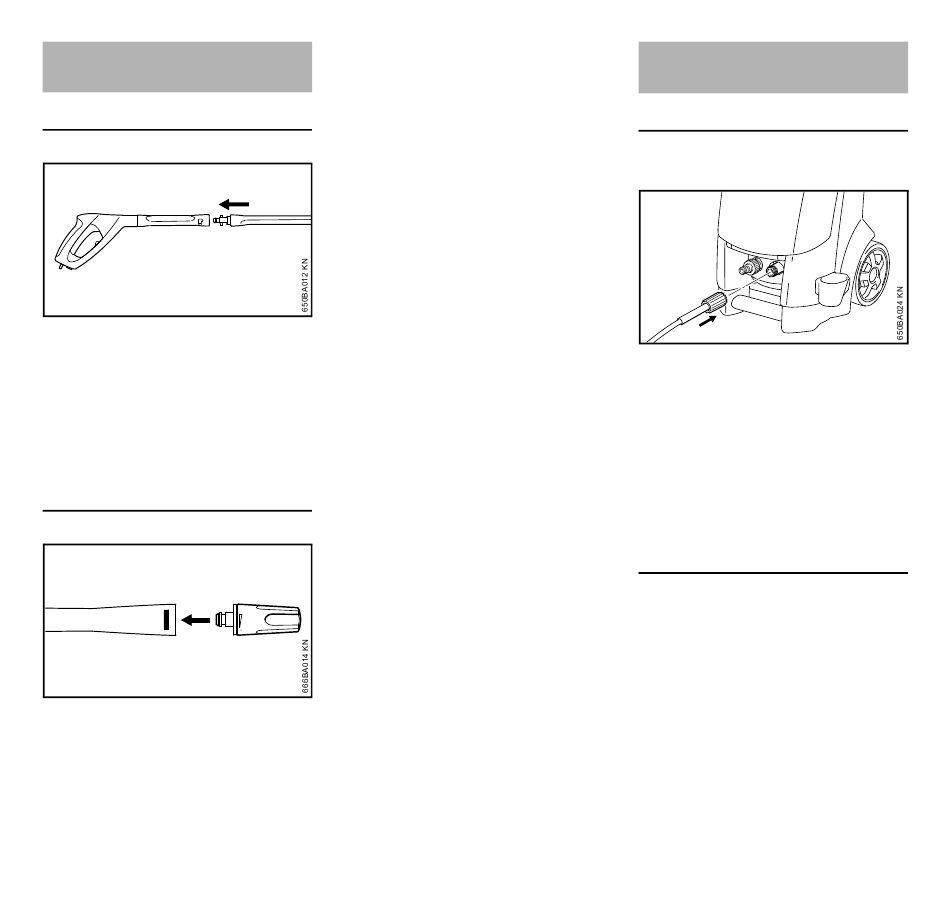

Fitting, removing spray lance

Spray lance
2
Press the spray lance (1) into the
N
mount on the spray gun (2), turn it
by 90° so that it engages
Removing
Press the spray lance (1) into the
N
mount on the spray gun (2), turn it
by 90° and pull it out of the mount
Nozzle
4
Insert nozzle (3) in spray lance until
N
the safety latch (4) engages – at
which point the safety latch button
will spring out again – the adjustable
fan jet nozzle has an anti-twist
device; orient this according to the
groove on the spray lance
34
Removing
Press the safety latch (4) and pull
N
out the nozzle (3)
1
3
+
Fitting, removing high-
pressure hose
RE 108, RE 118
Connecting the high-pressure hose
2
1
Push high-pressure hose onto the
N
connector (2)
Attach union nut (1) and screw it on
N
and tighten by hand
Disconnecting the high-pressure hose
Unscrew the union nut (1)
N
Pull high-pressure hose off of
N
connector (2)
RE 128 PLUS
The high-pressure hose is already
connected.
RE 108, RE 118, RE 128 PLUS
