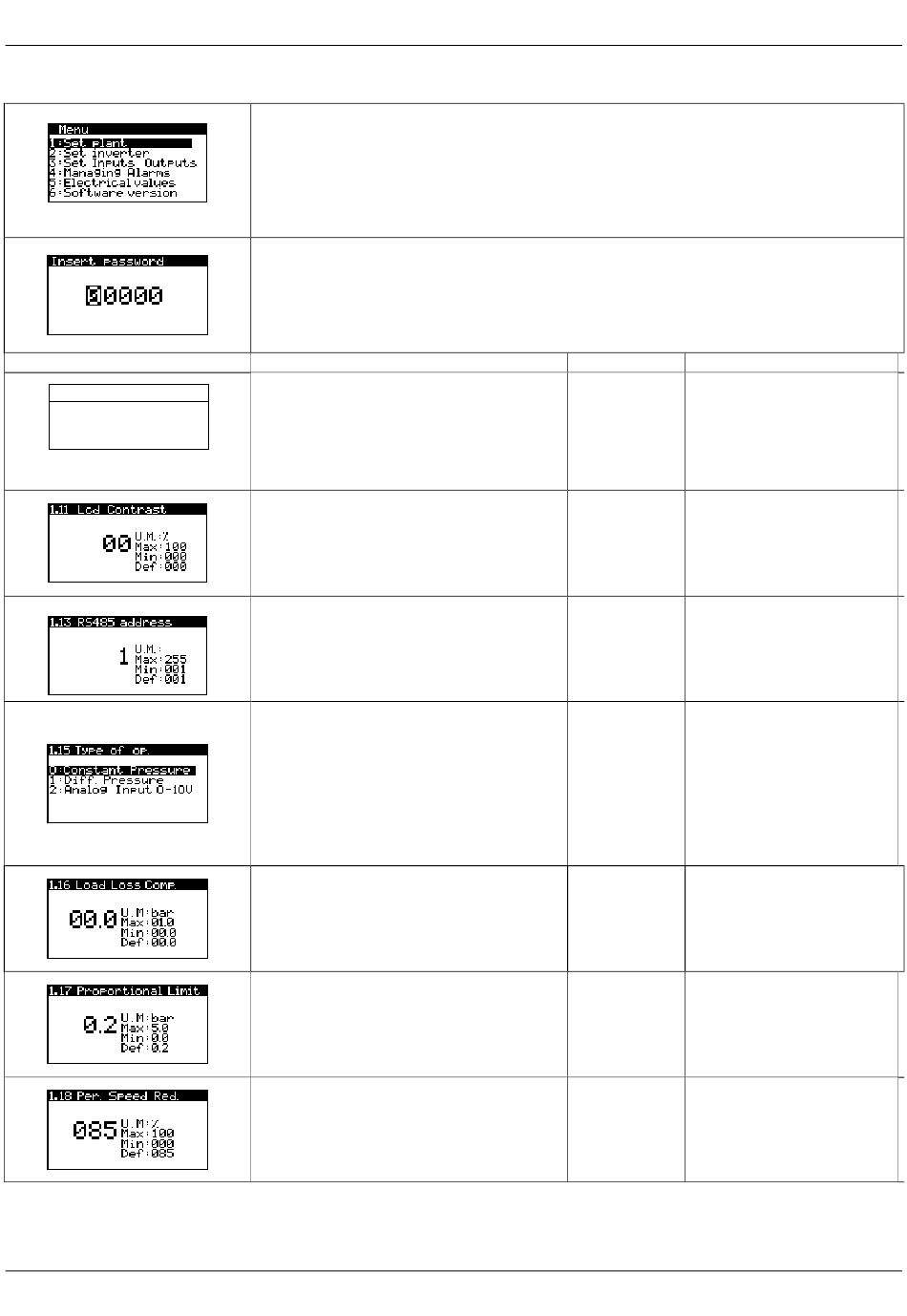

10.3 SYSTEM CONFIGURATION WITH TECHNICAL PASSWORD: 31100 (SET SYSTEM MENU)

Visualization
1.10 Language
0: Italian
1: English
2: French
3: Russian
ENGLISH
Viewing page of the configuration menu.
1: Set plant
2: Set inverter
3. Set inputs outputs
4: Managing Alarms
5: Electrical values
6: Software version
To enter the page of the menus press the button SB9 appears the page insert password.
Type in the user password 31100 and enter in the menu SET plants listed below.
Press SB6 –SB7 to scroll through pages of parameters.
Press SB8 –SB10 to decrease or increase the data.
Press SB9 to confirm the data.
Press SB1 to return to the HOME PAGE monitor.
Description
1.10 Language
Menu language.
0) Italian
1)English
2)French
3) Russian
1.11 LCD contrast.
Adjustin the LCD contrast.
1.13 RS485 address
Setting the number of the node in the
modbus supervision network.
1.15 Type of operation
System operation.
0) P-c, Constant pressure.
1) two relative transducers TRP1 –
TRP2 connected to the terminals: 1-
2-3 for the delivery pressure, 1-5-6
for the suction pressure.
2) P-c, as analog input 0-10V (AN1).
1.16 Load loss compensation
Automatic increase in bar of the Reference
Pressure, for switching on pumps in cascade
mode.
1.17 Proportional limit
Pressure band in bar, where the control unit
does not correct the pressure.
1.18 Periodic Minimum Speed Reduction
Set percentage of minimum speed below which
stopping of the pump supplied by the inverter
is enabled.
Field
0 - 3
00 - 100
1-255
0 - 2
00.0 - 01.0 bar
0.0 - 2.0 bar
000 - 100 %
42
Default
0
00%
1
0
00.0 bar
0.2 bar
085 %
