10. MONITOR PAGES

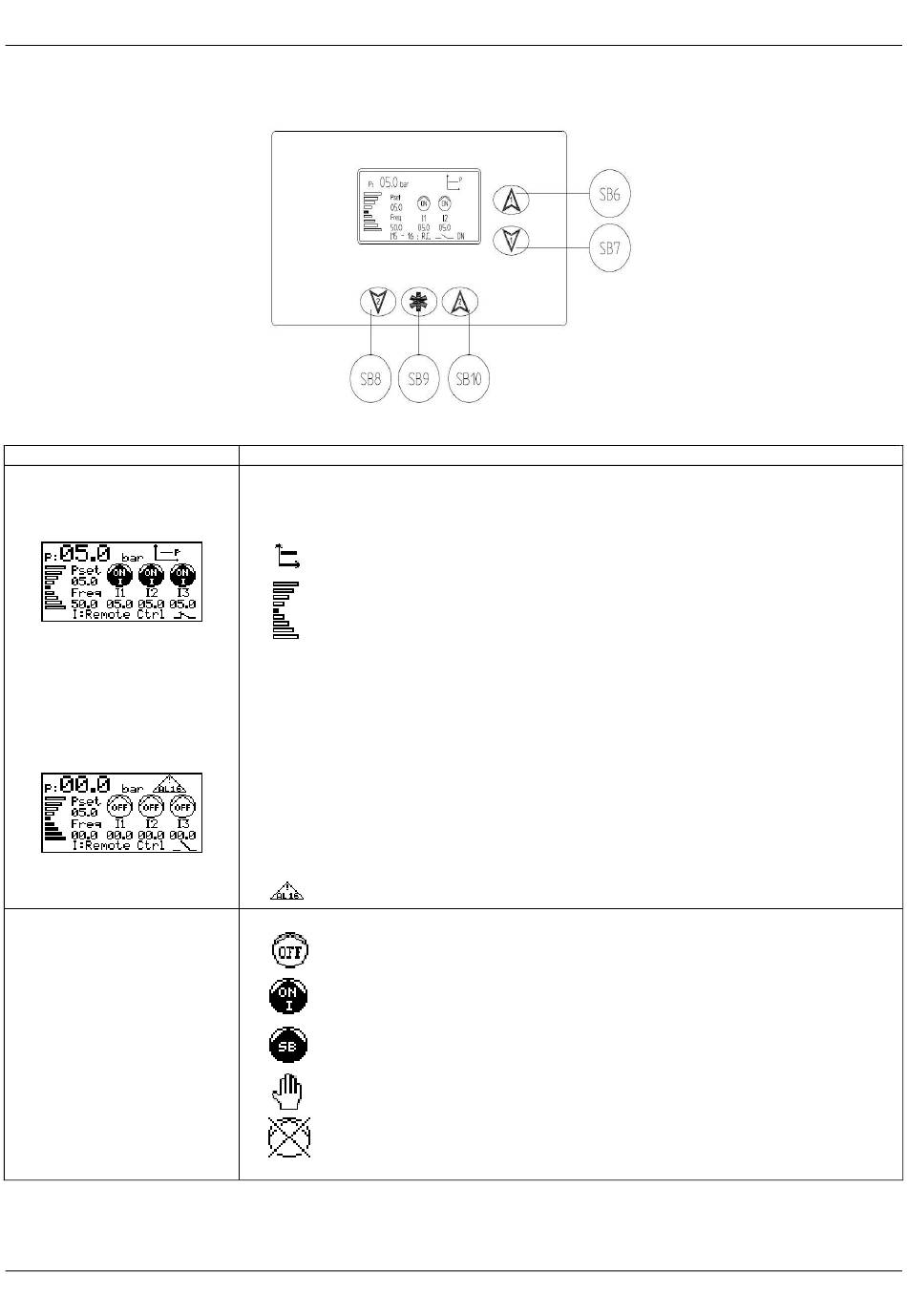

10.1 HOME PAGE MONITOR

PAGE No
HOME PAGE MONITOR
PUMPS IN MARCH
HOME PAGE WITH ALARMS
The main settings of the control panel are graphically summed up on the home page.
- P = instantaneous pressure in the system
- = type of regulation
- = Graph. bar of indication of the difference in pressure than the Pset
(value indicated highlight bar to 0.1 bar).
- Pset = set pressure of the plant
- Freq = frequency of the electropump supplied by the inverter.
- I1 = current absorbed by the pump one
- I2 = current absorbed by the pump two
- I3 = current absorbed by the pump three
- I: = Input ref. terminals 15-16: type of command to select on the par. 3.1
- = indication of the alarm present (complete list in Chapter 12)
Icons of the pump status:
- = all electropump operation excluded.
- = electropump supplied by the inverter.
- = electropump in stand-by ready to go.
- = electropump supplied by the operator in manual mode.
- = electropump excluded with permanent alarm.
ENGLISH
DESCRIPTION
