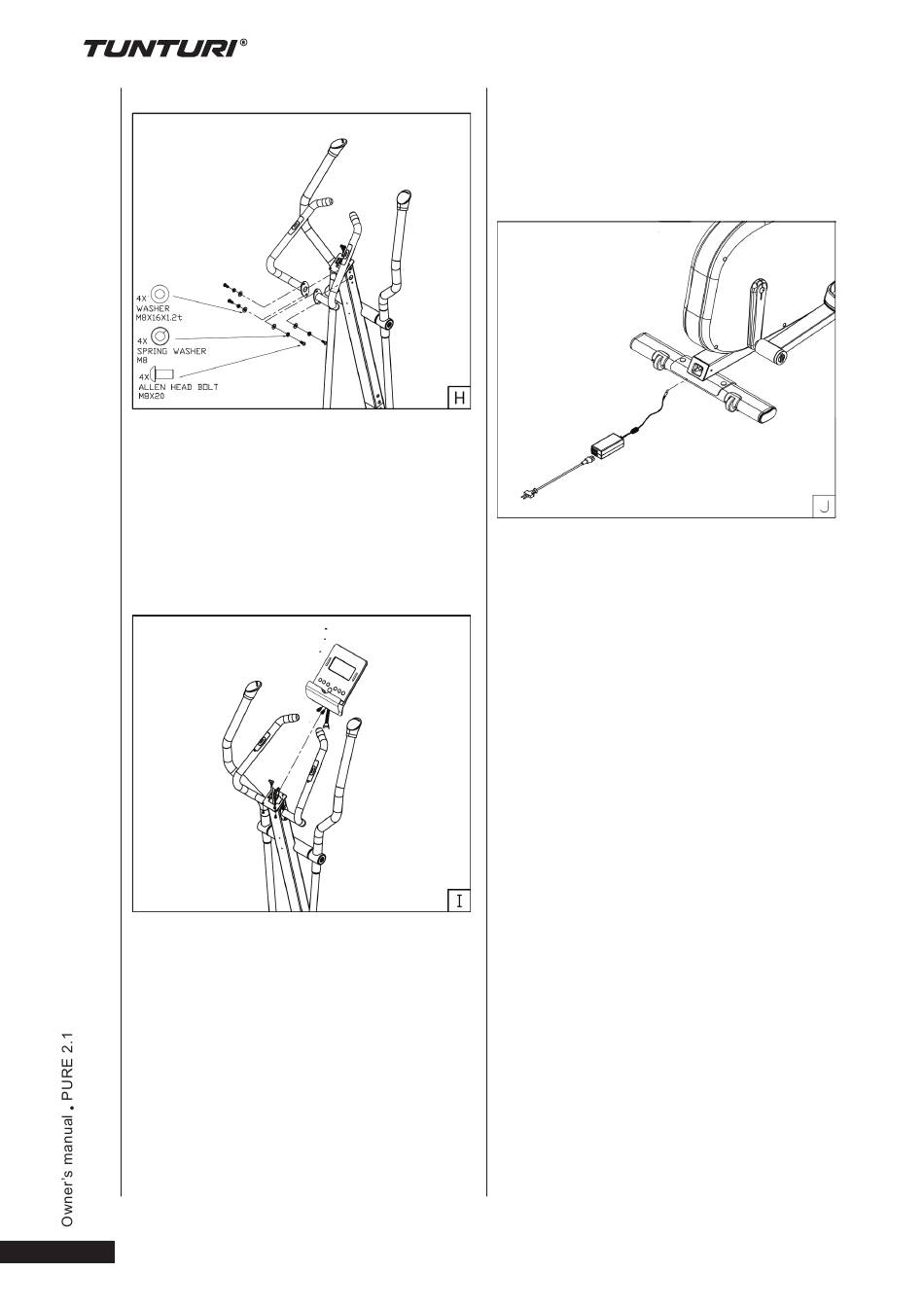

Assembly step H
• Fix both fixed handle bar tubes as
shown in picture.
Remark:
First put all screws/ bolts in correct place
before tightening them fully.
Assembly step I
• Guide the hand pulse wires coming
from the handlebar and data cable
coming form upright tube through the
console bracket hole.
• Remove the 4 assembly screws from
the consoles rear cover.
• Connect the hand pulse wires and
data cable with the console.
• Fix the console to the console
bracket.
8
Remark:
Avoid the wires to damage during
assembly
Assembly step J
• Attach the transformer to the cross
trainer before connect it to the wall
outlet.
Remark:
Always remove power cord when
machine is not in use.
