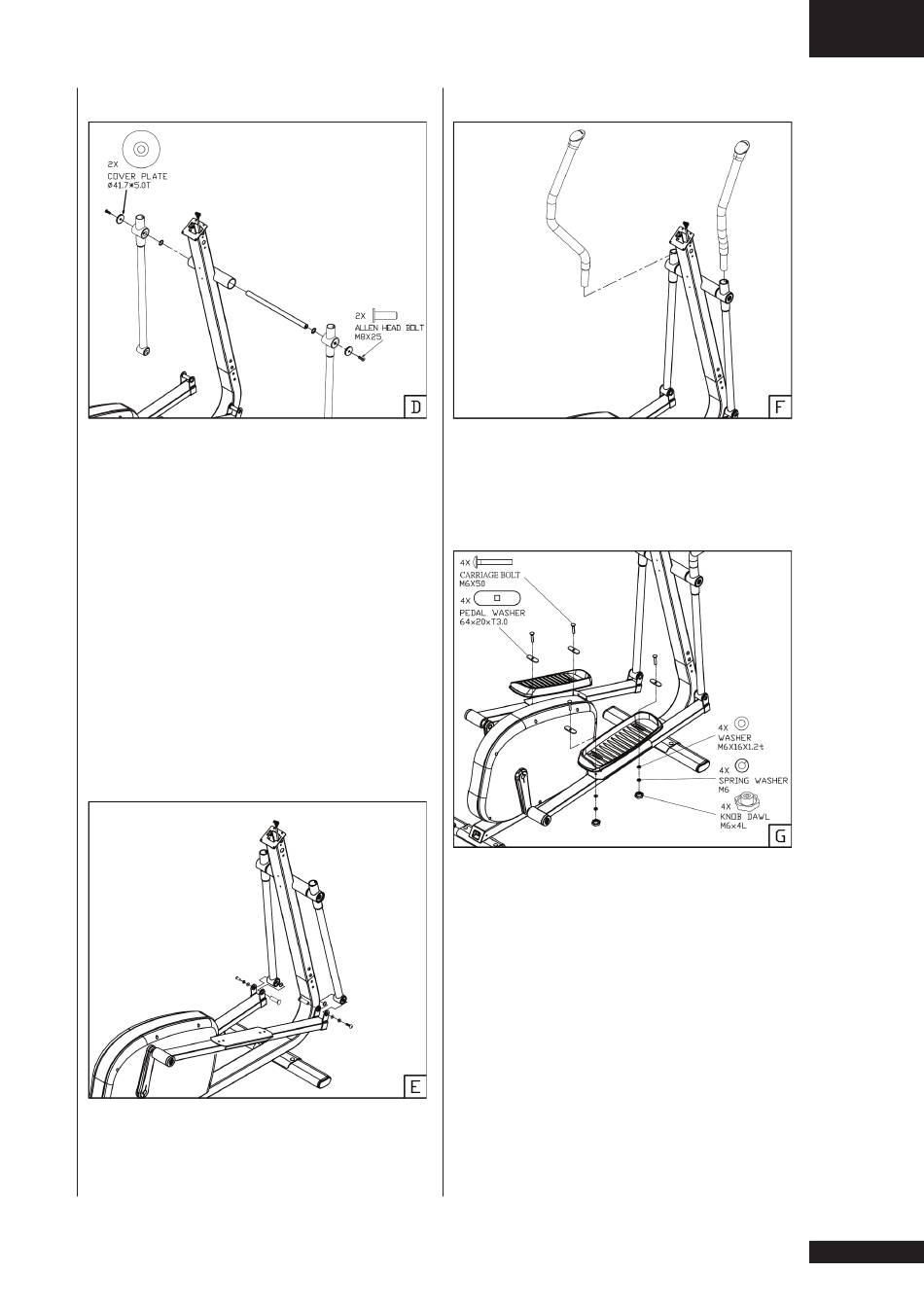

Assembly step D
• Push the metal shaft through the
bracket housing of the left arm.
Attach now the left arm to the front
frame tube by pushing the metal
shaft through the opening in the tube.
Push the right arm on the shaft and
lock it by tightening a large washer,
and a screw to the both ends of the
shaft. Tighten the arms using two
Allen keys.
Remark:
A think shim washer is in between both
swivel arms and front frame tube.
Assembly step E
• Fix pedal tube to lower arms as
shown in picture.
Owner's manual • Pure 2.1
Assembly step F
• Fix upper moving handle bars as
shown in picture.
Assembly step G
• Fix both foot rests to the pedal tubes
as shown in picture.
Remark:
There is a difference between right and
left pedal, do not misplace them.
