1
Min.13/16"
X
2
Min. 24"

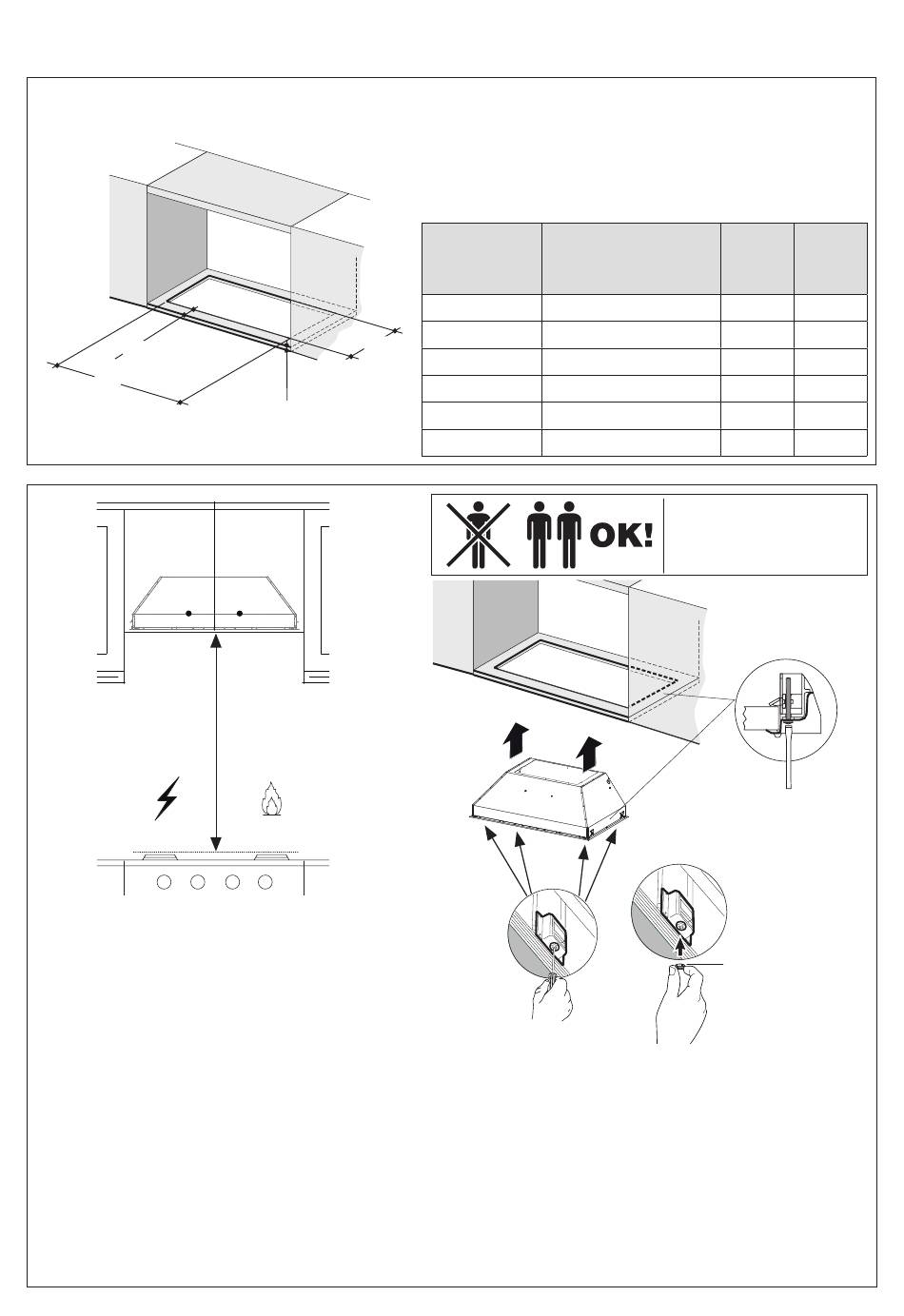

Install the Insert Hood through the cabinet cutout into the cabinet opening that has a minimum
height of 16 ". Allow for ducting.
The range hood is secured to the cabinet cutout by two spring loaded brackets, one on each
side of the range hood.
It is recommended that the Insert Hood is supported with a 3/4" wood base to insure proper
alignment of the two side clips.
After the Insert Hood is installed into the cabinet opening lock it into position by tightening the
indicated screws in each of the two side stoppers from underneath the Insert Hood.
Place the 4 stoppers (10) after securing the hood to the cabinet (Fig. 2A-B).
12
Installation Instructions
Y
Min. 3/4"
Min. 30"
Cut out the opening in the underside of the
cabinet as shown in Figure 1.
Outside
Model #
Hood
Dimension
30" x 19"
INPL3019SSNB-B
36" x 19"
INPL3619SSNB-B
36" x 22"
INPL3622SSNB-B
42" x 19"
INPL4219SSNB-B
48" x 19"
INPL4819SSNB-B
48" x 22"
INPL4822SSNB-B
2x
A
X
Y
28
19
-5/8"
-7/8"
34
19
-3/4"
-7/8"
34
22
-3/4"
-7/8"
40
19
-3/4"
-7/8"
46
19
-3/4"
-7/8"
46
22
-3/4"
-7/8"
Two people may be
required for installation.
2x
B
10
