External Triggering - Spypoint TINY-WBF Manuel D'utilisation

26
1.
2.
3.
4.
5.
6.
7.
8.
9.

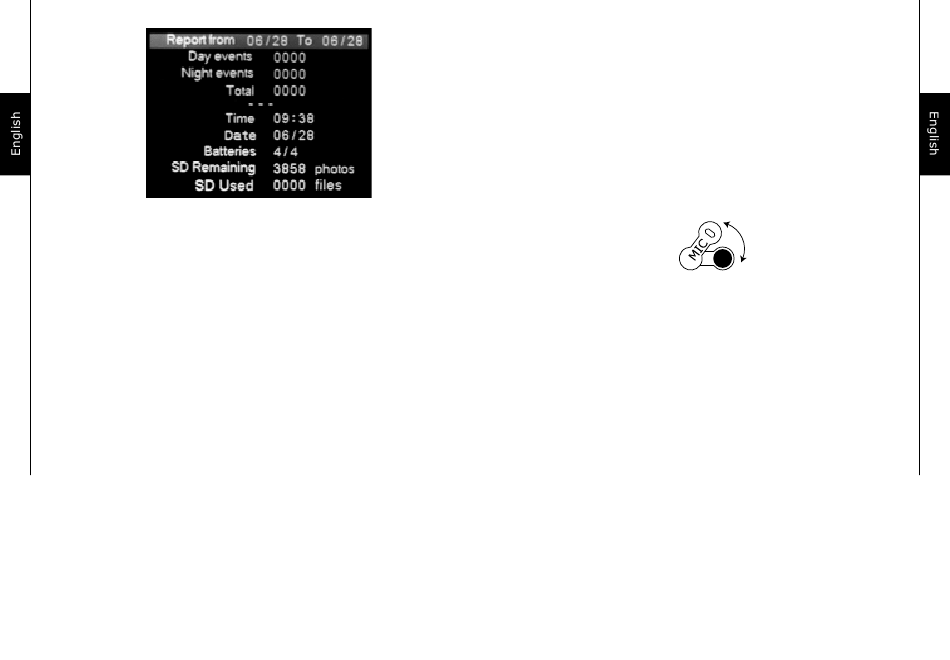

1. Beginning and end date of the report
2. Number of photos or videos taken during the day
3. Number of photos or videos taken at night
4. Total of photos or videos taken
5. Current time of the camera
6. Current date of the camera
7. Battery level (1/4 = low, 4/4 = full)
8. Remaining space on the SD card estimated by a
number of photos
9. Used space on the SD card (total number of
files, only includes photos and videos taken by a
SPYPOINT camera)
®

EXTERNAL TRIGGERING

1/8" input which triggers the taking of photos or videos using
a normally open contact. (Example: using a magnetic door
switch connected to an alarm system).
SOUND RECORDING
This camera offers the possibility to record the sound in
VIDEO mode. When the VIDEO mode is selected, the
camera automatically records the sound. On the bottom of
the camera, you can find a rubber cap with the inscription
MIC. If the user does not want to record the sound, the rubber
cap needs to stay in place. If the sound recording is required,
the user must lift the rubber cap and turned it slightly so that
the microphone receiver is completely cleared (See figure
below).
DOWNLOAD TO A COMPUTER
To transfer or view photos and videos on a PC, you must first
turn off the camera and connect the USB cable (supplied)
from the camera to your computer. The computer will
recognize the camera and will install the software itself.
Click on "My Computer" and select "Removable Disk".
Then click "DCIM" and "100DSCIM" to find all your photos
and videos.
Taking the SD card out of the camera and inserting it into the
computer port will achieve the same results. If no SD slot is
built into the computer, use a multi-card reader RD25-1 (sold
separately, see OPTIONS).
To upload or view photos stored in the BLACKBOX
receiver, proceed the same way using the SD memory card.
