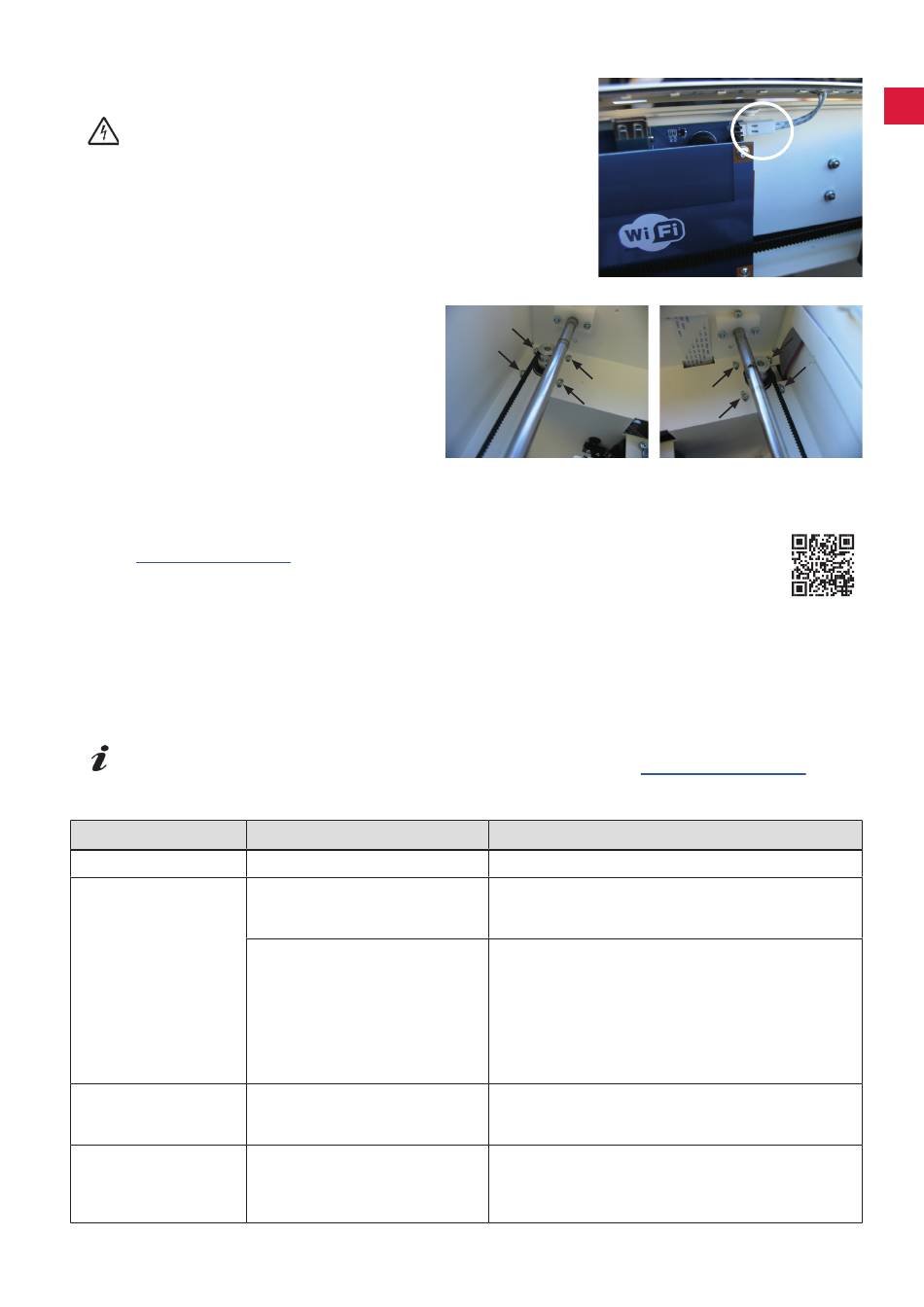

11.8 Tighten X- and Y-axis traction belt
⇒ Remove filament from the extruder, roll it
up on the filament spool and put it aside.
Switch off the unit!
Disconnect the power plug!
⇒ Remove the cover�
⇒ Unscrew the filament spool holder and
FMS system.
⇒ Remove all remainig screews of the upper
panel�
⇒ Carefully lift the upper panel at the front
and disconnect the interior lighting�
⇒ Put the upper panel aside�
⇒ Loosen the screws of the right or left belt
drive slightly and move drive to the back,
until the belt is tense�
⇒ Tighten the screws again�
⇒ Put upper panel back in place an connect
the interior lighting
⇒ screw on the upper panel�
11.9 Spare parts
You can find wear parts and spare parts in the spare parts list available online at
www.renfert.com/p918�
Enter the following item number: 17350000.
The components excluded from the warranty (wear parts, consumables) are
marked in the spare parts list�
The serial number, date of manufacturing and equipment version are shown on
the nameplate of the equipment�
12 Troubleshooting
The FAQ's correspond to the status at printing.
An up-to-date overview of the FAQ's can be found on our website at
Enter the following item number: 1735 0000.
Errors
No material flow.
Extruder blocked.
Printer "crashes" when
plugging in the jack plug
(fan) of the cover.
Error message:
Fatal error!
Short circuit on the 12 V
line!
Cause
• Extruder blocked.
• Temperature too low when loading
or unloading the filament.
• Not all the filament was removed
from the hotend when replacing/
removing�
• Glitch interrupts software�
• The cover fan connector is not prop-
erly inserted�
Corrective action
• Unblock the extruder, see Chap. 10.3.
• Choose the right temperature for the filament.
• When loading or unloading the filament, wait for the ex-
truder to fully reach the temperature�
• When removing the filament, proceed as follows:
- To facilitate filament extraction, press the extrude func-
tion for 5 seconds followed immediately by the reverse
function�
- Use your fingers to slightly withdraw the end of the
filament that is sticking out of the extruder. Extrusion is
necessary, all the previously melted filament must be
melted in the hotend�
• Only insert when the unit is switched off.
• Insert the connector completely�
• Only insert when the unit is switched off.
- 35 -
Fig. 82
