3 Product description

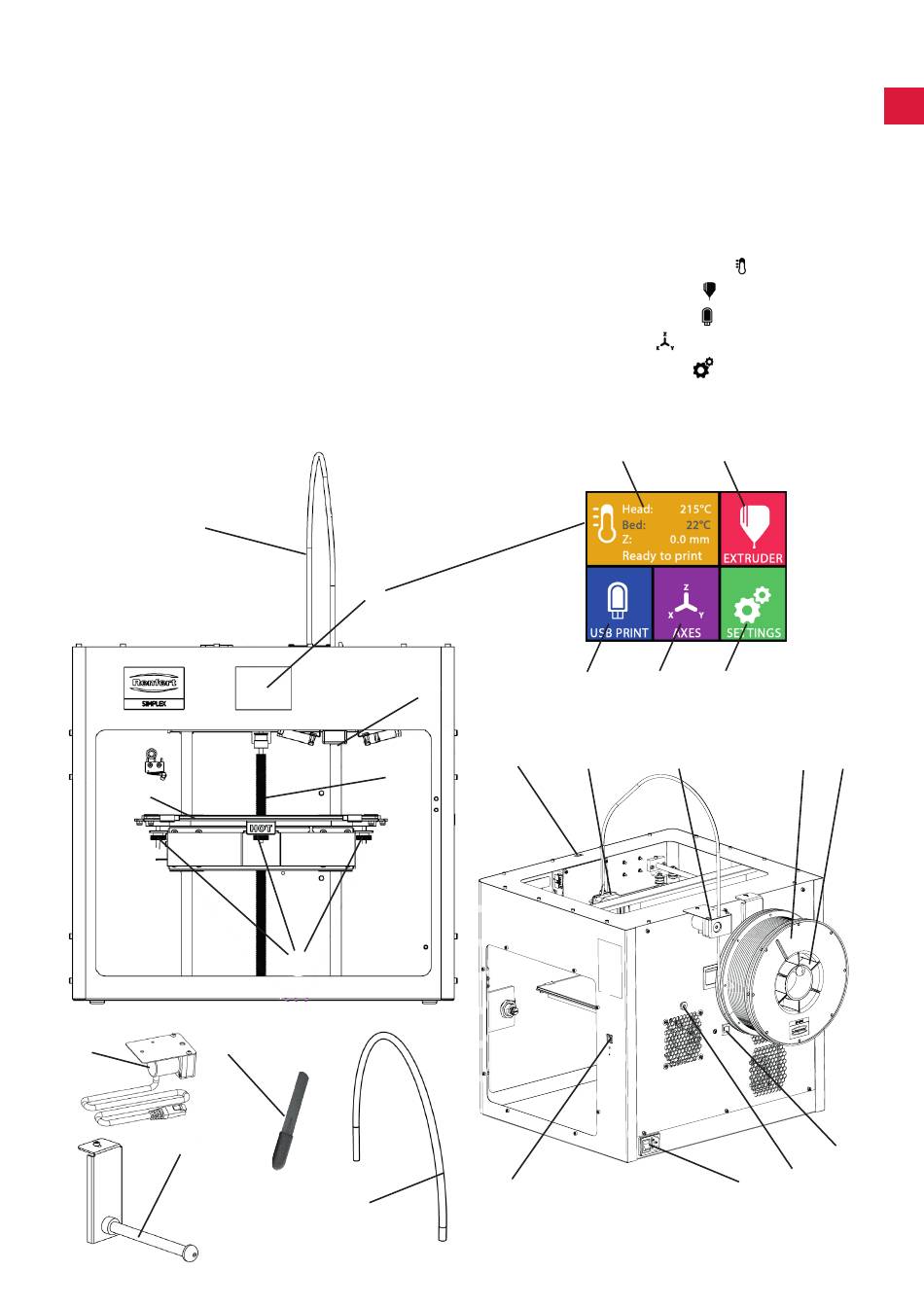

3.1 Assemblies and functional elements
1
Touchscreen LCD display / main menu
2 Filament guiding tube
3 Nozzle
4
Print bed (removable glass plate with
Kapton film applied)
5
Leveling knobs
6 Z-Axis rod
7 Filament spool holder
8
Filament spool
9 Filament sensor
10 Extruder
11 USB A port for USB flash drive
2
4
16
9
7
1
3
6
5
2
- 7 -
12 USB B port for connection to a PC
13 ON/OFF switch / connection for mains
power supply
14 Port for filament sensor
15 Port for cover fan
16 Level gauge
17 Menu - TEMPERATURE
18 Menu - EXTRUDER
19 Menu - USB PRINT
20 Menu - AXES
21 Menu - SETTINGS
17
19 20
11 10
12
18
21
9 7
8
14
15
13
Fig. 1
