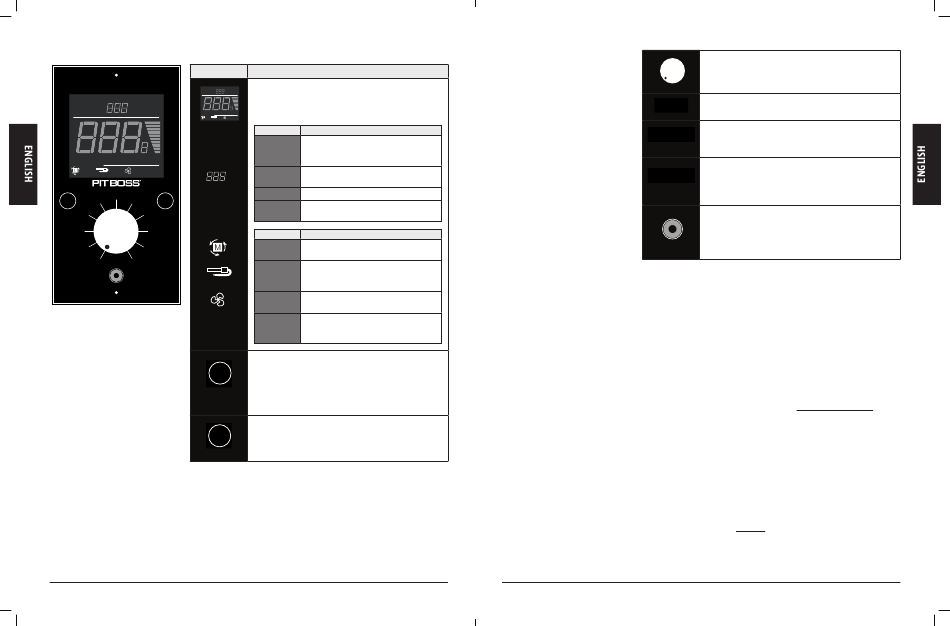

UNDERSTANDING THE CONTROL BOARD
CONTROL
MP1
FC
MP1
FC
Actual
IGNITOR
300
250
350
PRIME
225
200
SMOKE
HIGH
OFF
Actual
Set
MP1
NO
PELLET
FC
IGNITOR
Actual
300
250
350
F/C
PRIME
Set
225
400
200
450
475
SMOKE
OFF
HIGH
IGNITOR
MP1
FC
NO
PELLET
PRIME
Actual
Set
NO
PELLET
IGNITOR
200
300
250
350
F/C
PRIME
SMOKE
225
400
200
450
475
SMOKE
HIGH
OFF
12
DESCRIPTION
The LCD Screen is used as the information center for
your unit. The LCD screen will display the current grill
temperature (ACTUAL) and meat probe temperature (MP1).
See Troubleshooting for more information on error codes.
Set
NO
PELLET
READOUT
DESCRIPTION
F/C
400
Flashing
Indicates the unit was just connected to
450
Screen
AC power. Screen flashes three times, then
475
turns off.
MP1
Indicates the meat probe temperature
when probe is connected.
Actual
Indicates the current temperature of unit.
Set
Indicates the desired temperature that has
been selected.
MP1
ID
DESCRIPTION
FC
Motor
Indicates the auger motor is turning and
feeding pellets to the Burn Pot.
Ignitor
Indicates the igniter is on. When first
starting your unit, the igniter runs
continuously for the start-up cycle.
Fan
Indicates the fan is running. If the grill is in
operation, the fan is on.
Actual
Set
No Pellet
Indicates the auger motor is no longer able
to feed pellets to the Burn Pot. Likely, the
NO
PELLET
hopper is empty and requires refilling.
IGNITOR
Press and hold the Prime Button to activate an extra feed of
300
250
pellets to the Burn Pot. This can be used to add more fuel to
350
F/C
the fire just before opening the barrel lid, resulting in a quicker
225
heat recovery time. It can also be used to add more fuel while
400
smoking, to increase the intensity of clean smoke flavor.
Overfeeding the Burn Pot may damage to grill barrel paint.
450
The Temperature Switch Button is used to change the
temperature readout on the LCD Screen. Press the button
475
to switch to Fahrenheit (ºF) or to Celsius (ºC), as preferred.
Default is set to Fahrenheit.
OFF
HIGH
225
IGNITOR
200
PRIME
300
250
350
PRIME
225
SMOKE
225
200
OFF
200
SMOKE
SMOKE
OFF
HIGH
HOPPER PRIMING PROCEDURE
These instructions should be followed the first time the grill is ignited, and each time the grill runs out of pellets in the hopper. The
auger must be primed to allow pellets to travel through the length of the auger, and fill the Burn Pot. If not primed, the igniter
will timeout before the pellets are ignited, and no fire will start. Follow these steps to prime the hopper:
1.
Open the hopper lid. Make sure there are no foreign objects in the hopper or blocking the auger feed system at the bottom.
2. Remove all cooking components from the interior of the grill. Locate the Burn Pot in the bottom of the main barrel.
3. Plug the power cord into a power source. Turn the Temperature Control Dial to the SMOKE position. Check the following
items:
•
That you can hear the auger turning. Place your hand above the Burn Pot and feel for air movement. Do not place
your hand or fingers inside the Burn Pot. This can cause injury.
•
After approximately a minute, you should smell the igniter burning and begin to feel the air getting warmer in the
Burn Pot. The igniter tip does not glow red, but gets extremely hot and will burn. Do not touch the igniter.
4. Once verified that all electric components are working correctly, turn the Temperature Control Dial to the OFF position
to turn the unit off.
5. Fill the hopper with all natural barbecue wood pellets.
6. Turn the Temperature Control Dial to the SMOKE position. Press and hold the Prime Button until you see pellets on the
inside of the grill from the auger tube. Once pellets begin to drop into the Burn Pot, release the Prime Button.
7.
Turn the Temperature Control Dial to the OFF position to turn the unit off.
8. Re-install the cooking components into the main barrel. The grill is now ready to use.
FIRST USE – GRILL BURN-OFF
Once your hopper has been primed and before cooking on your grill for the first time, it is important to complete a grill burn-off.
Start the grill and operate at any temperature over 176°C / 350°F (with the lid down) for 30 to 40 minutes to burn-off the grill
and rid it of any foreign matter.
NO
PELLET
400
300
250
350
F/C
450
The Temperature Control Dial allows you to set your desired
F/C
400
temperature. Rotate the knob marker to select from Smoke,
475
any of the eight temperature presets, or High. Once rotating
400
the dial, the SET Temperature on the LCD Screen will adjust.
450
HIGH
The Off Setting on the Temperature Control Dial is the OFF
mode for the unit. The unit will not function on this setting.
450
475
The Smoke Setting on the Temperature Control Dial is the
lowest smoking mode for the unit. The grill operates at the
475
lowest temperature, without the fire going out.
OFF
HIGH
The High Setting on the Temperature Control Dial is the
highest heat level for the unit. The grill operates at the
highest temperature. When the lid is open, the grill will run
at this speed to compensate for the loss of heat in the barrel.
The plug-in connection port on the front of the Control Board
is for a Meat Probe. When the meat probe is connected,
the temperature is displayed on the LCD Screen. When the
meat probe is not in use, disconnect the adapter from the
connection port.
