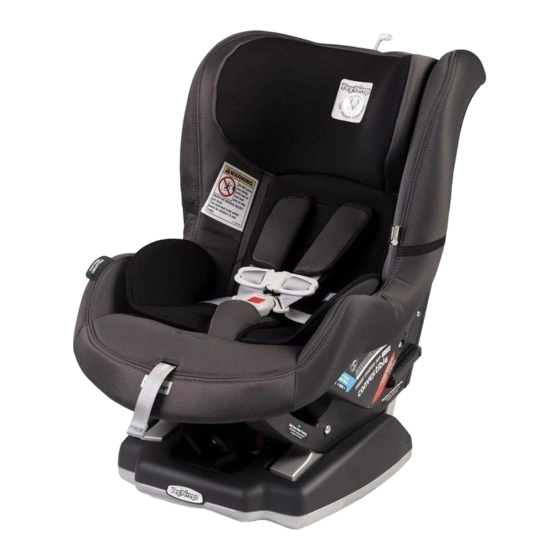

WARNING:
Do not install or use this child restraint
until you read and understand all
instructions in this manual. To avoid
serious injuries to your child, follow
the instructions carefully and be sure
to buckle your child using the 5-point
harness.
All manuals and user guides at all-guides.com
Weight limits in
rear-facing mode:
2.3 - 20.4 kg (5 - 45 lbs)
Maximum height:
119 cm (47 inches)
CA
Instructions for use EN
FICA1301I141
65
Weight limits in
forward-facing mode:
10 - 30 kg (22 - 65 lbs)
Maximum height:
125 cm (49 inches)
Publicité
Manuels Connexes pour Peg-Perego PRIMO VIAGGIO SIP 5-65 CONVERTIBLE
Sommaire des Matières pour Peg-Perego PRIMO VIAGGIO SIP 5-65 CONVERTIBLE
- Page 1 All manuals and user guides at all-guides.com Instructions for use EN FICA1301I141 WARNING: Do not install or use this child restraint Weight limits in Weight limits in until you read and understand all rear-facing mode: forward-facing mode: instructions in this manual. To avoid 2.3 - 20.4 kg (5 - 45 lbs) 10 - 30 kg (22 - 65 lbs) serious injuries to your child, follow...
- Page 2 All manuals and user guides at all-guides.com Table of Contents Introduction page 4 Warning page 5 Safety information page 7 Safety features page 8 Registration form page 10 Your child restraint page 12 Installing your child restraint in a vehicle: •...
- Page 3 All manuals and user guides at all-guides.com Table of Contents Installing your child restraint in a vehicle - Forward Facing mode: • FORWARD FACING mode using UAS Straps page 38 • FORWARD FACING mode using lap/shoulder belt (Type II) page 41 •...
- Page 4 All manuals and user guides at all-guides.com Introduction Thank you for choosing a PegPerego Primo Viaggio SIP Convertible. As with any other PegPerego product, your Convertible has been designed and certified by a dedicated team of engineers inside Peg Perego Research and Development Department. Your Convertible has been manufactured and assembled in a Peg Perego plant under certified quality procedures and using high quality materials from certified suppliers.
- Page 5 All manuals and user guides at all-guides.com Warning • When using Primo Viaggio Convertible in rear body making sure that the belt lies flat with facing mode, never place it in vehicle seats no slack. Use the chest clip to be sure that the equipped with an active air bag.
- Page 6 All manuals and user guides at all-guides.com Warning to your vehicle by means of lower universal In case of accident: if this car seat is involved anchorage system (UAS) in conjunction with in a car accident, it may be no longer safe a top tether, both provided with this product.
- Page 7 All manuals and user guides at all-guides.com Safety information • When placing your child in the seat, make use this unit after seven (7) years from the sure that bulky jackets or covers are removed. date of production labelled on the seat. This will ensure that the harness is used •...
- Page 8 All manuals and user guides at all-guides.com Safety features Primo Viaggio SIP Convertible is equipped with safety features specifically designed to protect your child in the event of a crash. In case of a severe crash, there are parts of your seat designed to bend or deform.
- Page 9 All manuals and user guides at all-guides.com Safety features PIVOT PINS: the base of the seat is hinged on steel pins that travel into plastic walls during a crash. REAR ROD: a steel rod in the back of the seat takes compression loads in a crash when the product is used in rear facing mode.
- Page 10 All manuals and user guides at all-guides.com Registration form Important! Child restraints could be recalled Model number, model name, date of for safety reasons. You must register this manufacturing, etc. are indelibly printed on a restraint to be reached in a recall. Send your label located in the picture shown here.
- Page 11 All manuals and user guides at all-guides.com Registration form Harness serial number is also indelibly printed on the buckle and the webbing and could provide useful information in case of accident or defects. See picture below for location explanation. - 11 -...
- Page 12 All manuals and user guides at all-guides.com Your child restraint Headpad adjustment strap EPS padded head panel Rebound 5 point harness Shoulder pads Locking clip storage Chest clip Newborn ller cushion Locko clip Buckle Base Recline handle Harness release button Top tether Instruction connector...
- Page 13 All manuals and user guides at all-guides.com Installing your child restraint in the vehicle VEHICLE CLASSES COMPATIBILITY Primo Viaggio SIP Convertible is designed to be installed in the following vehicle classes: . multi-purpose passenger vehicle . passenger car Primo Viaggio SIP Convertible shall not be installed in the following vehicle classes: .
- Page 14 All manuals and user guides at all-guides.com Installing your child restraint in the vehicle VEHICLE ATTACHMENT DESIGNS AND COMPATIBILITY Primo Viaggio SIP Convertible is designed to be installed in a vehicle in Rear Facing mode (RF) or in Forward Facing mode (FF). It can be installed using: 1) UAS System 2) Vehicle Seatbelts...
- Page 15 All manuals and user guides at all-guides.com Installing your child restraint in the vehicle 1) UAS SYSTEM: Primo Viaggio SIP Convertible is equipped with UAS connectors. They are located at each side of the child seat that attach to anchors located at the junction of the seat and backrest in your vehicle.
- Page 16 All manuals and user guides at all-guides.com Installing your child restraint in the vehicle 2) VEHICLE SEATBELTS: this child seat is designed to be installed with vehicle belts. There are many different vehicle belt designs. Unfortunately, some may be unsuitable for a safe installation of Primo Viaggio SIP Convertible.
- Page 17 All manuals and user guides at all-guides.com Installing your child restraint in the vehicle used for securing child seats. ALR mode is activated by extending the retractor all the way out until a "click" is heard, next let the seat belt (webbing) retract into the retractor to the desired length and stop the belt at that point.
- Page 18 All manuals and user guides at all-guides.com Installing your child restraint in the vehicle 2.1 Lap/shoulder belt (3-point) with Important Note: The lock off clips located Switchable Locking Retractor (ELR —> on the side of the Convertible seat are used to ALR) and free sliding latch plate.
- Page 19 All manuals and user guides at all-guides.com Installing your child restraint in the vehicle 2.2 Lap/shoulder belt (3-point) with Emergency Locking Retractor (ELR) and with a locking latch plate. This type of belt can be adjusted by pulling/releasing the strap at the latch plate adjuster.
- Page 20 All manuals and user guides at all-guides.com Installing your child restraint in the vehicle 2.3 Lap/shoulder belt (3-point) with Emergency Locking Retractor (ELR) and free sliding latch plate. This type of seat belt has a latch plate that moves freely along the belt; it will only lock in an emergency (sudden stop or crash) so you must use a Locking Clip to secure this type of belt.
- Page 21 All manuals and user guides at all-guides.com Installing your child restraint in the vehicle 2.4 Lap belt (2-point) with a locking latch plate. This type of belt can be adjusted by pulling/releasing the strap tail at the latch plate. Some vehicles may have seatbelts with large rigid buckles.
- Page 22 All manuals and user guides at all-guides.com Installing your child restraint in the vehicle 2.5 Lap belt (2-point) with Switchable Locking Retractor (ELR --> ALR). This type of seat belt has a latch plate that is sewn to the end of the belt. To activate ALR retractor for child seats installation, some vehicle models may require to pull the belt all the way through;...
- Page 23 All manuals and user guides at all-guides.com Installing your child restraint in the vehicle 2.7 NON COMPATIBLE VEHICLE BELT DESIGNS 2. Side facing seats WARNING: do not use Primo Viaggio SIP Convertible with the following vehicle belt design: 1. Lap/motorized shoulder belts. Belts mounted on the door 3.
- Page 24 All manuals and user guides at all-guides.com Installing your child restraint in the vehicle 3) TOP TETHER: The top tether is a strap attached at the top of the Primo Viaggio SIP Convertible shell equipped with a hook and an adjuster. When used in forward facing mode, your Primo Viaggio SIP Convertible is certified for use with a top tether in conjunction with a...
- Page 25 All manuals and user guides at all-guides.com Installing your child restraint in the vehicle Common locations Tether attachments are: the rear shelf in sedan type vehicle (a), the back of the seat backrest in minivans (b), the rear compartment in SUVs and other vehicles (c).
- Page 26 All manuals and user guides at all-guides.com Installing your child restraint in the vehicle To use the tether, open the plastic pouch, detach the hook from its rear attachment. Press on the adjuster button in order to lengthen the strap to the required length. When not in use, keep the tether attached in the plastic pouch.
- Page 27 All manuals and user guides at all-guides.com Installing your child restraint in the vehicle WEIGHT AND DIMENSION RANGE REAR FACING MODE • Use rear facing with children who weigh between 2.3 and 20.4 kg (5 - 45 lbs); and whose maximum height is 119 cm (47 inches).
- Page 28 All manuals and user guides at all-guides.com Installing your child restraint in the vehicle PROPER LEVELLING OF CHILD RESTRAINT IN REAR FACING MODE When properly installed according to the following sections, the child restraint used in rear facing mode should have a backrest angle of 35°...
- Page 29 All manuals and user guides at all-guides.com Installing your child restraint in the vehicle - Rear Facing mode REAR FACING MODE USING UAS STRAP 1. Recline the child restraint to the rear facing position as shown in the picture. To recline the child restraint, pull the handle located below the front edge of the shell (A) as shown in detail.
- Page 30 All manuals and user guides at all-guides.com Installing your child restraint in the vehicle - Rear Facing mode 5. Attach the lower connectors to the lower anchors of your vehicle located at the joint line between seat and backrest. Check your vehicle owner’s manual to learn what is the best place for your child restraint.
- Page 31 All manuals and user guides at all-guides.com Installing your child restraint in the vehicle - Rear Facing mode IMPORTANT NOTE Unless where specified differently, lower anchors (UAS) may be used for a child whose weight is less than 18 kg (40 lbs). However most car lower anchors can withstand much greater forces.
- Page 32 All manuals and user guides at all-guides.com Installing your child restraint in the vehicle - Rear Facing mode REAR FACING MODE USING LAP/ SHOULDER BELT (TYPE II) 1. Recline the child restraint to the rear facing position as shown in the picture. To recline the child restraint, pull the handle located below the front edge of the shell (A) as shown in detail.
- Page 33 All manuals and user guides at all-guides.com Installing your child restraint in the vehicle - Rear Facing mode IMPORTANT: check inside the shell openings; verify that the waist portion of the belt is placed as shown in the picture. 4. Buckle the vehicle belt and check under the seat that the adjuster strap is not entangled with the vehicle seat belt.
- Page 34 All manuals and user guides at all-guides.com Installing your child restraint in the vehicle - Rear Facing mode 6. The picture shows the correct belt path when the child restraint is attached to the vehicle using a lap/shoulder belt. Make sure the child restraint is properly leveled as explained on page 28.
- Page 35 All manuals and user guides at all-guides.com Installing your child restraint in the vehicle - Rear Facing mode REAR FACING MODE USING LAP BELT (TYPE I) 1. Recline the child restraint to the rear facing position as shown in the picture. To recline the seat, pull the handle located below the front edge of the shell (A) as shown in detail.
- Page 36 All manuals and user guides at all-guides.com Installing your child restraint in the vehicle - Rear Facing mode IMPORTANT: check inside the shell openings; verify that the belt is placed as shown in the picture. - 36 -...
- Page 37 All manuals and user guides at all-guides.com Installing your child restraint in the vehicle - Rear Facing mode 4. Check under the seat that the adjuster strap is not entangled with the vehicle seatbelt. 5. Push the seat firmly into the vehicle seat (1) and pull the vehicle belt (2) in order to tighten the seat, eliminating any slack.
- Page 38 All manuals and user guides at all-guides.com Installing your child restraint in the vehicle - Forward Facing mode Important! Remove newborn filler cushion in forward facing mode (see page 53). Important! Do not use rebound bar in forward facing mode. FORWARD FACING MODE USING UAS STRAPS 1.
- Page 39 All manuals and user guides at all-guides.com Installing your child restraint in the vehicle - Forward Facing mode 4. Attach the lower connectors to the lower anchors of your vehicle located at the joint line between the seat and the backrest. Check your vehicle owner’s manual to learn what is the best place for your car .
- Page 40 All manuals and user guides at all-guides.com Installing your child restraint in the vehicle - Forward Facing mode IMPORTANT NOTE Unless where specified differently, lower anchors (UAS) may be used for a child whose weight is less than 18 kg (40 lbs). However most vehicle lower anchors can withstand much greater forces.
- Page 41 All manuals and user guides at all-guides.com Installing your child restraint in the vehicle - Forward Facing mode WARNING: Do not use lockoff clips in forward facing mode for children whose weight is less than 11 kg (25lbs). Important! Remove newborn filler cushion in forward facing mode (see page 46).
- Page 42 All manuals and user guides at all-guides.com Installing your child restraint in the vehicle - Forward Facing mode 5. Push the child restraint firmly into on the side of the Convertible seat are used to the vehicle seat and pull the vehicle belt enhance the stability during normal use.
- Page 43 All manuals and user guides at all-guides.com Installing your child restraint in the vehicle - Forward Facing mode Important! Remove newborn filler cushion in forward facing mode (see page 53). Important! Do not use rebound bar in forward facing mode. FORWARD FACING MODE...
- Page 44 All manuals and user guides at all-guides.com Installing your child restraint in the vehicle - Forward Facing mode 5. Push the child restraint firmly into the vehicle seat (A) and pull the vehicle belt (B) in order to tighten the seat, eliminating any slack.
- Page 45 All manuals and user guides at all-guides.com Installing your child restraint in an aircraft This child restraint is certified for use in an aircraft. Most airlines should allow the use of a restraint which is labelled for use according to FAA regulations. However, due to the size and weight of the Primo Viaggio SIP Convertible, it is recommended that the airline is contacted...
- Page 46 All manuals and user guides at all-guides.com Installing your child restraint in an aircraft 2. Installation in forward facing mode: please refer to page 43 for proper belt fit. Use of lockoff clips is not required. After installation make sure that the child restraint is properly levelled and safely secured on the aircraft seat.
- Page 47 All manuals and user guides at all-guides.com Securing your child into the child restraint HARNESS USE AND ADJUSTMENT 1. This child restraint uses a 5 point harness system to secure your child. Before placing your child in the seat, push the release button (A) and pull the shoulder straps (B) as shown in the picture.
- Page 48 All manuals and user guides at all-guides.com Securing your child into the child restraint 4. Put your child in the child restraint with his/ her bottom and back flat against the child restraint. Bring the two shoulder straps over your child’s shoulders.
- Page 49 All manuals and user guides at all-guides.com Securing your child into the child restraint 6. To adjust the shoulder strap level, from bottom to top, pull the ring strap located on top of the headrest until the panel is disengaged and able to move. Once the desired position is reached, make sure that the panel is properly latched.
- Page 50 All manuals and user guides at all-guides.com Securing your child into the child restraint 8. The harness is equipped with a chest clip. This device is used in order to guarantee that the shoulder harness is positioned correctly on the shoulders. It prevents the shoulder straps from falling down in an accident.
- Page 51 All manuals and user guides at all-guides.com Securing your child into the child restraint 10. When the harness is tightened, check that the chest clip is at arm pit level. If necessary remove the shoulder pads (attached with Velcro) as they are not considered as safety feature.
- Page 52 All manuals and user guides at all-guides.com Securing your child into the child restraint CROTCH STRAP ADJUSTMENT 12. Your Primo Viaggio SIP Convertible is equipped with a repositionable crotch strap. The child restraint is assembled with the crotch strap located in the forward position (A).
- Page 53 All manuals and user guides at all-guides.com Securing your child into the child restraint 13. To complete the operation, put the soft cover on the crotch strap. in the new position by sliding the buckle through the openings in the upholstery and in the croch protection.
- Page 54 All manuals and user guides at all-guides.com Cleaning and maintenance Your child restraint requires minimum cleaning and maintenance. Do not clean with harsh products or solvents. Keep moving parts clean. Clean plastic parts with a damp cloth. Do not clean harness and latching mechanisms with water. Protect it from extreme cold, water, rain and sun exposure.
- Page 55 All manuals and user guides at all-guides.com Cleaning and maintenance 2. Remove head panel padding following the procedure (1, then 2). Take care of the soft white EPS insert. 3. Undo the lower part of upholstery and remove it from the crotch strap. The crotch portion of the harness does not need to be removed.
- Page 56 All manuals and user guides at all-guides.com Cleaning and maintenance 5. Check that the adjuster is free of food particles or debris that could prevent correct functioning. 6. Remove the padding from the bottom to the top making sure that the side impact wings white EPS are not bent or broken in the process.
- Page 57 All manuals and user guides at all-guides.com Cleaning and maintenance 7. To reassemble the upholstery, start from the head panel opening as shown in the sequence. Then put the head panel cover on. Pull shoulder straps up through slots in the bottom of the upholstery.
- Page 58 All manuals and user guides at all-guides.com Cleaning and maintenance MAINTENANCE OF THE PADDING Brush the fabric parts to remove dust. • Machine wash at a maximum of 90 F (30°C) with a delicate wash setting and short spin cycle. •...
- Page 59 All manuals and user guides at all-guides.com How to tell if the seat has been in a crash The Primo Viaggio SIP Convertible can withstand minor crashes without any damage. If the child restraint has been in a crash, you must determine if it is suitable for further use. First review the five guidelines listed below and then refer to the next section titled "clear signs the child restraint has been in a crash".
- Page 60 All manuals and user guides at all-guides.com How to tell if the seat has been in a crash 1. Tether Bar: The tether bar is located on the back of the seat shell near the top (open the tether plastic storage pouch if so equipped). The tether bar will bend during a crash.
- Page 61 All manuals and user guides at all-guides.com How to tell if the seat has been in a crash 3. Pivot Bolts: The pivot bolts are located on each side of the seat. The pivot bolts will move closer to the base during a crash. There should be about 1 inch of space between the pivot bolt and the top of the base (green illustration).
- Page 62 All manuals and user guides at all-guides.com Replacement Parts 1) BSACOB* NOTE: Spare parts available in different 2) BRICOB* colors* to be specified when ordering. 3) MUCI0076GR 4) BAKCOB* - 62 -...
- Page 63 All manuals and user guides at all-guides.com FR_Français EN_English Déclaration de conformité Declaration of conformity Dénomination du produit Product name PRIMO VIAGGIO SIP CONVERTIBLE 5.65 PRIMO VIAGGIO SIP CONVERTIBLE 5.65 Identi cation du produit Product reference number IMCO* IMCO* Reference Standards (origin) Standard de référence (origine) CMVSS 571-213 (CA) CMVSS 571-213 (CA)
- Page 64 All manuals and user guides at all-guides.com...
- Page 65 All manuals and user guides at all-guides.com...
- Page 66 All manuals and user guides at all-guides.com...
- Page 67 All manuals and user guides at all-guides.com...
- Page 68 All manuals and user guides at all-guides.com...
- Page 69 All manuals and user guides at all-guides.com...
- Page 70 All manuals and user guides at all-guides.com...
- Page 71 All manuals and user guides at all-guides.com...
- Page 72 All manuals and user guides at all-guides.com...
- Page 73 All manuals and user guides at all-guides.com...
- Page 74 All manuals and user guides at all-guides.com...
- Page 75 All manuals and user guides at all-guides.com...
- Page 76 All manuals and user guides at all-guides.com...
- Page 77 All manuals and user guides at all-guides.com...
- Page 78 All manuals and user guides at all-guides.com...
- Page 79 All manuals and user guides at all-guides.com...
- Page 80 All manuals and user guides at all-guides.com...
- Page 81 All manuals and user guides at all-guides.com...
- Page 82 All manuals and user guides at all-guides.com...
- Page 83 All manuals and user guides at all-guides.com...
- Page 84 All manuals and user guides at all-guides.com...
- Page 85 All manuals and user guides at all-guides.com...
- Page 86 All manuals and user guides at all-guides.com...
- Page 87 All manuals and user guides at all-guides.com...
- Page 88 All manuals and user guides at all-guides.com...
