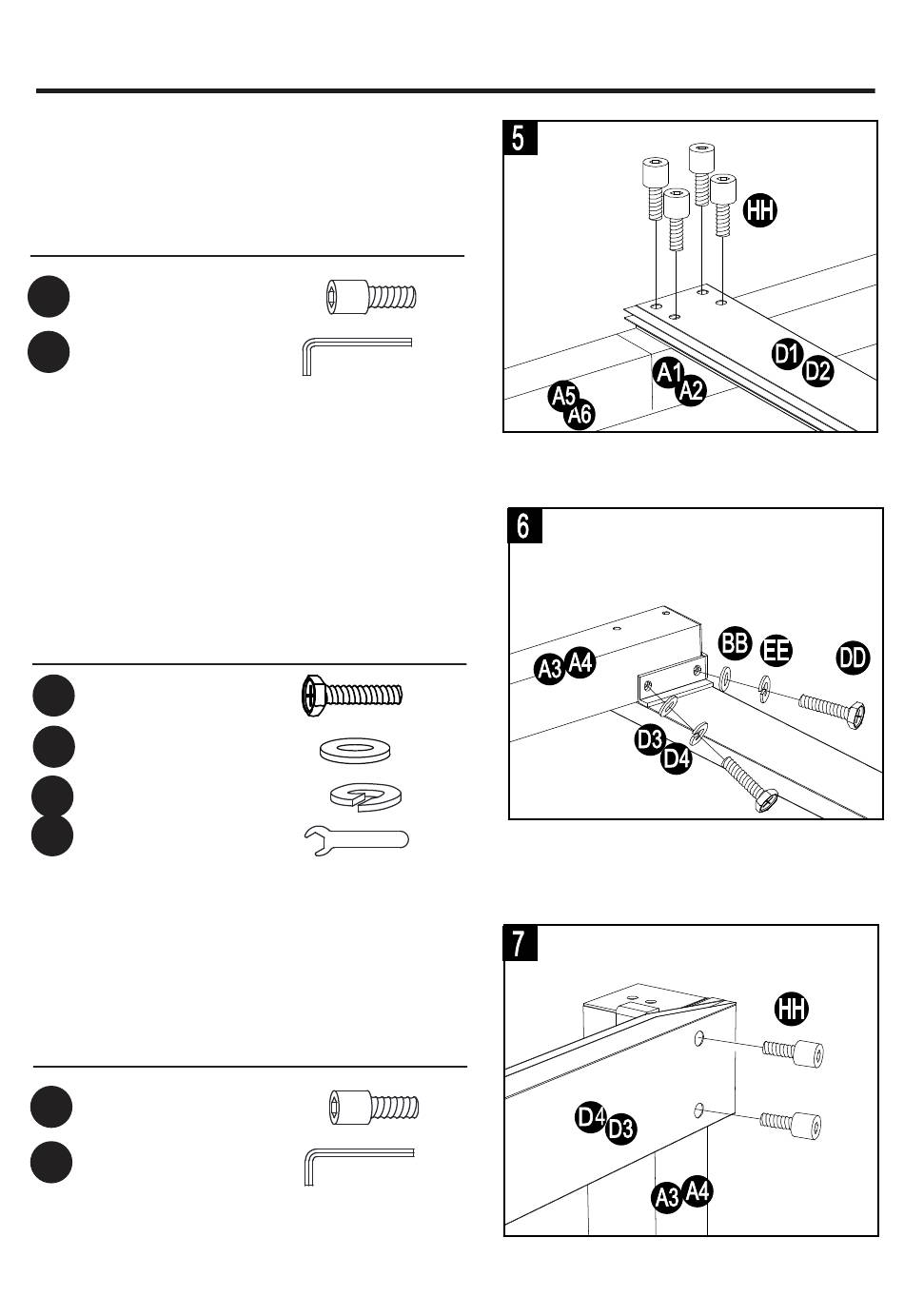

ASSEMBLY INSTRUCTIONS
5. Attach the other end of side beams (D1/
D2) to posts (A1/A2) using bolts (HH).
Tighten with allen key (Z1).
Hardware Used
HH
M6 x 15 Sockets bolt
Z1
M6 Socket Head
Allen Key
6.
Attach side beams (D3/D4) to posts (A3/
A4) using bolts (DD), flat washers (BB)
and spring washers (EE). Tighten with
wrench (Z2).
Hardware Used
DD
M6 x 20 Bolt
BB
M6 Flat Washer
Spring Washer
EE
Z2
M6 Wrench
7. Attach the other end of side beams
(D3/D4) to posts (A3/A4) using bolts
(HH). Tighten with allen key (Z1).
Hardware Used
HH
M6 x 15 Sockets bolt
Z1
Allen Key
x 8
x 1
x 4
x 4
x 4
x 1
x 4
x 1
