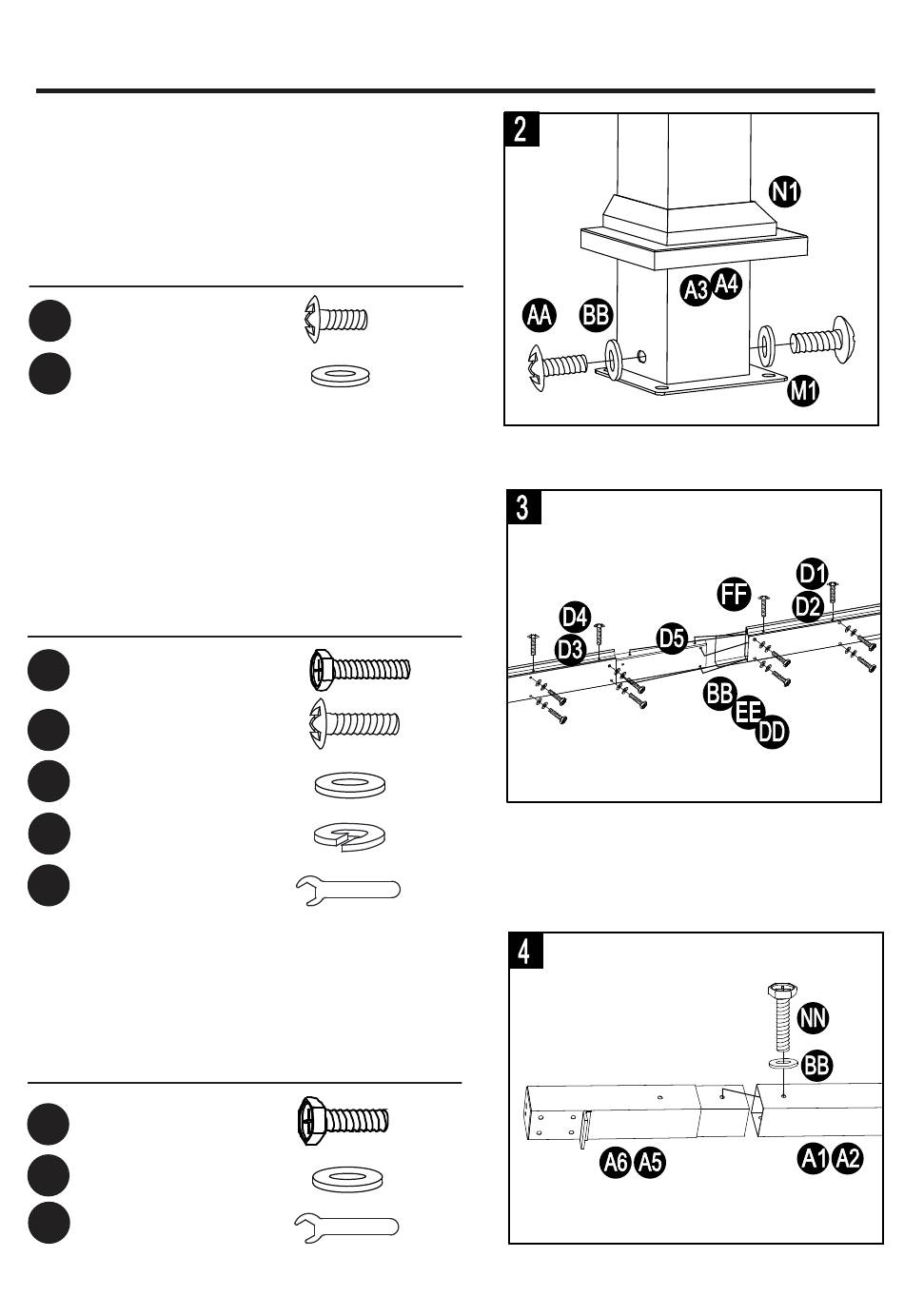

ASSEMBLY INSTRUCTIONS
2. Insert the posts (A3/A4) into the base
cover (N1), and then install the base
(M1) to the bottoms of posts (A3/A4)
using bolts (AA) and washers (BB).
Hardware Used
M6 x 15 Bolt
AA
BB BB M6 Flat Washer
3. Connect the side beams (D1/D2/
D3/D4) with beam connector (D5) using
bolts (DD/FF), washers (BB) and spring
washers (EE). Tighten with wrench (Z2).
Hardware Used
DD
M6 x 20 Bolt
M6 x 20 Bolt
FF
M6 Flat Washer
BB
M6 Spring Washer
EE
M6 Wrench
Z2
4. Insert the posts (A5/A6) into posts (A1/
A2), using bolts (NN), washers (BB).
Tighten with wrench (Z2).
Hardware Used
NN
M6 x 15 Bolt
BB
M6 Flat Washer
Z2
M6 Wrench
x 4
x 4
x 16
x 8
x 16
x 16
x 1
x 2
x 2
x 1
8
