ASSEMBLY INSTRUCTIONS

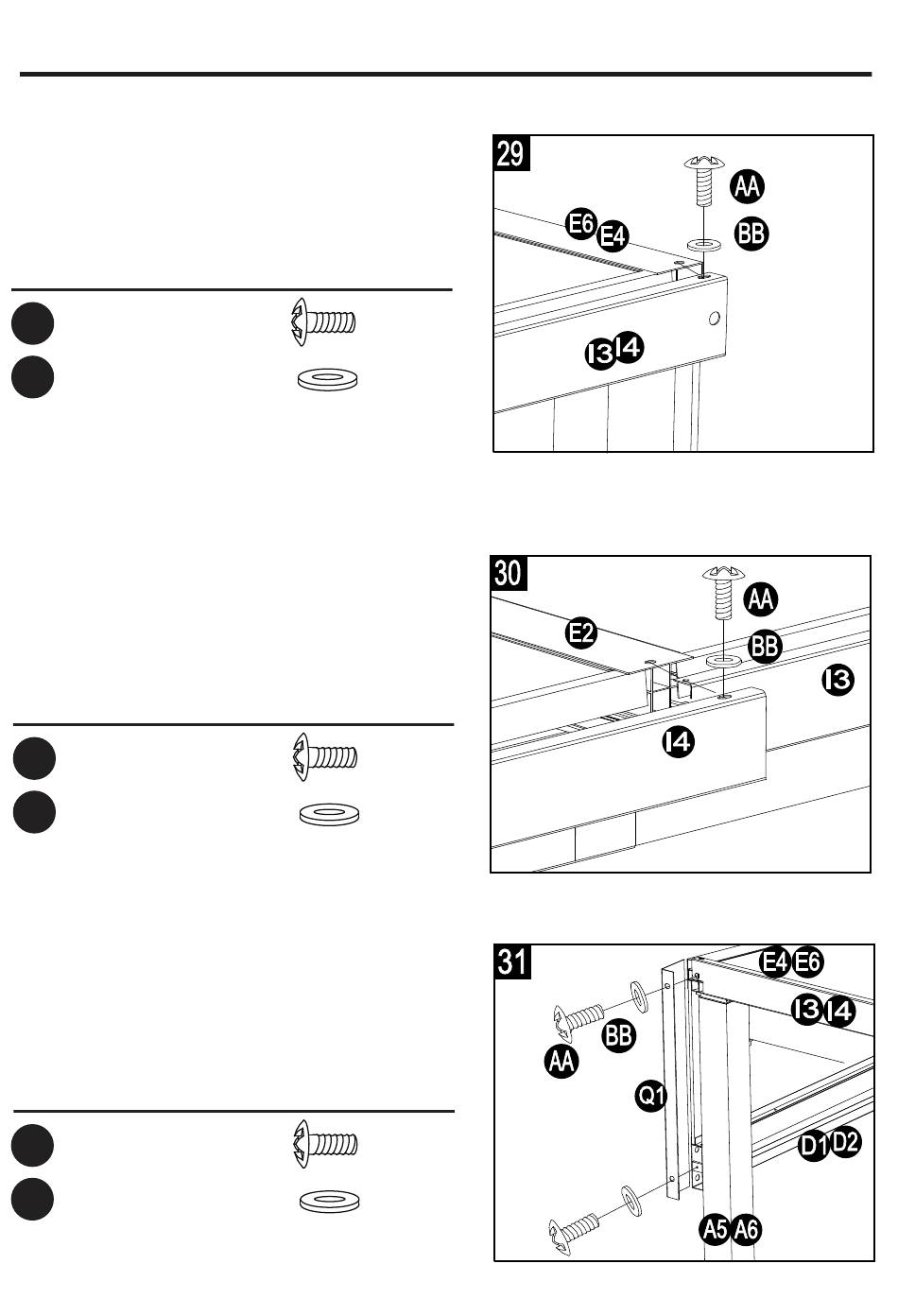

29. Attach decorative railings (I3/I4) to
top side beam (E4/E6) using bolts
(AA) and washers (BB).
Hardware Used
M6 x15 Bolt
AA
BB M6 Flat Washer
30. Attach decorative railings (I3/I4) to
top beam (E2) using bolts (AA) and
washers (BB).
Hardware Used
M6 x15 Bolt
AA
BB M6 Flat Washer
31. Attach L-shaped brackets (Q1) to top
side beams 1/2 (E6/E4) and side
beams 1/2 (D1/D2) using bolts (AA)
and washers (BB).
Hardware Used
M6 x15 Bolt
AA
BB
Flat Washer
BB
x 2
x 2
x 3
x 3
x 4
x 4
