ASSEMBLY INSTRUCTIONS

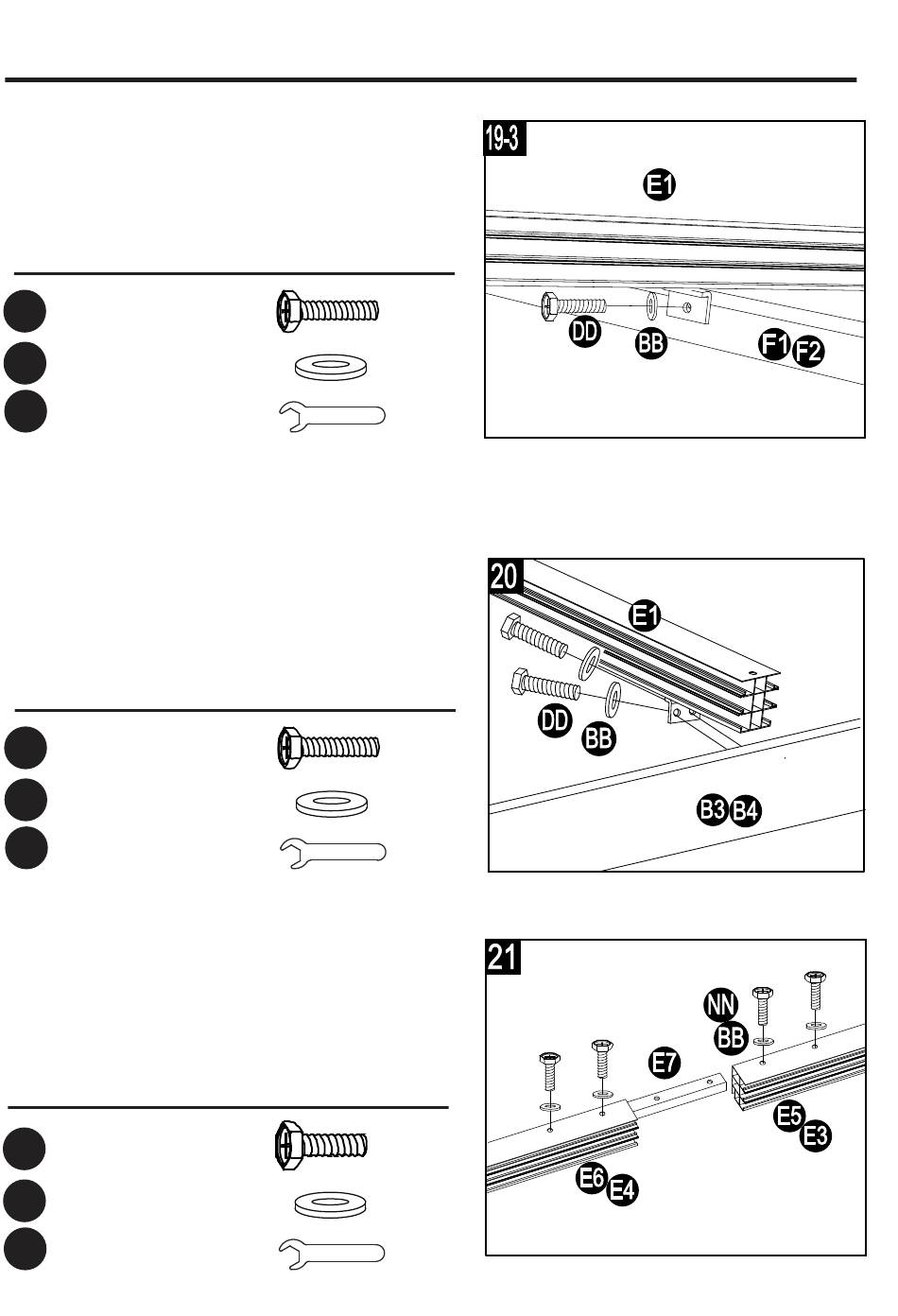

19-3. Attach top beam (E1) to support
beams (F1/F2) using bolts (DD)
and flat washers (BB). Tighten with
wrench (Z2).
Hardware Used
DD
M6 x 20 Bolt
BB
M6 Flat Washer
Z2
M6 Wrench
20. Attach top beam (E1) to front beam
(B3/B4) using bolts (DD) and flat
washers (BB). Tighten with wrench
(Z2).
Hardware Used
DD
M6 x 20 Bolt
BB
M6 Flat Washer
Z2
M6 Wrench
21. Connect top side beams (E4/E6) to rear
beam top side beams (E3/E5) with beam
connector (E7), using bolts (NN) and flat
washers (BB). Tighten with wrench (Z2).
Hardware Used
NN M6 x 15 Bolt
BB
M6 Flat Washer
Z2
M6 Wrench
x 2
x2
x 1
x 6
x 6
x 1
x 8
x 8
x 1
