ASSEMBLY INSTRUCTIONS

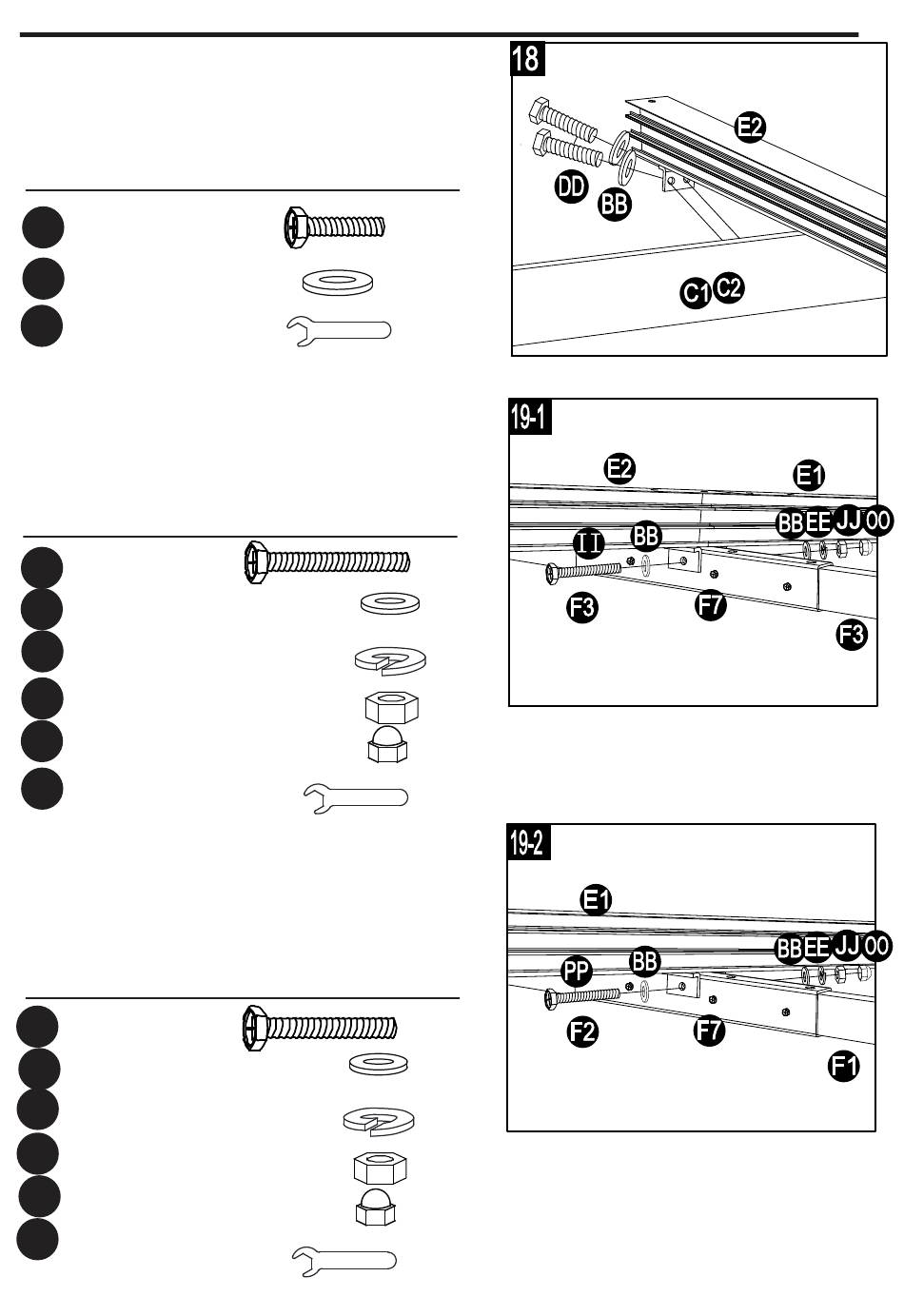

18. Attach top beam (E2) to rear beams
(C1/C2) using bolts (DD) and flat
washers (BB). Tighten with wrench (Z2).
Hardware Used
DD
M6 x 20 Bolt
BB
M6 Flat Washer
Z2
M6 Wrench
19-1. Attach top beam (E1/E2) to support
beams (F3) using bolts (II), flat
washers (BB), spring washers
(EE), nuts (JJ) and cap (OO).
Tighten with wrench (Z2).
Hardware Used
M6 x55 Bolt
I I
BB
M6 Flat Washer
EE
Spring Washer
JJ
M6
Nut
OO
M6 Plastics Cap
Z2
M6 Wrench
19-2. Attach top beam (E1) to support
beams 1/2 (F1/F2) using bolts (PP),
flat washers (BB), spring washers
(EE), nuts (JJ) and cap (OO).Tighten
with wrench (Z2).
Hardware Used
M6 x50 Bolt
PP
BB
M6 Flat Washer
EE
Spring Washer
JJ
M6 Nut
OO
M6 Plastics Cap
Z2
M6 Wrench
x 6
x 6
x 1
x 3
x 6
x 3
x 3
x 3
x 2
x 1
x 2
x 1
x 1
x 1
x 2
15
