ASSEMBLY INSTRUCTIONS

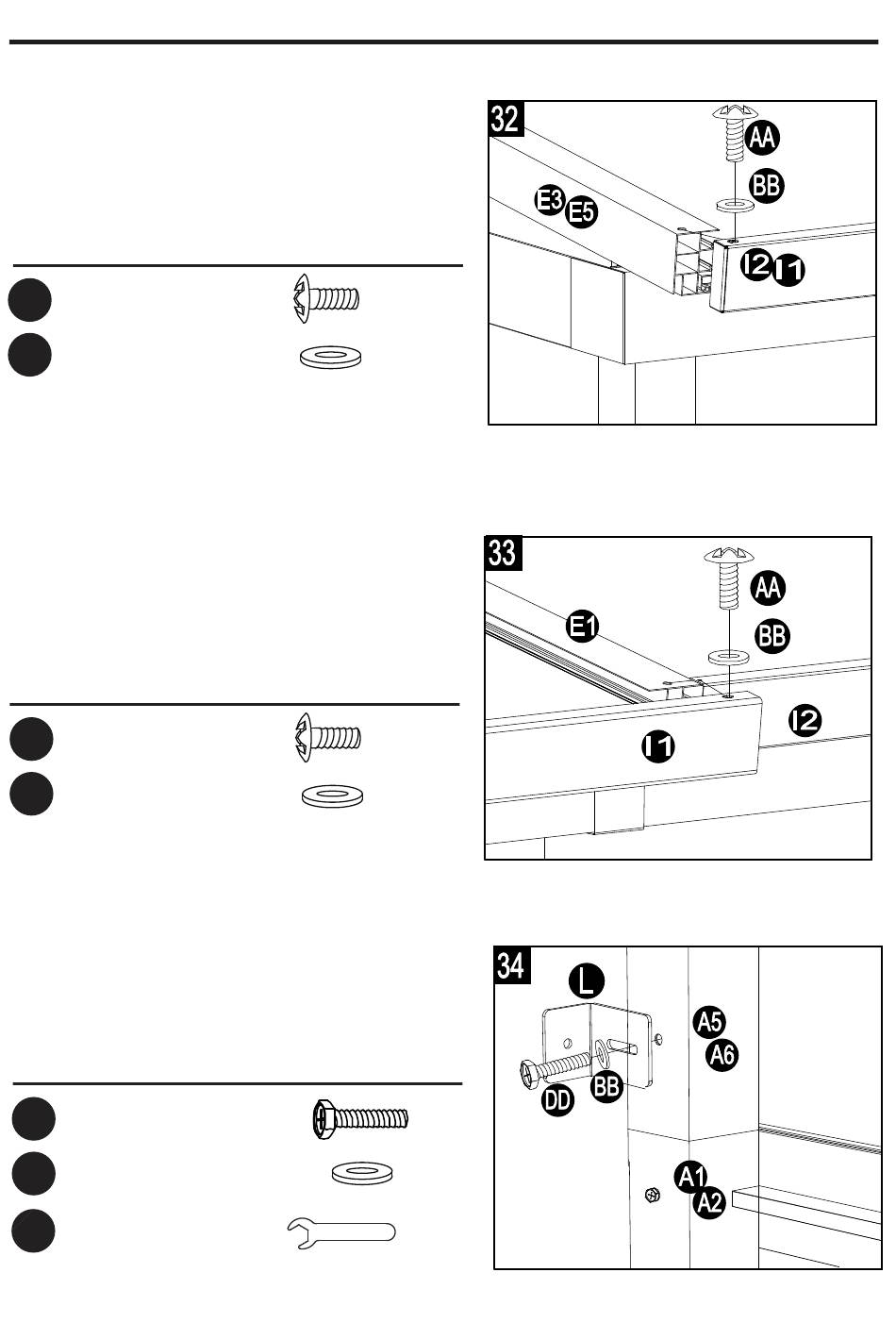

32. Attach decorative railings (I1/I2) to
top beams (E3/E5) using bolts
(AA) and washers (BB).
Hardware Used
M6 x 15 Bolt
AA
BB
M6 Flat Washer
33. Attach decorative railings (I1/I2) to
top beam (E1) using bolts (AA) and
washers (BB).
Hardware Used
M6 x 15 Bolt
AA
BB M6 Flat Washer
34. Attach wall mount sheets (L) to posts
(A1/A2) using bolts (DD) and washers
(BB). Tighten with wrench (Z2).
Hardware Used
DD M6 x 20 Bolt
BB M6 Flat Washer
Z2
M6 Wrench
x 2
x 2
x 3
x 3
x 4
x 4
x 1
