ASSEMBLY INSTRUCTIONS

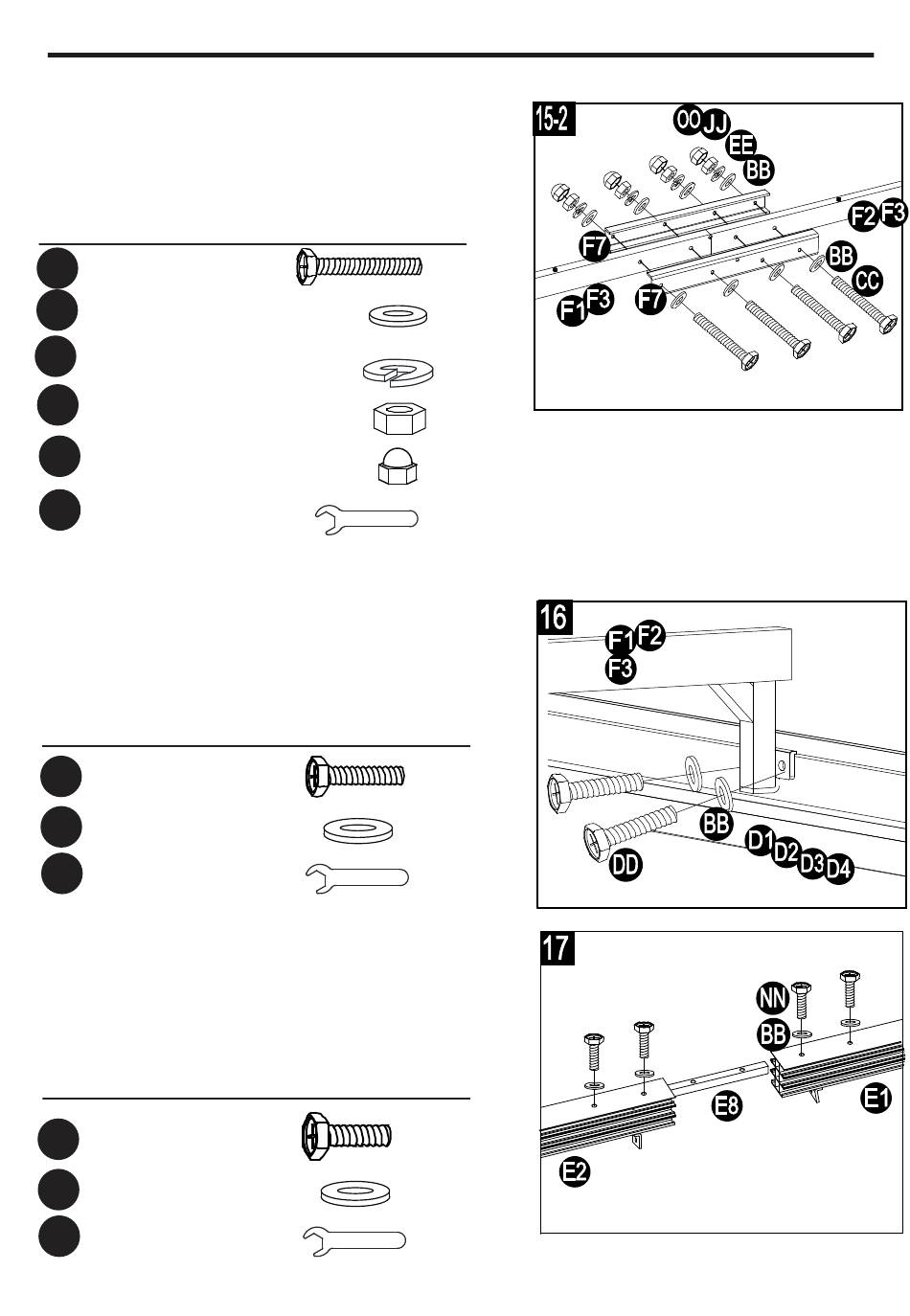

15-2. Connect support beams (F1/F2/
F3) with beam connector (F7) using
bolts (CC), flat washers (BB) , spring
washers (EE) ,nuts (JJ)and cap
(OO).Tighten with wrench (Z2).
Hardware Used
M6 x45 Bolt
CC
BB
M6 Flat Washer
EE
Spring Washer
JJ
M6 Nut
OO
M6 Plastics Cap
Z2
M6 Wrench
16. Attach support beams (F1/F2/F3) to
side beam (D1/D2/D3/D4) using bolts
(DD) and flat washers (BB). Tighten
with wrench (Z2).
Hardware Used
DD
M6 x 20 Bolt
BB
M6 Flat Washer
Z2
M6 Wrench
Connect top beams (E1)
17.
(E2) with beam connector (E8), using
bolts (NN) and flat washers (BB). Tighten
with wrench (Z2).
Hardware Used
NN
M6 x 15 Bolt
BB
M6 Flat Washer
Z2
M6 Wrench
x 8
x 16
x 8
x 8
x 8
x 2
x 8
x 8
x 1
to top beams
x 12
x 12
x 1
14
