ASSEMBLY INSTRUCTIONS

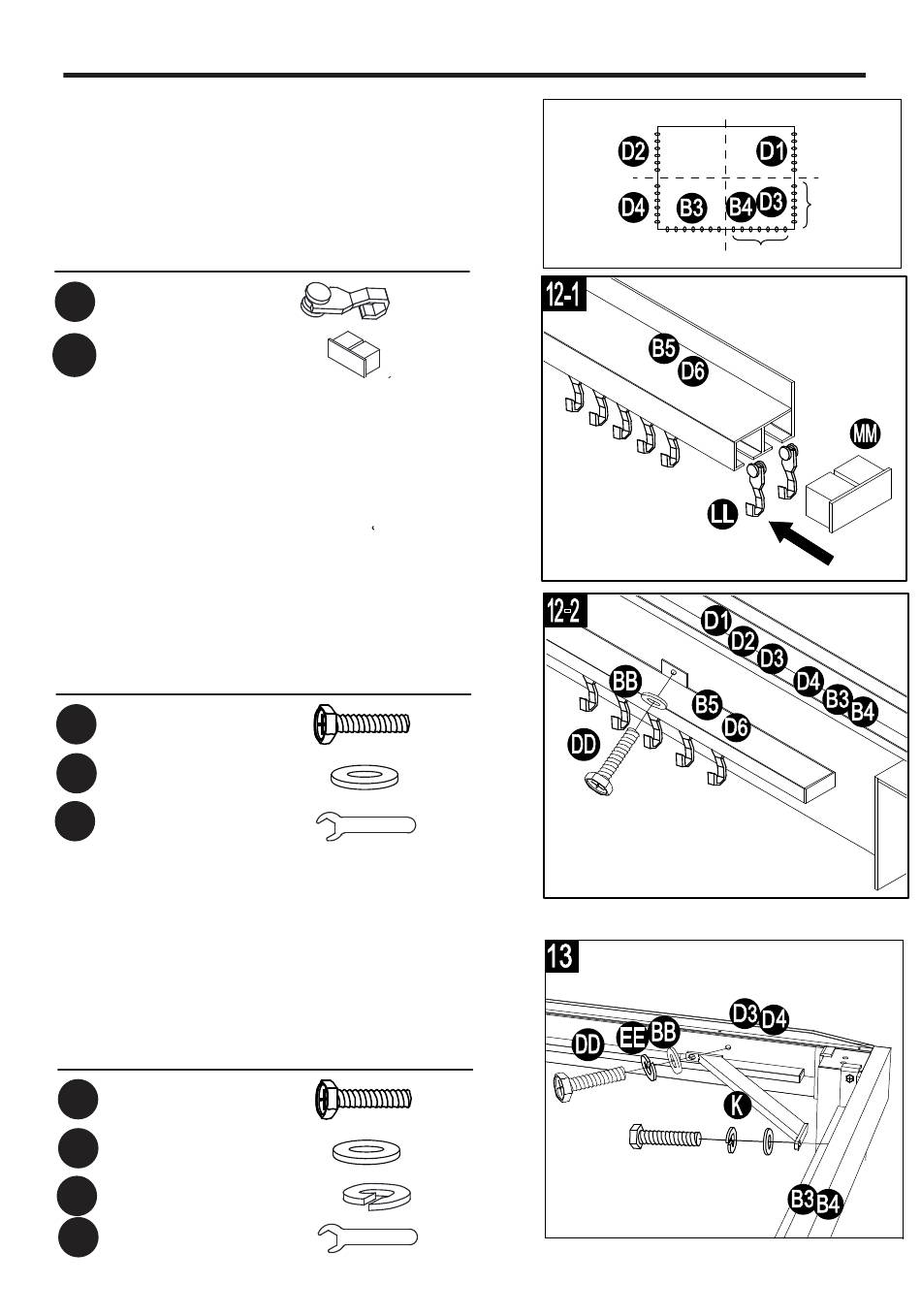

12-1. Insert hooks (LL) into the beams (B5/D6)
as shown, then attach plastic caps (MM)
to one end of each side beams (B5/D6).
Hardware Used
LL
Hook
Plastics Stopper
MM
12-2.
Attach beams (B5/D6) to beams (D1/
D2/D3/D4/B3/B4) using bolts (DD), flat
washers (BB) . Tighten with wrench
(Z2).
Hardware Used
DD
M6 x 20 Bolt
BB
M6 Flat Washer
Z2
M6 Wrench
13. Attach support bar (K) to side beam 1/3
(D3/D4) and front beam 1/2 (B3/B4) using
bolts (DD), flat washers (BB) and spring
washers (EE). Tighten with wrench (Z2).
Hardware Used
DD
M6 x 20 Bolt
BB
M6 Flat Washer
Spring Washer
EE
W6 Wrench
Z2
x 76
x 6
x 12
x 12
x 1
x 4
x 4
x 4
x 1
12
6x
7x
